Z70 v2 Color capacitive touch panel with 7" display.
€913,98 Incl. tax €1.171,77 Incl. tax. In stock (1)
Specifications
Information
For more and other downloads, click here.
Zennio Z70 v2 – Advanced 7" Touch Panel
The Zennio Z70 v2 is a premium capacitive touch panel with a 7" color display, designed for Smart Home and hotel applications. It offers up to 56 control windows and combines intelligent features with a minimalist design.
Main Features
- 7" full-color capacitive touch display (1280x800 pixels)
- Support for up to 56 control windows
- Internal temperature sensor with 0.1 °C resolution
- 2 independent thermostats
- Proximity and brightness sensors
- 4 analog/digital inputs
- Speakers for acoustic notifications
- Optional features via licenses:
- Remote control via app or browser
- Voice control
- Video intercom and internal calls
- Full data retention during KNX bus failure
- Ethernet and USB connections for updates and additional functionality

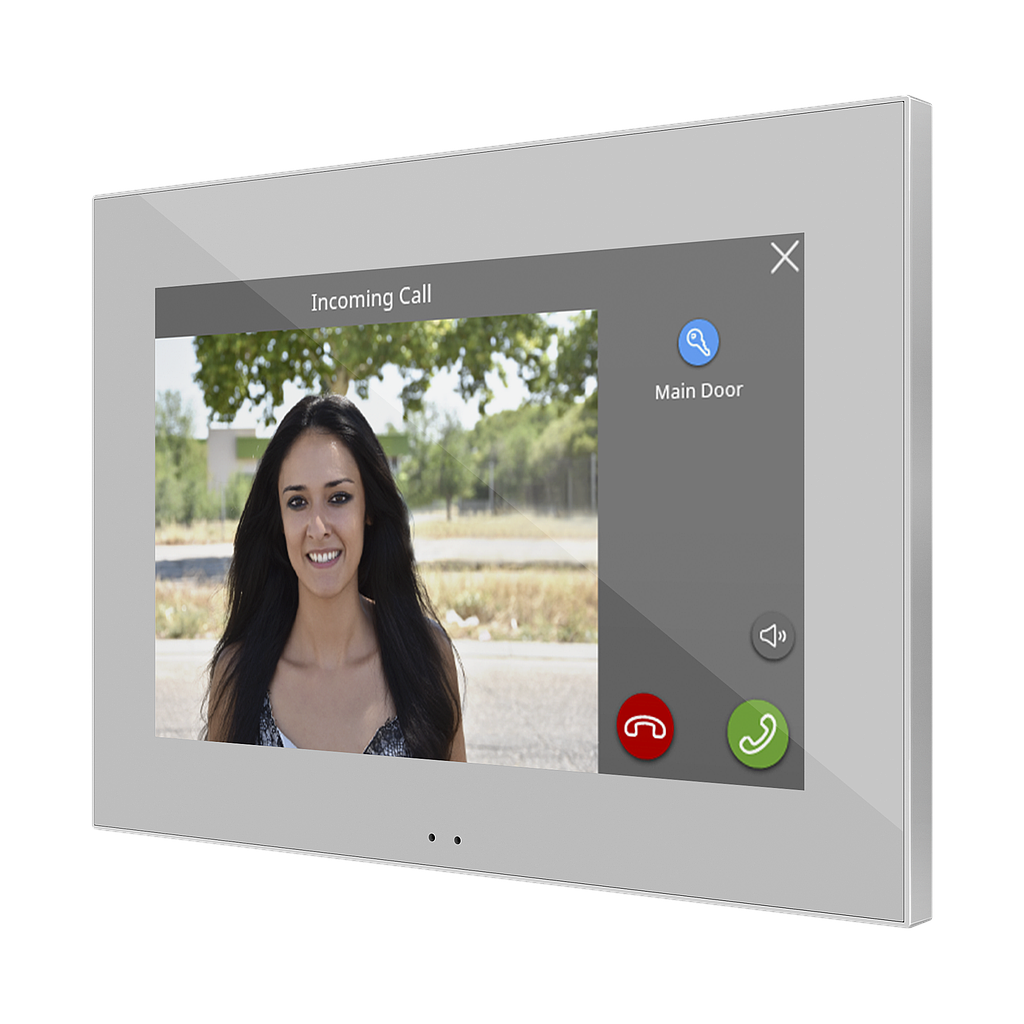

- Compatible with video intercom systems and IP cameras
Technical Specifications
| Specification | Details |
|---|---|
| Power Supply | 24-29 VDC, maximum 375 mA (24 VDC) |
| Dimensions | 189 x 137 x 37 mm (11.8 mm wall protrusion) |
| Protection Class | IP20, suitable for clean environments |
| Temperature Range | -10°C to +50°C (operation), -20°C to +55°C (storage) |
| Installation | Flush mount in European or British standard double back box |
| KNX Bus | Fully integrated with TP1-256, data recovery after failure |
| Additional Inputs | 4 analog/digital inputs, compatible with dry contacts |
Compatibility and Expandability
The Z70 v2 supports extensions through optional licenses:
- Remote Control: Manage the panel via a mobile app or web browser
- Voice Control: Integration with ZenVoice for easy commands
- Video Intercom: Compatible with P2P SIP, H264, and other standards
Installation Instructions
- Secure the metal plate into a double back box using the provided screws, ensuring it is level.
- Connect the KNX bus, Ethernet, power supply, and input terminals to the back of the device.
- Attach the panel to the mounting plate and verify that it is firmly secured.
Important Note
The internal temperature sensor requires an airtight installation to ensure accurate readings. Use appropriate materials such as silicone seals or polyurethane foam to seal the back box.
