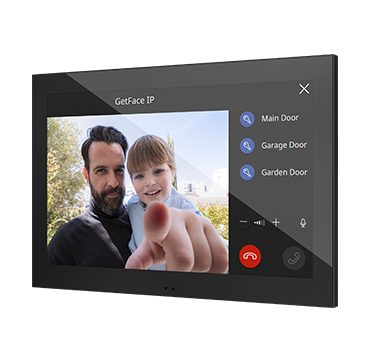

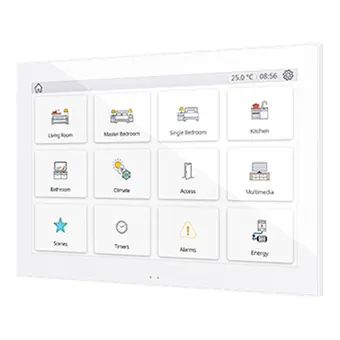

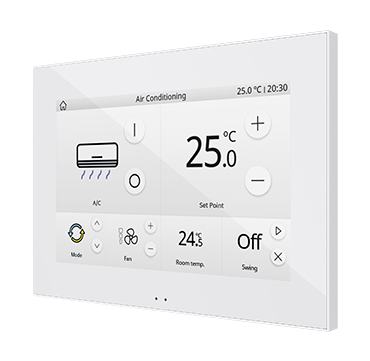

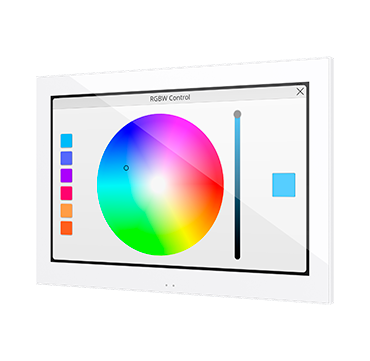

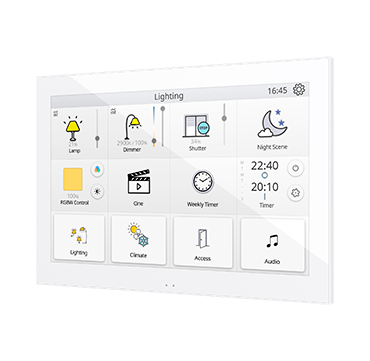

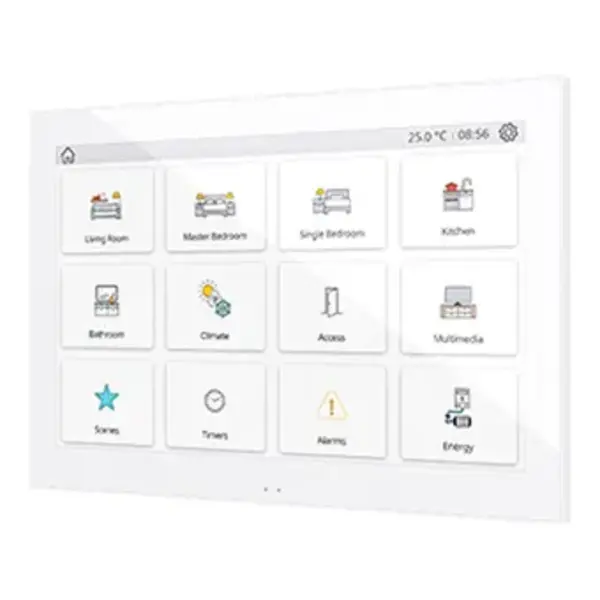

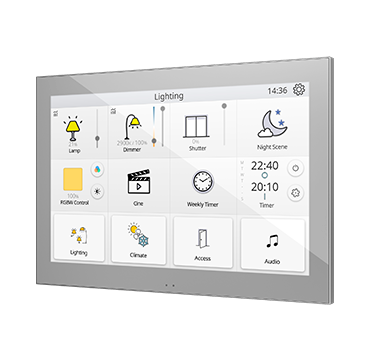

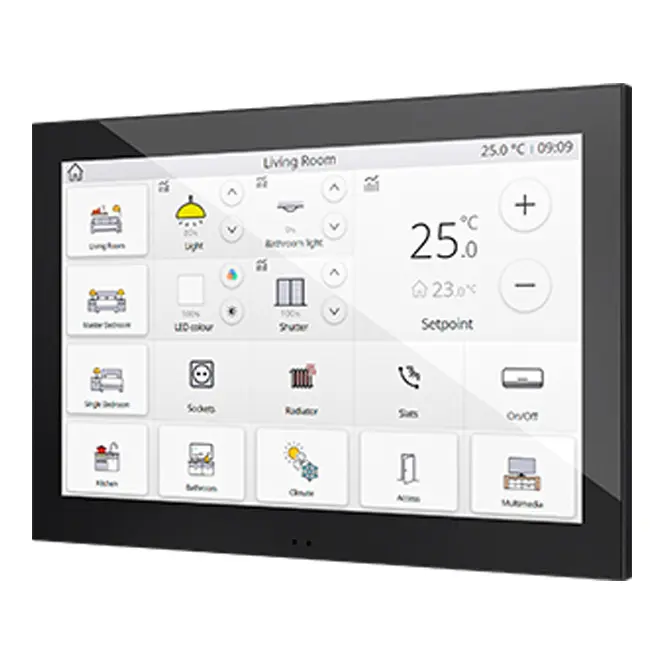

Zennio Z100 KNX Touch Panel

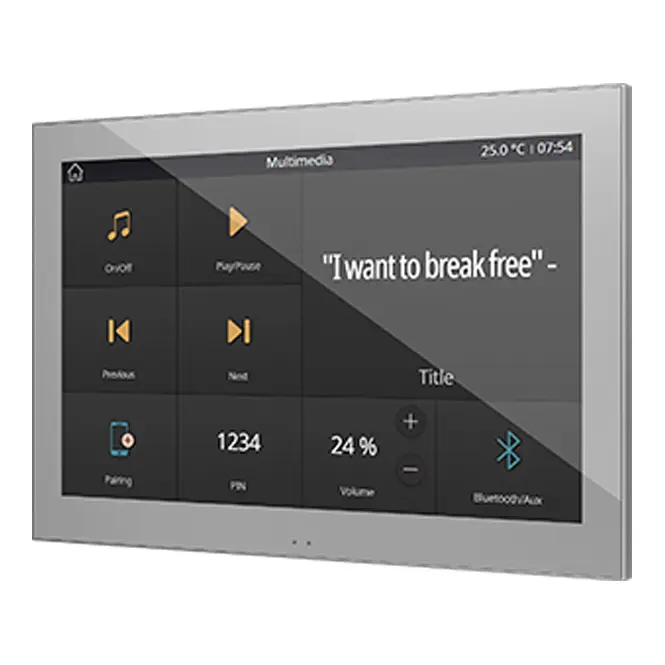

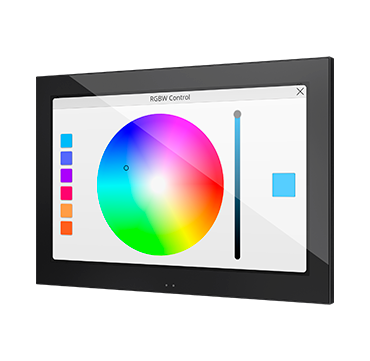

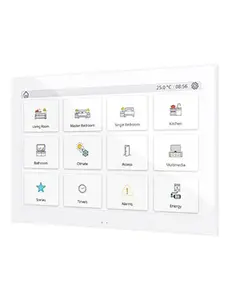

The Zennio Z100 is a modern capacitive 10-inch touch panel designed for comprehensive control of homes, hotels, and commercial installations. The panel features a resolution of 1280×800 pixels, supports 16 million colors, and offers 12 fully customizable pages with multiple controls per window. Its sleek and timeless design makes it suitable for any modern installation.

Key Features

• 10" capacitive LCD touch panel with 16 million colors
• Resolution: 1280×800 pixels
• 12 pages with multiple controls per window
• Available in white (RAL 9016), black (RAL 9004), and silver (RAL 9006)
• Proximity and light sensors for automatic brightness adjustment
• Integrated speakers for acoustic notifications
• 2 independent thermostats for climate control
• 4 analog/digital inputs
• Fully integrated KNX BCU (TP1-256)
• USB and Ethernet ports for connectivity and firmware updates

Technical Specifications

• Power Supply: External 24-29 VDC
• KNX Power Supply:
  • Voltage: 29 VDC (typical), range: 21-31 VDC
  • Maximum consumption: 5.5 mA (29 VDC), 10 mA (24 VDC)
• Dimensions: 248.9 x 174 x 39.2 mm (protrusion: 11.8 mm)
• Mounting: Flush-mounted in double European or British backbox
• Protection Class: IP20 (indoor use only)
• Operating Temperature: 5 to +45 °C
• Storage Temperature: -20 to +55 °C
• Relative Humidity: 5% - 95% (non-condensing)
• Weight: 693 g
• Cable Connections:
  • Screw terminals (0.2-1 mm², max. 0.3 Nm)
  • Ethernet: RJ-45 port
  • Micro-USB Type B for firmware updates
• Inputs:
  • Number: 4 analog/digital inputs
  • Operating voltage: +3.3 VDC
  • Operating current: 1 mA per input
  • Maximum cable length: 30 m
  • Switching type: Dry contacts
• Video and Audio Compatibility:
  • Video: H264 and MJPEG
  • Audio: G722, G721, G711u (PCMU)
  • Protocols: SIP, P2P
• Data Management: Data is saved and recovered after KNX bus failures.

Optional Licenses

For advanced functionality, the following licenses can be added:

• Remote Control: Control the touch panel via a mobile app or web browser (Ref. ZLIC70RCBX)
• Video Intercom: Integration with SIP-based video intercom systems (Ref. ZLIC70VPBX)
• Voice Control: ZenVoice license requires remote control (Ref. ZLICZVBX)

Additional Accessories

• External temperature sensors for precise readings
• Motion sensors for automatic activation

Important Notes

The Zennio Z100 ensures complete data storage and recovery in case of KNX bus failures. The device supports firmware updates via the micro-USB port and requires a stable external power supply of 24-29 VDC. Configuration and license activation are managed through the Zennio License Manager.

With its versatile features, advanced technology, and timeless aesthetics, the Zennio Z100 is an excellent choice for complex automation projects in residential and commercial environments.
