Flat 70 X4 | 4-gang | Glass capacitive push button 70 x 70
€137,63 Incl. tax €176,45 Incl. tax. Out of stock, but available
Specifications
Information

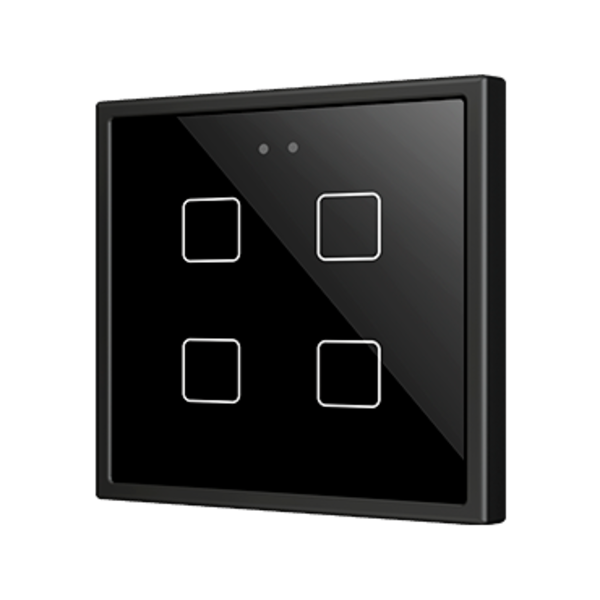

Zennio Flat 70 Capacitive Glass Touch Sensor - 4-Gang
The Zennio Flat 70 is a capacitive touch sensor with a sleek 70x70 mm glass panel, featuring 4 touch buttons, customizable backlighting, and an integrated proximity sensor. The sensor includes a built-in thermostat, temperature, and light sensors, and is fully compatible with KNX Secure.
Features
- Capacitive glass touch panel (70x70 mm)
- Customizable, backlit touch zones
- Proximity sensor for adaptive illumination
- Integrated temperature and light sensors
- Thermostat functionality
- 2 analog/digital inputs
- KNX Secure compatibility
- Available in silver, anthracite black, and white
- Flush mount installation
Technical Specifications
Power Supply: 29 VDC KNX Bus
Operating Temperature: 0°C to +55°C
Storage Temperature: -20°C to +55°C
Humidity: 5% to 95% (non-condensing)
Protection Class: IP20
Dimensions: 70.5 x 70.5 x 21.6 mm
Weight: 142 g
Installation: Flush mount on back box

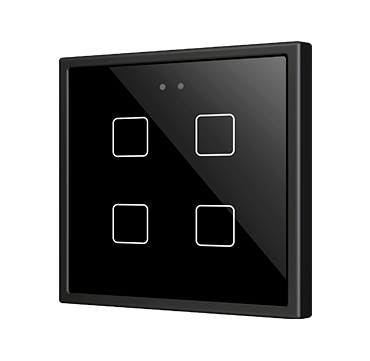

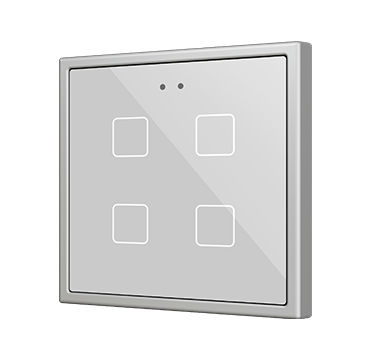

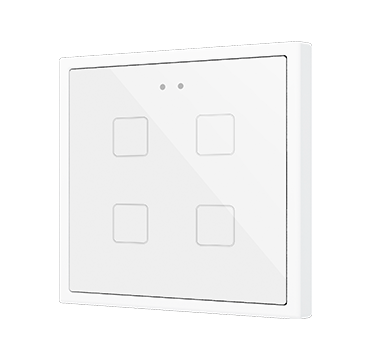

Available Colors
The Flat 70 capacitive glass touch sensor is available in silver (RAL 9006), anthracite black (RAL 9004), and white (RAL 9016). Full customization with printed design is possible.
