Tastsensor Flat | 6-gang | Backlit capacitive touch switch
€161,28 Incl. tax €206,77 Incl. tax. Out of stock, but available
Specifications
Information

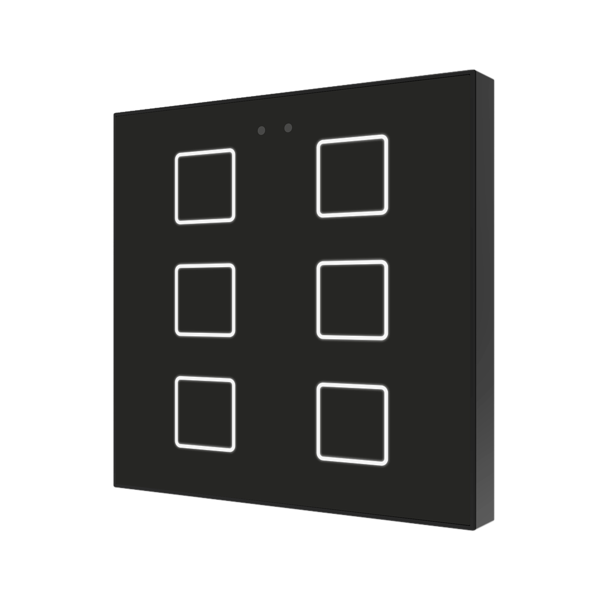

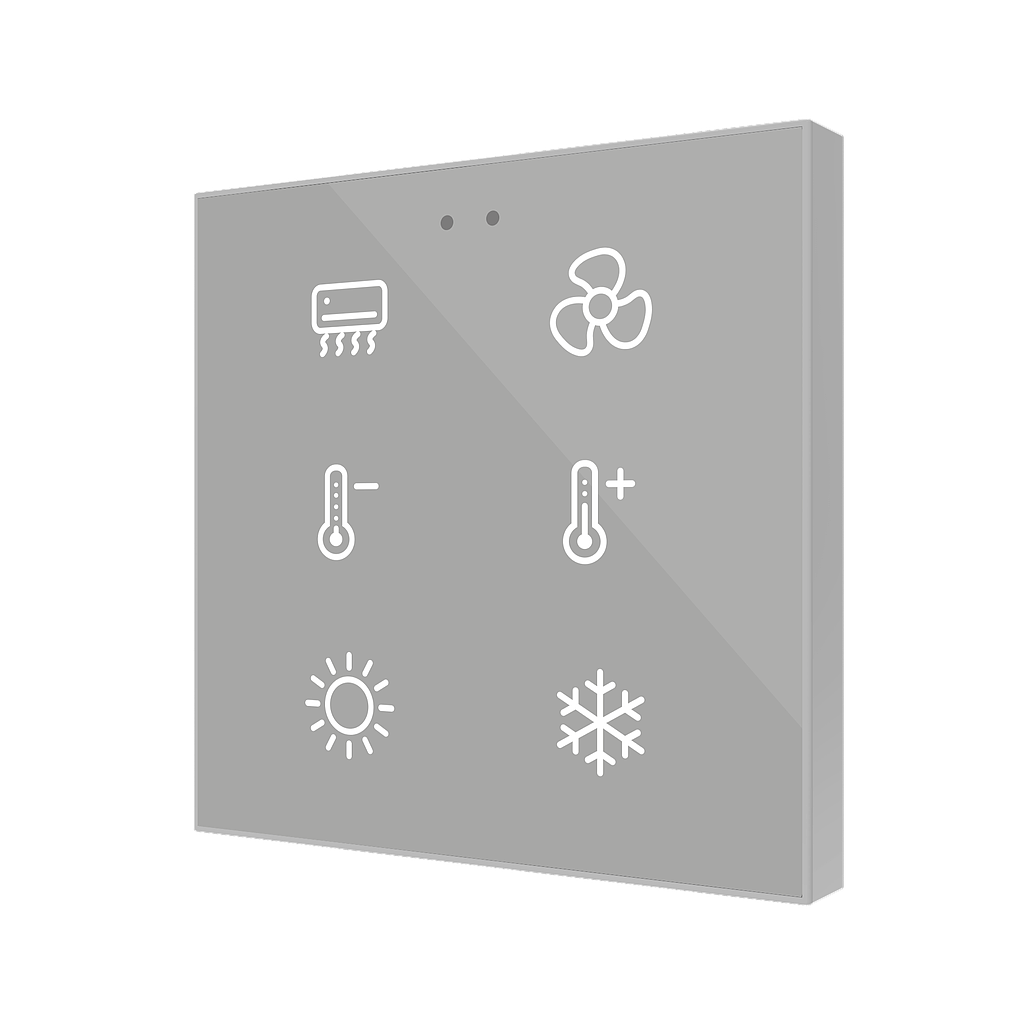

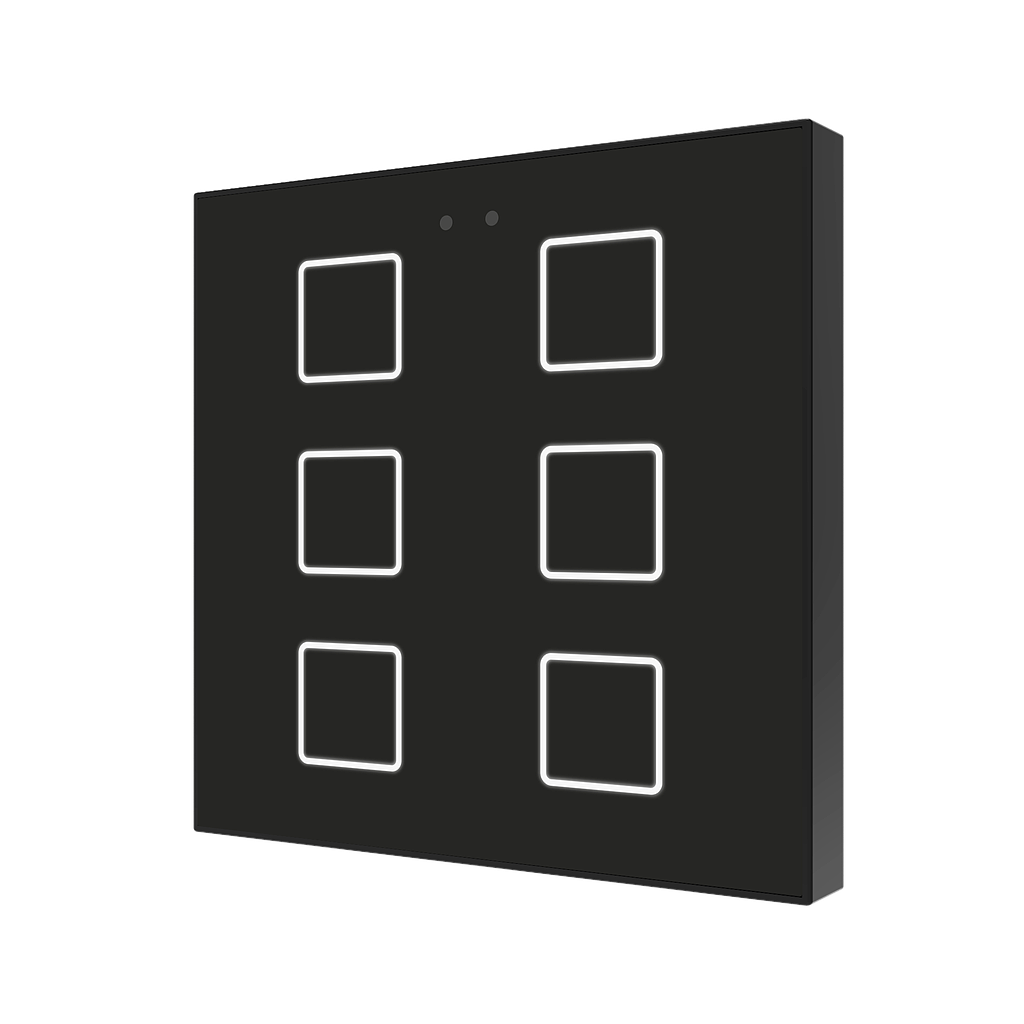

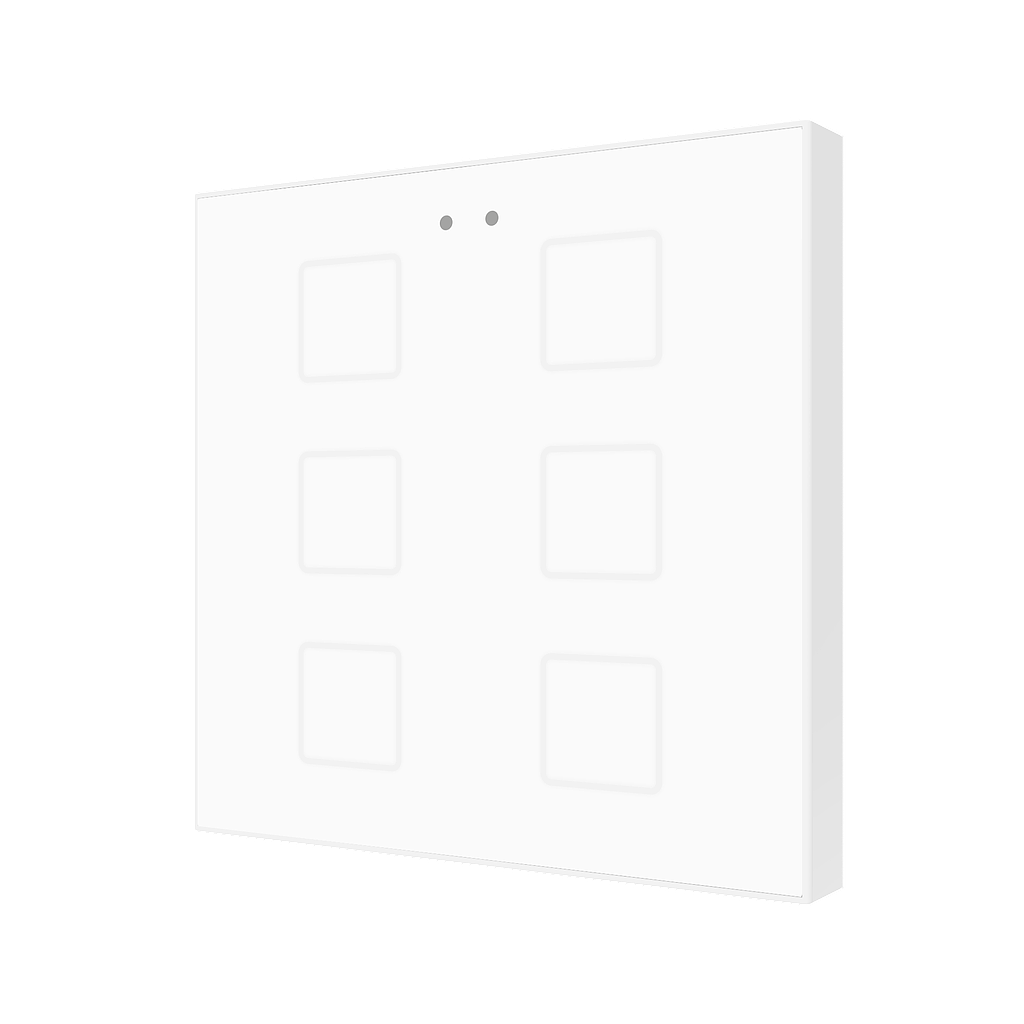

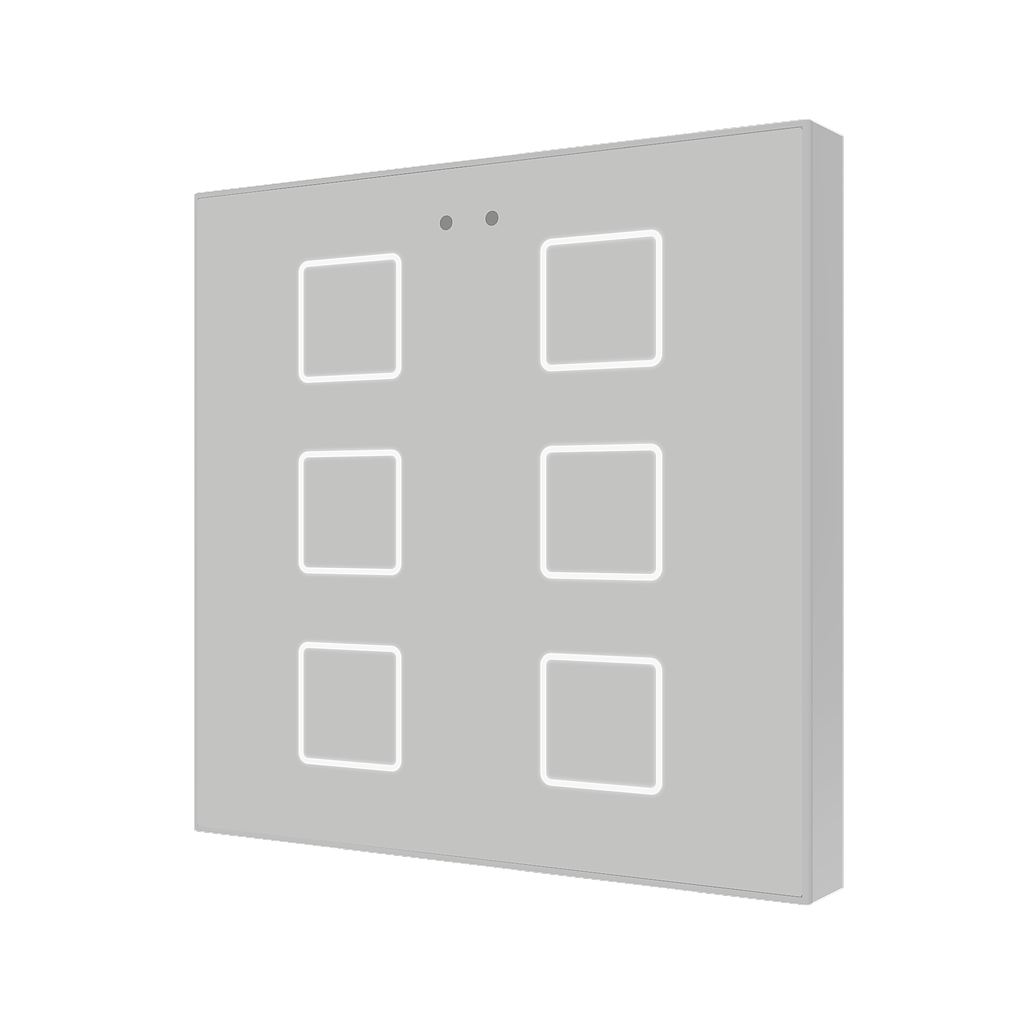

Zennio Flat 6-Fold Capacitive Touch Switch v2
The Zennio Flat 6-fold capacitive touch switch v2 provides an innovative solution for home and building automation. Featuring a sleek, customizable tempered glass design (only 9 mm thick) and advanced technologies such as a proximity sensor, temperature measurement, and motion detection, this device combines aesthetics with functionality.
Main Features
- 6 touch-sensitive buttons with backlighting
- Customizable tempered glass design with options to print images, icons, text, or logos
- Integrated proximity sensor for automatic lighting
- Built-in temperature and motion sensors
- Thermostat function for climate control
- 2 configurable analog/digital inputs (binary inputs, sensors, push buttons, etc.)
- Complete data retention during KNX bus failures
- Compatible with KNX systems
- Available in white, black, silver, or fully customized
Technical Specifications
| Device Type | Electrical control device |
|---|---|
| KNX Voltage | 29 VDC (typical), range: 21-31 VDC |
| Maximum Power Consumption | 504.6 mW (29 VDC) |
| Operating Temperature | 0 .. +55 °C |
| Storage Temperature | -20 .. +55 °C |
| Protection Class | IP20 (for clean environments) |
| Dimensions | 81.9 x 81.9 x 36.7 mm (protrudes 9 mm from the wall) |
| Installation | Flush mount in standard back boxes |
Accessories
Optional accessories include an external temperature sensor and a motion detector, which can be seamlessly integrated with the switch.
Notes
Note: The accuracy of the internal temperature measurement may slightly decrease when the backlight is permanently on.
