Square TMD 6 | 6-gang touch sensor with temperature probe

Name: Zennio Square TMD 6 | 6-gang touch sensor with temperature probe
Brand: Zennio
Price: 133.29 EUR
Availability: OutOfStock
Rating: 0 (0 reviews)

0 Review(s)

€133,29 Excl. tax €170,89 Excl. tax
€161,28 Incl. tax €206,77 Incl. tax. Out of stock, but available

Unit price: €133,29 / Piece

The Square TMD belongs to the Square TMD series and is a capacitive touch sensor with 6 controls, backlighting, thermostat, and temperature sensor. Available in various colors and customizable design. Read more

Specifications

Brand:

Zennio

Article number:

ZVI-SQTMD6-A

EAN:

8411080800305

Availability:

Out of stock, but available

Delivery time:

Will be shipped within approximately 8 working days.

Information

Datasheet

Manual

Zennio Square TMD | Touch-MyDesign with Temperature Sensor - 6-fold

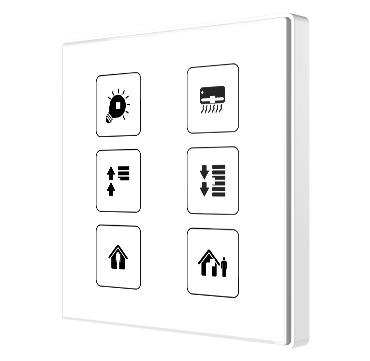

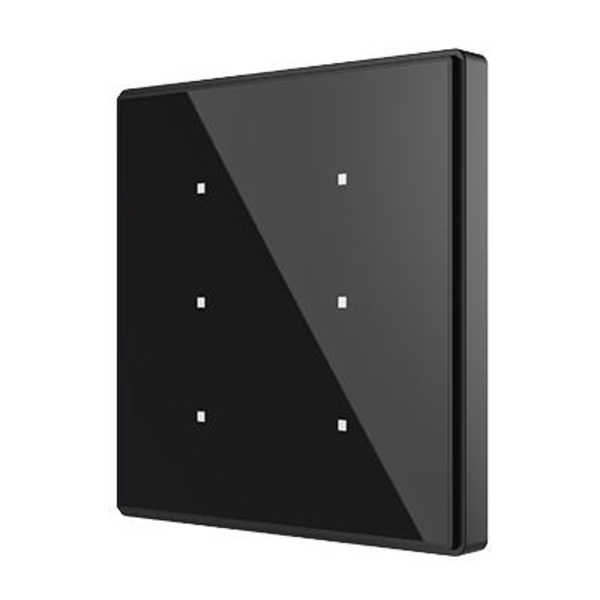

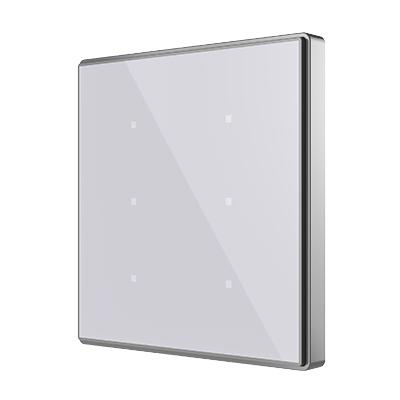

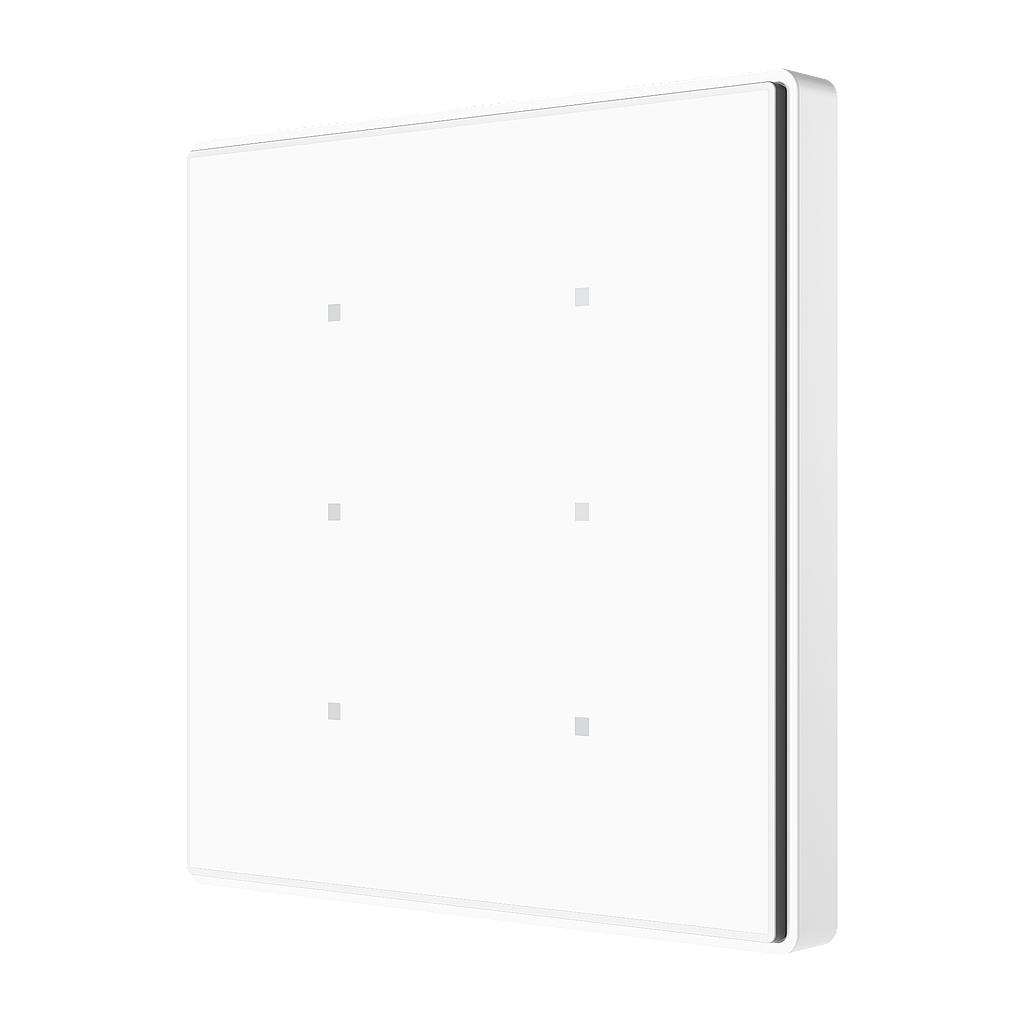

The Zennio Square TMD is a fully customizable capacitive KNX switch with six multifunctional touch buttons. With its high-quality tempered glass and sleek design, this switch seamlessly fits into any modern interior.

Main Features:

6 capacitive touch buttons with individually configurable functions
Fully customizable glass finish with icons, text, or logos
Integrated thermostat and internal temperature sensor
LED status indicators with adjustable brightness
2 analog/digital inputs for additional switches or sensors
No additional power supply required (powered via KNX bus)
Secure magnetic mounting with locking mechanism
Data retention in case of power failure

Technical Specifications:

Power supply (KNX)	21-31V DC (typical 29V)
Power consumption	Max. 6mA (29V DC)
Installation	Horizontal or vertical
Temperature range	-10°C to +50°C
Protection class	IP20 (for dry indoor environments)
Weight	134g
Material	Tempered glass and polycarbonate
