Square TMD 4 | 4-gang touch sensor with temperature probe
€149,46 Incl. tax €191,61 Incl. tax. Out of stock, but available
Specifications
Information
Zennio Square TMD - 4-fold Capacitive Touch Sensor
Product Description:
This product belongs to the Square TMD series. The Zennio Square TMD is a capacitive touch sensor with 4 controls and a modern, flat design. This innovative KNX device is fully customizable and available in various colors. The built-in thermostat and temperature sensor provide additional climate control functionality. Installation can be done both horizontally and vertically.
Features
- 4 capacitive touch buttons
- Backlight for touch zones
- Built-in thermostat and temperature sensor
- Fully customizable design
- 2 analog/digital inputs for additional switches or sensors
- Storage of settings in case of KNX bus failure
- Magnetic mounting with security mechanism
Technical Specifications
| Power Supply | 21-31 VDC (KNX TP1-256) |
|---|---|
| Power Consumption | Maximum 240 mW |
| Operating Temperature | 5 .. +40 °C |
| Dimensions | 120 x 82 x 37 mm |
| Protection Class | IP20 (Indoor Use) |
| Installation | Horizontal or vertical |
| Response Time | Maximum 10ms (OFF → ON, ON → OFF) |
Available Colors

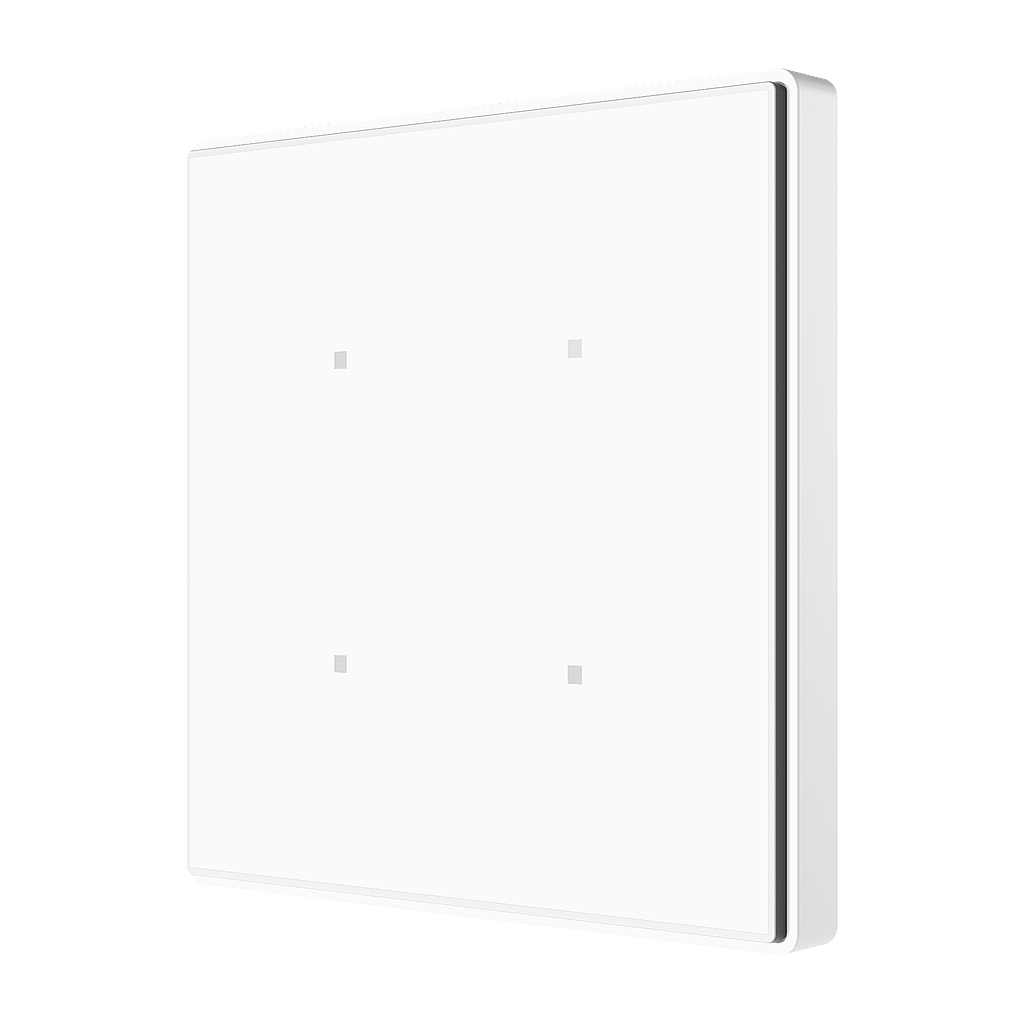

- White

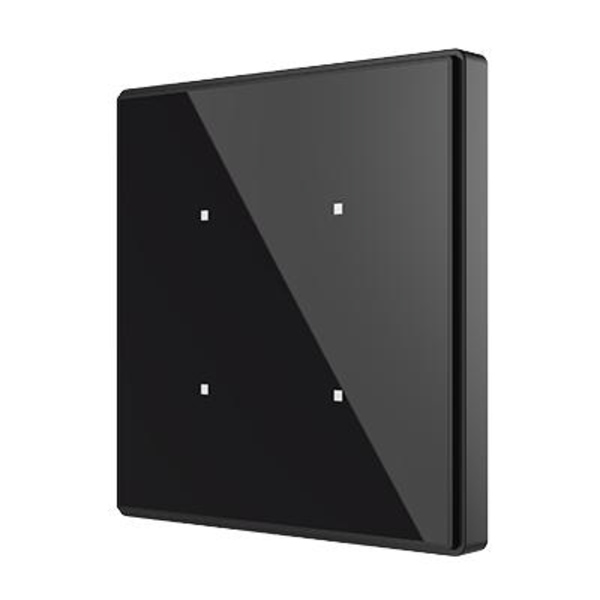

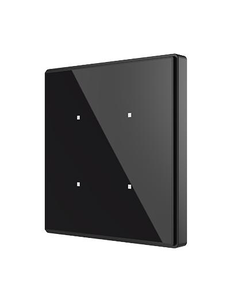

- Black

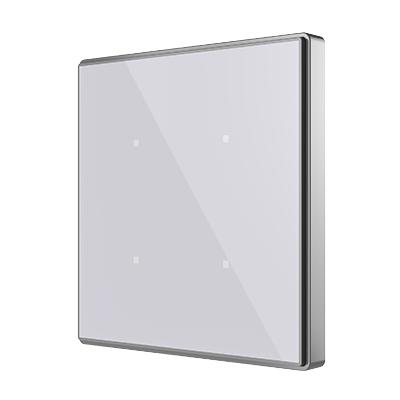

- Silver

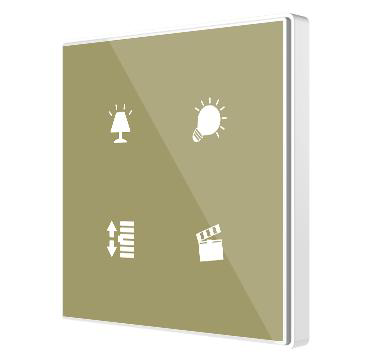

- Custom design on request
Certification
- CE
Available Accessories
- External temperature sensor
