Square TMD 2 | 2-gang touch sensor with temperature probe
€137,63 Incl. tax €176,45 Incl. tax. Out of stock, but available
Specifications
Information
Zennio Square TMD - 2-gang Capacitive Touch Sensor
Product Description:
This product belongs to the Square TMD series. The Zennio Square TMD is a capacitive touch sensor with 2 controls and a modern flat design. This innovative KNX device is fully customizable and available in various colors. The built-in thermostat and temperature sensor provide additional functionality for climate management. It can be mounted horizontally or vertically.
Features
- 2 capacitive touch buttons
- Backlighting for touch areas
- Built-in thermostat and temperature sensor

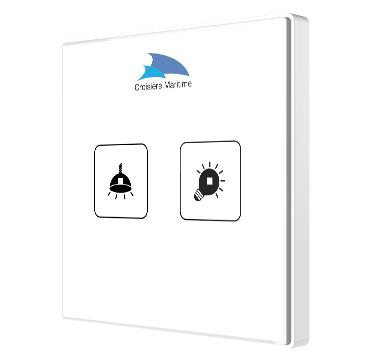

- Fully customizable design
- 2 analog-digital inputs for additional switches or sensors
- Data storage in case of KNX bus failure
- Magnetic mounting with security mechanism
Technical Specifications
| Power Supply | 21-31 VDC (KNX TP1-256) |
|---|---|
| Power Consumption | Maximum 240 mW |
| Operating Temperature | 5 .. +40 °C |
| Dimensions | 120 x 82 x 37 mm |
| Protection Class | IP20 (Indoor use) |
| Mounting | Horizontal or vertical |
| Response Time | Maximum 10ms (OFF → ON, ON → OFF) |
Available Colors
- White
- Black
- Silver
- Custom design available on request
Certifications
- CE
Available Accessories
- External temperature sensor
