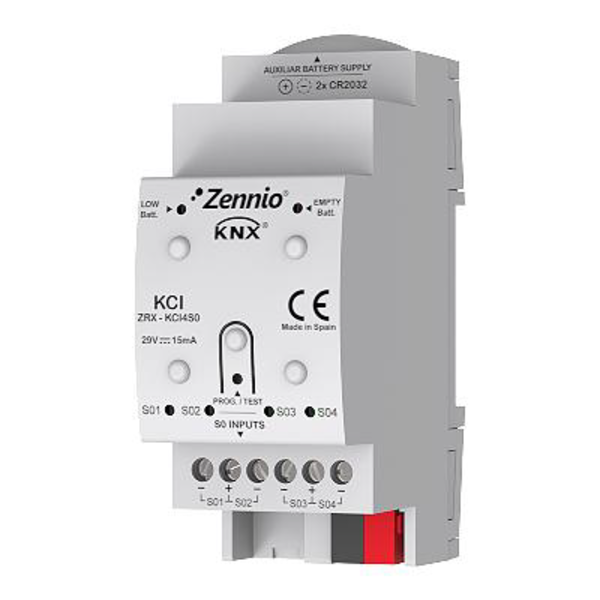

KCI 4 S0 KNX S0-Gateway for Smart Meters
€112,88 Excl. tax
€144,72 Excl. tax
€136,58 Incl. tax €175,11 Incl. tax. Out of stock, but available
€136,58 Incl. tax €175,11 Incl. tax. Out of stock, but available
KNX interface for 4 consumption meters with S0 pulse outputs. Measures electricity, water, and gas consumption. Battery buffering for power failure and LED indicators. Read more
Specifications
Brand:
Zennio
Article number:
ZRX-KCI4S0
EAN:
8411080793270
Availability:
Out of stock, but available
Delivery time:
Will be shipped within approximately 8 working days.
Information
KNX Interface for Consumption Meters Art.-No.: ZRX-KCI4S0
Product Description
The Zennio KCI 4 S0 is an advanced KNX interface for four consumption meters with S0 pulse outputs, enabling precise monitoring of electricity, water, and gas consumption. The device features battery buffering for KNX power failures and LED indicators for status monitoring.
Features
- Supports 4 consumption meters with S0 pulse outputs
- Records energy consumption, costs, and CO2 emissions
- Data storage in case of KNX power failure
- LED indicators for battery level and communication
- DIN rail mounting (2 DIN units)
- Compatible with KNX TP1-256
Technical Specifications
| Property | Description |
|---|---|
| KNX Power Supply | 21-31 VDC (typical 29 VDC) |
| Maximum Consumption | 363 mW at 29 VDC |
| Battery | 2 x CR2032 (3V) for pulse counting in case of KNX failure |
| Operating Temperature | 0 to +55°C |
| Protection Class | IP20 |
| Dimensions | 67 x 90 x 36 mm (2 DIN units) |
| Weight | 89 g (excluding batteries) |
Installation and Safety
The installation must be carried out by a qualified professional and should only take place in a dry, clean environment (IP20 protection). Do not connect mains voltage to the KNX bus to avoid damage.
