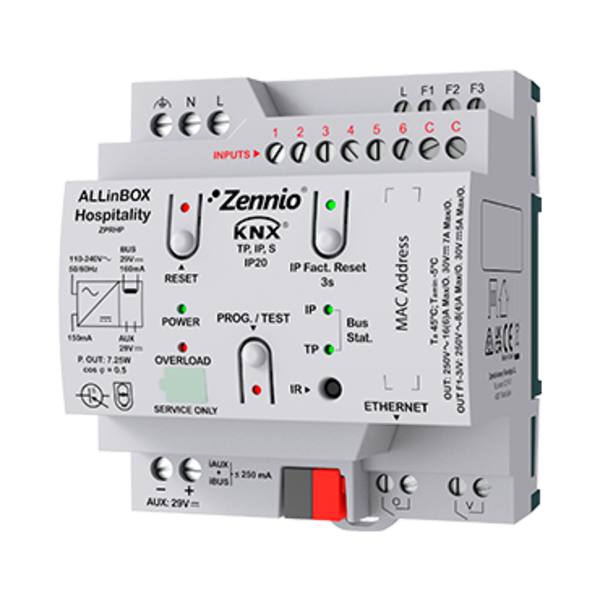

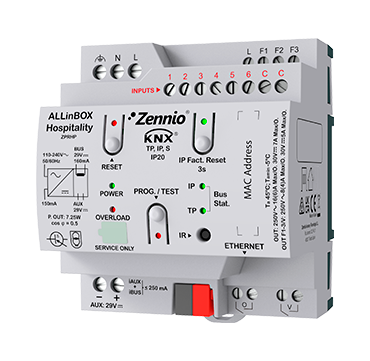

ALLinBOX Hospitality - KNX power supply - IP interface, 5 outputs, 6 inputs
€418,05 Incl. tax €497,68 Incl. tax. Out of stock, but available
Specifications
Information
ALLinBOX Hospitality - Art.nr. ZPRHP
The KNX ALLinBOX Hospitality is a compact, multifunctional device, ideal for controlling 2-pipe fan coil units. It combines a 160 mA KNX power supply, a KNX-IP interface, and a heating/cooling module in just 4.5 DIN rail units.
Main Features
- 160 mA KNX power supply with 29 VDC auxiliary output
- KNX-IP interface supporting up to 5 simultaneous tunneling connections
- 6 analog/digital inputs, ideal for sensors or switches
- 5 outputs: 4 for controlling 2-pipe fan coil units, 1 for a 16A C-Load relay
- Overload and short-circuit protection
- Integrated clock with NTP synchronization for time-critical functions
- 20 configurable logic functions
- Data retention during power or KNX bus failures
- Suitable for DIN rail mounting according to IEC 60715
- Ethernet 10/100 BaseT IP with RJ45 socket
- Supports KNXnet/IP tunneling protocol (max. 5 connections)
- Maximum APDU length of 254 bytes
- Climate control for up to 2 rooms
- Manual control of outputs via remote operation
- Compatible with capacitive loads (max. 140 µF)
Detailed Technical Specifications
| General Specifications | |
|---|---|
| Power Input | 110-240 VAC, 50/60 Hz |
| KNX Power Supply | 160 mA, 29 VDC SELV |
| Temperature Range | -5 to +45 °C (operation), -20 to +55 °C (storage) |
| Protection Class | IP20, suitable for clean environments |
| Dimensions | 67 x 90 x 79 mm (4.5 DIN units) |
| Weight | 301 g |
| Inputs | |
| Number of Inputs | 6 (analog/digital) |
| Input Operating Voltage | +3.3 VDC |
| Maximum Cable Length for Inputs | 30 m |
| Outputs | |
| Fan Coil Outputs | 4 (for fan speeds and valve control) |
| Relay Output | 1 multifunctional relay (16A, C-Load) |
| Maximum Relay Load | 4000 W (resistive), 1500 VA (inductive) |
Important Notes
The KNX ALLinBOX Hospitality is designed for versatility and seamless integration into building automation systems. Always use qualified installers and follow IEC 60715 standards for proper mounting.
Certifications
This device complies with CE, UKCA, and RCM standards, ensuring safety and reliability.
