ALLinBOX 46 Multi-device KNX-IP Interface, 4 outputs, 6 inputs
€345,49 Excl. tax
€411,30 Excl. tax
€418,05 Incl. tax €497,68 Incl. tax. Out of stock, but available
€418,05 Incl. tax €497,68 Incl. tax. Out of stock, but available
Multifunctional KNX device with 160 mA power supply, IP interface, 4 outputs (16 A), 6 inputs, logical module, and 4 thermostats. Ideal for advanced control and monitorin Read more
Specifications
Brand:
Zennio
Article number:
ZPR46
EAN:
8411080789006
Availability:
Out of stock, but available
Delivery time:
Will be shipped within approximately 8 working days.
Due to the holidays, orders may be delayed and pickup is not possible.
Information

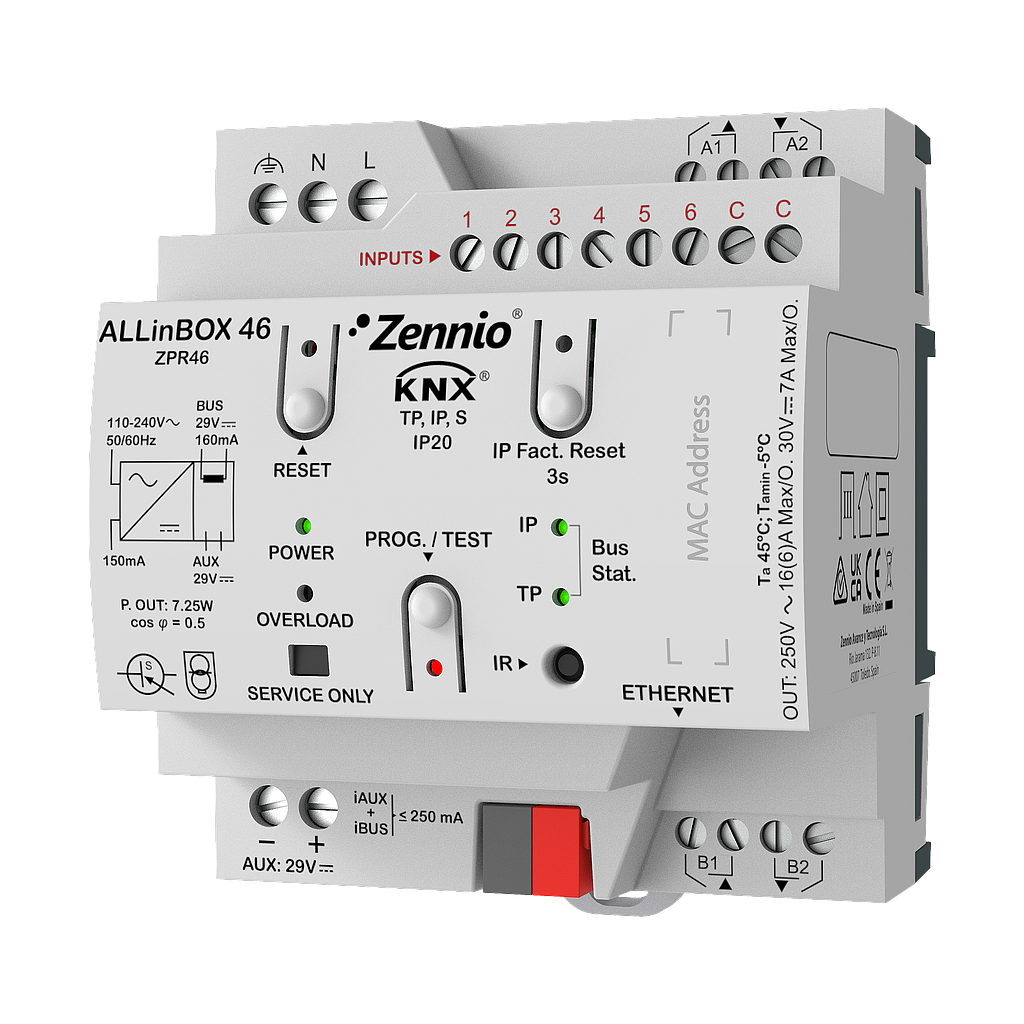

ALLinBOX 46
KNX Device (Art. Nr.: ZPR46)
The ideal solution for advanced control and monitoring in intelligent projects. This device integrates:
- Power Supply:
- 160 mA KNX power supply with 29 VDC auxiliary output
- Input voltage: 110-240 VAC, 50/60 Hz
- Maximum power consumption: 150 mA @ 110 VAC / 75 mA @ 230 VAC
- Short-circuit and overvoltage protection
- Power failure backup time: 110 ms
- Outputs:
- 4 potential-free relay outputs
- Maximum load per output: 16 A (AC) / 7 A (DC)
- Suitable for capacitive loads up to 140 µF
- Mechanical lifespan: at least 3,000,000 operations
- Electrical lifespan: at least 100,000 operations at 8 A
- Maximum inrush current: 800 A/200 µs
- Maximum response time: 10 ms
- Inputs:
- 6 analog/digital inputs
- Operating voltage: +3.3 VDC
- Maximum cable length: 30 m
- Temperature measurements with NTC probe (accuracy ±0.5 °C)
- NTC resolution: 0.1 °C
- Maximum response time: 10 ms
- IP Interface:
- KNX-IP interface with up to 5 simultaneous connections
- Ethernet connection: RJ45 socket (10/100 BaseT)
- Supports KNXnet/IP tunneling protocol
- Maximum APDU length: 254 bytes
- Clock with NTP support
- Logical module with 20 functions
- 4 independent thermostats
Key Features:
- Control of blinds, fan coil units, and lighting
- Short-circuit and overvoltage protection
- Data storage in case of KNX bus failure
- DIN-rail mounting according to IEC 60715
- Dimensions: 67 x 90 x 79 mm (4.5 DIN units)
- Protection class: IP20
