Presentia W0 v2 | KNX motion detector
€142,75 Incl. tax €183,01 Incl. tax. Out of stock, but available
Specifications
Information

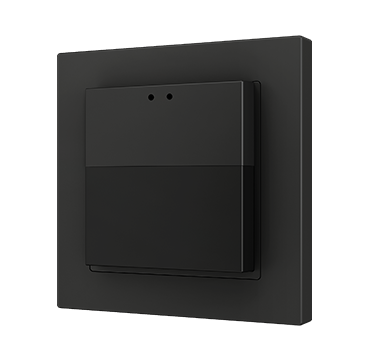

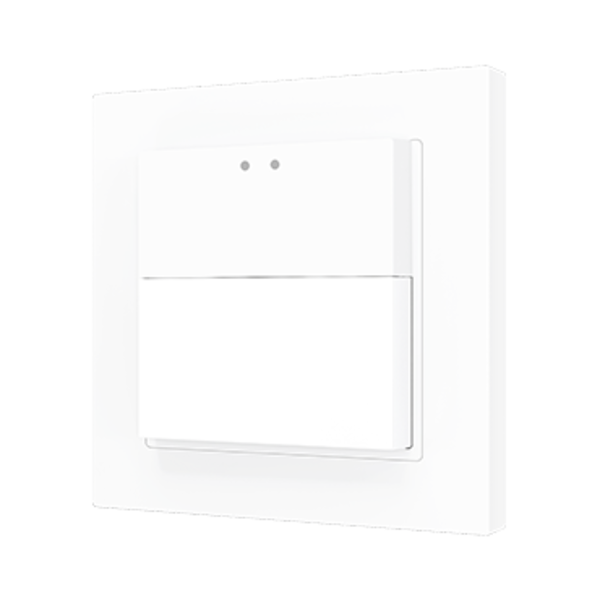

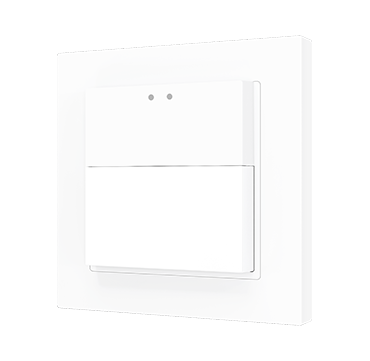

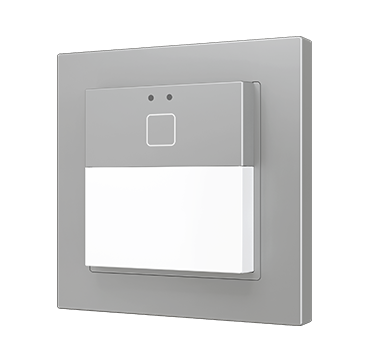

KNX Motion Sensor - Zennio Presentia W0/W1/W2 v2
The Zennio Presentia W0/W1/W2 v2 is a versatile, in-wall KNX motion sensor available in three variants: without buttons (W0), with one button (W1), and with two buttons (W2). This device combines advanced motion detection with customizable features to optimize smart home and building automation systems.
Main Features
- In-wall KNX motion sensor with 0/1/2 capacitive buttons with adjustable backlighting.
- Adjustable sensitivity with two independent PIR sensors for precise detection.
- Detection angle of 180° with a maximum range of 10 meters.
- 6 motion detection channels and 10 configurable logical functions.
- Integrated proximity and light sensor for advanced automation features.
- Touch confirmation through acoustic feedback for intuitive interaction.
- Compatible with Zennio frames, including Tecla 55, Flat 55, and ZS55 families.
Technical Specifications
| Specification | Details |
|---|---|
| Device Type | Electrical control device |
| KNX Supply Voltage | 29 VDC (typical), range: 21-31 VDC |
| Maximum Consumption |
|
| Operating Temperature | 0°C to +45°C |
| Storage Temperature | -20°C to +55°C |
| Operating Humidity | 5% to 95% |
| Protection Class | IP20 (indoor use only) |
| Housing Material | PC UL94 V2 and PC+ABS UL94 V0, halogen-free |
| Dimensions | 55.5 x 55.5 x 39.7 mm |
Installation Notes
This motion sensor is designed for installation in standard 55x55 mm frames. The device is compatible with a wide range of frame styles and colors, including white, anthracite, and silver. Frames are not included and must be purchased separately.
Certifications
The device complies with CE, UKCA, and RCM regulations, ensuring safety and reliability across various regions.
Available Colors
- White (RAL 9016)
- Anthracite Black (RAL 9004)
- Silver (RAL 9006)
Conclusion
The Zennio Presentia W0/W1/W2 v2 offers unparalleled flexibility and performance for smart home automation. With its advanced motion detection, customizable features, and sleek design, it is the ideal choice for both residential and commercial applications.
