EyeZen IN Motion detector with light sensor, ceiling (NO KNX)
€51,77 Excl. tax
€66,37 Excl. tax
€62,64 Incl. tax €80,31 Incl. tax. Out of stock, but available
€62,64 Incl. tax €80,31 Incl. tax. Out of stock, but available
Motion detector with PIR technology and light sensor for ceiling mounting. Compatible with Zennio devices. Ø6 m detection range, compact, easy to install, no extra power required. Available in white and anthracite. Note: NOT a KNX component. Read more
Specifications
Brand:
Zennio
Article number:
ZPDEZINW
EAN:
8411080792099
SKU:
8185451
Availability:
Out of stock, but available
Delivery time:
Will be shipped within approximately 8 working days.
Information

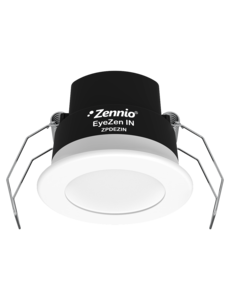

Zennio EyeZen IN - Motion Detector with Light Sensor
REF: ZPDEZIN
Product Description
The EyeZen IN is a PIR motion detector with an integrated light sensor for ceiling mounting. Works with Zennio devices that have an input module for motion sensors. The detection range can be extended by connecting two sensors in parallel. Easy installation, compact design, and no additional power supply required.
Note: NOT a KNX component.
Available in white (ZPDEZINW) and anthracite (ZPDEZINA).
Technical Specifications
- Technology: PIR motion detection
- Detection range: Up to Ø6 m
- Light sensor: Spectral sensitivity similar to the human eye
- Installation: Flush-mounted in a false ceiling
- Dimensions: Ø58 x 41 mm (external), Ø48.3 x 41 mm (internal)
- Cut-out size: Ø51 mm
- Protection class: IP20 (for clean environments)
- Operating temperature: 0 to +45 °C (detection range may decrease above 35 °C)
- Storage temperature: -20 to +55 °C
- Humidity: 5 - 95%
- Connection: Screw terminal (max. 0.3 Nm)
- Cable length: Max. 30 m, cross-section 0.2-1 mm²
- LED indicator: Motion detection indicated via LED flash (configurable via microswitch)
- Housing material: PC/ABS FR V0 halogen-free housing, HDPE lens
- Certifications: CE, UKCA, RCM
Important Note
This accessory must be connected to a compatible Zennio device input. Please check the datasheet of your Zennio device for compatibility.
Not compatible with discontinued products: ACTinBOX Classic, ACTinBOX Hybrid, QUAD, Z38i, Roll-ZAS, TMD.
