Current Transformer – 60 A

Name: Zennio Current Transformer – 60 A
Brand: Zennio
Price: 21.22 EUR
Availability: OutOfStock
Rating: 0 (0 reviews)

0 Review(s)

€21,22 Excl. tax €27,20 Excl. tax
€25,67 Incl. tax €32,92 Incl. tax. Out of stock, but available

Unit price: €21,22 / Piece

Transformer for KES, KES Plus, and KEM. Measures currents up to 60 A for energy data. Compact (40x25.5x26mm), Ø9.5mm cable, CE compliant, accurate performance. Read more

Specifications

Brand:

Zennio

Article number:

ZN1AC-CST60

EAN:

8411080796752

Availability:

Out of stock, but available

Delivery time:

Will be shipped within approximately 8 working days.

Due to the holidays, orders may be delayed and pickup is not possible.

Information

Datasheet

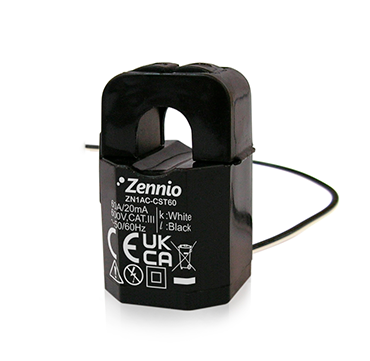

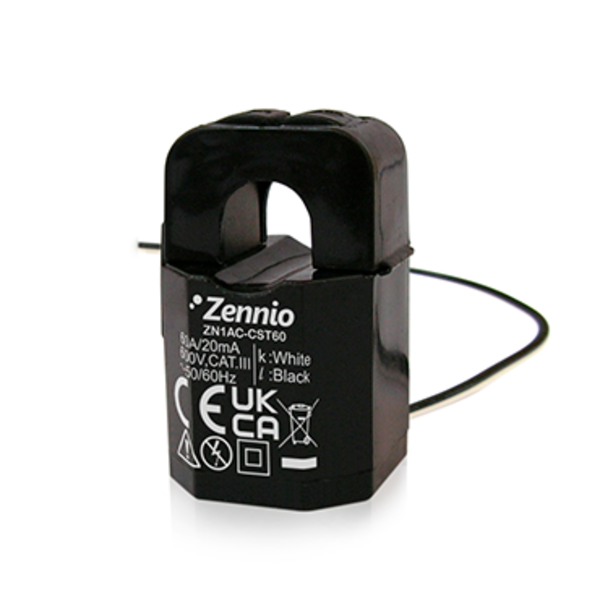

Zennio Current Transformer – 60 A (Ref.: ZN1AC-CST60)

The Zennio current transformer is an essential accessory for the KES, KES Plus, and KEM energy meters. Designed to measure currents up to 60 A accurately, it provides real-time energy consumption data.

Features:

Compatible with KES, KES Plus, and KEM systems.
Current measurement range: 0.03 to 60 A.
Current ratio: 60A/20mA.
Dimensions: 40 x 25.5 x 26 mm.
Maximum cable diameter: Ø9.5 mm.
Operating temperature: -40°C to 65°C.
Storage temperature: -45°C to 85°C.
Accuracy: 1% (at RL ≤ 10Ω).
Linearity: 0.5% (at RL ≤ 10Ω).
Phase error at rated current: ≤3.5°.
Dielectric strength: 2.5KV.
Secondary side cable section: 0.33mm² (22 AWG).
Secondary side cable length: 1.8 m.
Weight: 60 g.
Transformer ratio: Np:Ns=1:3000.

Installation Instructions:

Open the transformer clamp and place the phase cable inside, paying attention to the orientation.
Close the clamp around the cable and lock it using the side clip.
Correctly connect the secondary cables to the KES, KES Plus, or KEM, observing polarity, before closing the clamp.

Safety Instructions:

Installation must be performed by qualified professionals according to applicable laws and regulations.
Do not connect mains voltage or any external voltage to the signal cables.
Keep the device away from water and do not cover it during use.

Compliance: This device complies with CE directives.
