Current Transformer – 120 A
€23,76 Excl. tax
€30,47 Excl. tax
€28,75 Incl. tax €36,86 Incl. tax. Out of stock, but available
€28,75 Incl. tax €36,86 Incl. tax. Out of stock, but available
Accessory for KES Plus, designed for accurate current measurements up to 120 A. Compact design (46x30.8x29.5mm) with CE compliance. Cable diameter Ø16mm. Read more
Specifications
Brand:
Zennio
Article number:
ZN1AC-CST120
EAN:
8411080796769
Availability:
Out of stock, but available
Delivery time:
Will be shipped within approximately 8 working days.
Due to the holidays, orders may be delayed and pickup is not possible.
Information

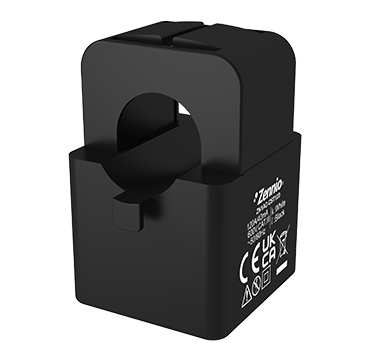

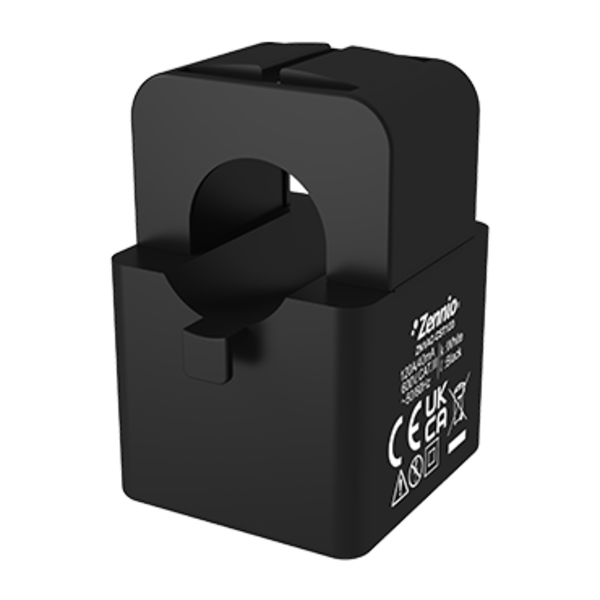

Zennio Current Transformer – 120 A (Ref.: ZN1AC-CST120)
The Zennio current transformer is an essential accessory for the KES Plus energy meter. Designed for accurate current measurements up to 120 A, it provides instantaneous data on energy consumption and power management.
Features:
- Current measurement range: 0.01 to 120 A.
- Current ratio: 120A/40mA.
- Dimensions: 46 x 30.8 x 29.5 mm.
- Maximum cable diameter: Ø16 mm.
- Operating temperature: -25°C to +60°C.
- Storage temperature: -30°C to +90°C.
- Accuracy: 1% (at RL ≤ 10Ω).
- Linearity: ≤0.2% (at RL ≤ 10Ω).
- Phase error at rated current: 2°.
- Dielectric strength: 3.5KV.
- Secondary side cable section: 0.33mm² (22 AWG).
- Secondary side cable length: 50 cm (not modifiable).
- Weight: 70 g.
- Transformer ratio: Np:Ns=1:3000.
Installation Instructions:
- Open the transformer clamp and place the phase cable inside, paying attention to the orientation.
- Close the clamp around the cable and lock it using the side clip.
- Correctly connect the secondary cables to the KES Plus, observing polarity, before closing the clamp.
Safety Instructions:
- Installation must be performed by qualified professionals according to applicable laws and regulations.
- Do not connect mains voltage or any external voltage to the signal cables.
- Keep the device away from water and do not cover it during use.
Compliance: This device complies with CE directives.
