MINiBOX 45 v3 | 4 outputs 16 A / 5 inputs A/D
€217,46 Incl. tax €292,28 Incl. tax. Out of stock, but available
Specifications
Information

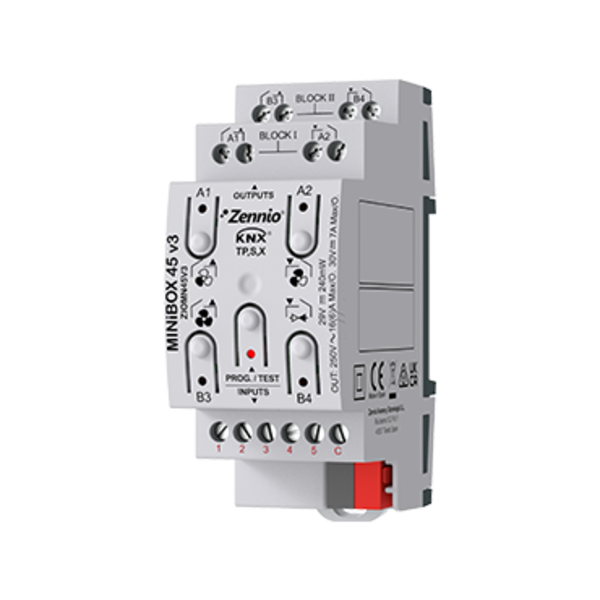

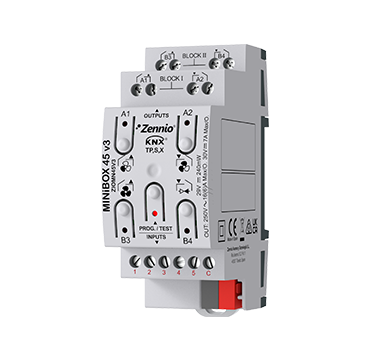

Zennio MINiBOX 45 v3 | 4 outputs 16 A / 5 inputs A/D, Secure | Part No.: ZIOMN45V3
The Zennio MINiBOX 45 v3 is a versatile KNX actuator designed for DIN rail mounting. The device features 4 configurable outputs (16 A C-load) and 5 analog/digital inputs. This multifunctional actuator supports KNX Secure for safe communication and offers advanced functionalities such as logic operations, shutter control, thermostats, and more. Manual control is easy with push buttons and LED indicators on the housing.
Main Features
- 4 configurable outputs: fan coil, shutter channels (up to 2), and individual outputs (up to 4).
- Suitable for capacitive loads up to 140 µF.
- 5 analog/digital inputs, configurable for sensors, temperature probes, or motion sensors.
- Supports KNX Data Secure for safe communication.
- Includes 4 integrated room thermostats for heating and cooling systems.
- Manual operation via push buttons and LED status indicators.
- 10 logic functions for flexible automation.
- Data saving during KNX bus failure.
- Dimensions: 67 x 90 x 36 mm (2 DIN units).
- DIN rail mounting compliant with IEC 60715.
Technical Specifications
| Device Type | Electrical operation control device |
|---|---|
| Power Supply | KNX TP1, 21-31 VDC |
| Power Consumption | 4.9 mA at 29 VDC |
| Number of Outputs | 4 potential-free outputs |
| Rated Current | 16 A C-load per output |
| Maximum Load | Resistive: 4000 W, Inductive: 1500 VA |
| Inrush Current | 800 A/200 µs |
| Number of Inputs | 5 analog/digital inputs |
| Temperature Accuracy | ±0.5 °C (at 25 °C) |
| Cable Cross-Section | 0.5-4 mm² (outputs), 0.5-2.5 mm² (inputs) |
| Protection Class | IP20 |
| Dimensions | 67 x 90 x 36 mm |
| Operating Temperature | 0 to +55 °C |
| Lifespan | Mechanical: 3 million cycles, Electrical: minimum 100,000 cycles at 8 A |
Important Notes
- Supports different phase connections on adjacent outputs.
- Compatible with AC/DC shutter adapters, temperature probes, and motion sensors.
- No integrated short-circuit or overload protection.
- Programmable logic and configuration via KNX bus.
The Zennio MINiBOX 45 v3 is a powerful and flexible solution for advanced automation needs in residential and commercial environments. With KNX Secure support, the device ensures maximum reliability and security.
