MAXinBOX SHUTTER | KNX Blind Actuator | 8-channel, Secure
€330,39 Incl. tax €444,07 Incl. tax. Out of stock, but available
Specifications
Information

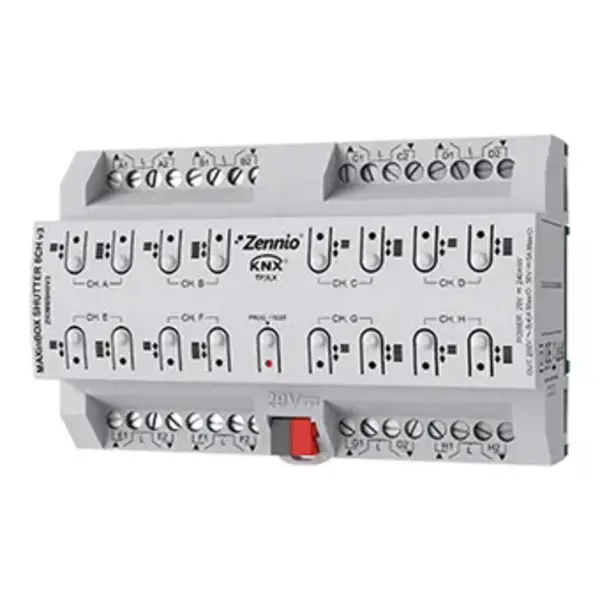

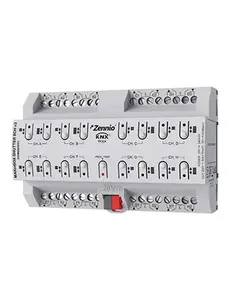

MAXinBOX SHUTTER 8CH v3 Art. Nr.; ZIOMBSH8V3
Shutter Actuator for Blinds and Shutters with KNX Secure - 8 Channels
Product Description:
The Zennio MAXinBOX SHUTTER 8CH v3 (ZIOMBSH8V3) is an advanced actuator for controlling blinds and shutters, supporting 8 channels and KNX Secure. This device provides a reliable solution for integrating blinds and shutters into a KNX system, with the ability to control up to 8 separate outputs. The device supports up to 20 logical functions, manual control via buttons, and provides status indicators through LEDs. It is ideal for applications in both residential and commercial buildings using KNX systems for home automation.
Key Features:
- Up to 8 channels for blinds and shutters.
- Supports KNX Secure for secure communication.
- 20 logical functions for flexible control.
- Manual operation with push buttons and LED status indicators.
- Output timing and the possibility to set delays.
- Complete data storage in case of KNX bus failure.
- Compatible with different phases on adjacent outputs.
- Suitable for DIN rail mounting (8 DIN units).
- Protected against faults and KNX bus system failure.
Technical Specifications:
| Number of Outputs: | 8 channels for blinds and shutters |
| Output Type: | Potential-free outputs via bistable relays |
| Maximum Load per Output (AC): | 8(4) A at 250 VAC (2000 VA) |
| Maximum Load per Output (DC): | 5 A at 30 VDC (150 W) |
| Response Time: | Maximum 15 ms |
| Relay Lifetime: | At least 1,000,000 switching cycles |
| Operating Temperature: | 0°C to +55°C |
| Storage Temperature: | -20°C to +55°C |
| Weight: | 452 g |
| Housing Material: | PC FR V0 halogen-free |
Installation:
The actuator is designed for mounting on a DIN rail according to the IEC 60715 standard. The device can be easily installed in electrical distribution boards. The mounting requires no minimum clearance and offers flexible installation options, including connecting different phases to adjacent outputs.
Note:
When used with 3 dry contacts, an additional actuator is required for the outlet.
Protection and Safety:
The Zennio MAXinBOX SHUTTER 8CH v3 provides protection against faults and secure system management with KNX Secure, ensuring data is safely stored in case of bus failures. The device supports continuous operation and is suitable for use in demanding environments.
Compliance:
The device complies with CE, UKCA, and RCM directives and is suitable for use in both commercial and residential environments. The housing provides IP20 dust protection, and the relay power categories are designed for long-term use.
Summary:
The Zennio MAXinBOX SHUTTER 8CH v3 (ZIOMBSH8V3) is a reliable and versatile actuator for blinds and shutters, suitable for KNX systems, offering extensive automation and control options. Thanks to KNX Secure, it ensures secure communication with protection against bus failures, making it ideal for controlling blinds and shutters in both residential and commercial buildings.
