MAXinBOX SHUTTER | KNX Blind Actuator | 4-channel, Secure
€173,35 Excl. tax
€233,00 Excl. tax
€209,76 Incl. tax €281,93 Incl. tax. Out of stock, but available
€209,76 Incl. tax €281,93 Incl. tax. Out of stock, but available
4-channel KNX Secure shutter actuator with manual control, 20 logic functions, and data retention during bus failure. Suitable for DIN rail mounting. Ideal for efficient blind or shutter control. Read more
Specifications
Brand:
Zennio
Article number:
ZIOMBSH4V3
EAN:
8411080789198
Availability:
Out of stock, but available
Delivery time:
Will be shipped within approximately 8 working days.
Information

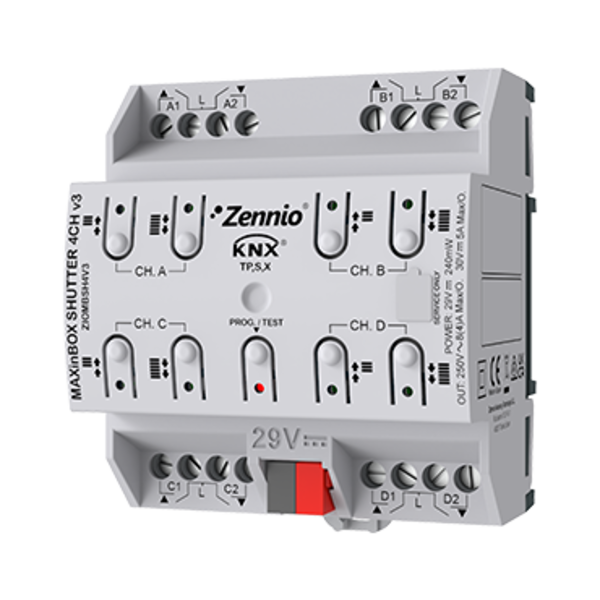

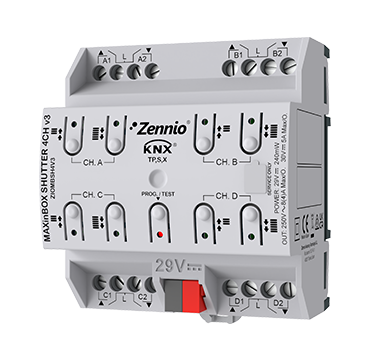

MAXinBOX SHUTTER 4CH v3
Art.nr. ZIOMBSH4V3
The MAXinBOX SHUTTER 4CH v3 is an advanced shutter actuator with 4 channels and KNX Secure. This device allows for efficient control of shutters via both automatic and manual operation.
Key Features:
- Up to 4 channels for shutter control
- Manual operation with buttons and LED status indicators
- Supports KNX Data Secure for secure communication
- Integrated 20 logical functions for advanced control
- Output timing and data saving during KNX bus failure
- DIN rail mounting and compatibility with different phases
- Maximum load per channel: 2000 W (resistive), 1000 VA (inductive)
Technical Specifications:
- Nominal voltage: 29 VDC
- Maximum current per output: 8A at 250 VAC
- Maximum load per output: 2000 W
- Operating temperature: 0 .. +55°C
- Dimensions: 67 x 90 x 79 mm (4.5 DIN units)
- Weight: 250 g
Note: It is not allowed to connect different phases from different power supplies within the same block.
