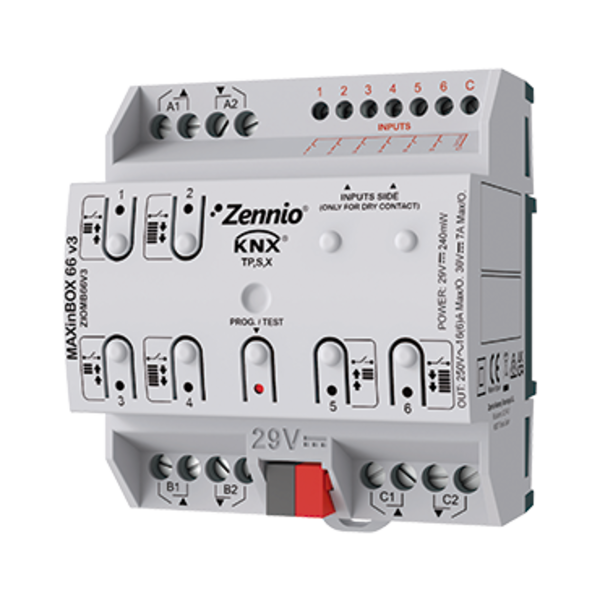

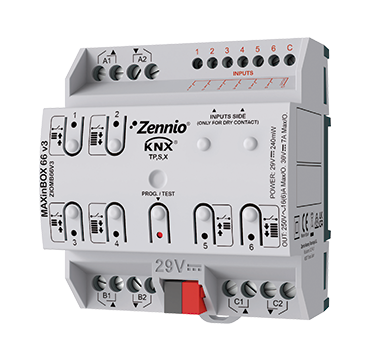

MAXinBOX 66 v3 | 6 outputs 16 A / 6 inputs A/D
€243,67 Excl. tax
€327,52 Excl. tax
€294,84 Incl. tax €396,29 Incl. tax. Out of stock, but available
€294,84 Incl. tax €396,29 Incl. tax. Out of stock, but available
Multifunction KNX actuator with 6 outputs (16 A, C-load) and 6 analog/digital inputs. Supports KNX Secure, manual control, logical functions, and versatile input voltage. Read more
Specifications
Brand:
Zennio
Article number:
ZIOMB66V3
EAN:
8411080789181
Availability:
Out of stock, but available
Delivery time:
Will be shipped within approximately 8 working days.
Due to the holidays, orders may be delayed and pickup is not possible.
Information
MAXinBOX 66 v3 | 6 outputs 16 A / 6 inputs A/D - Ref.: ZIOMB66V3
Key Features
The MAXinBOX 66 v3 is a multifunctional KNX actuator with extensive functionality. Designed for DIN rail mounting, this device offers a powerful solution for automation and control within KNX installations. With 6 outputs (16 A, C-load) and 6 configurable analog/digital inputs, it meets the requirements of modern building management systems.
Key Features
- 6 outputs, suitable for capacitive loads up to 140 µF.
- 6 configurable analog/digital inputs, compatible with sensors, potential-free switches, and more.
- Compatible with KNX Secure for enhanced safety.
- Manual control via buttons and LED status indicators.
- 10 independent logical functions for advanced automation possibilities.
- Data retention during KNX bus failure, with recovery upon restart.
- Support for multiple phases in adjacent outputs.
Technical Specifications
General Specifications
- Dimensions: 67 x 90 x 79 mm (4.5 DIN units).
- Installation type: DIN rail mounting according to IEC 60715.
- Operating temperature: 0 to +55 °C.
- Protection class: IP20.
- Power supply via KNX bus: 21-31 VDC.
- Maximum KNX consumption: 132.53 mW @ 29 VDC.
Output Specifications
- Number of outputs: 6 potential-free relay outputs.
- Rated current per output: 16 A (AC) / 7 A (DC).
- Maximum inrush current: 800 A / 200 µs.
- Suitable for resistive (4000 W) and inductive loads (1500 VA).
- Connection: Screw terminals, suitable for cables with cross-sections of 1.5-4 mm².
Input Specifications
- Number of inputs: 6, configurable as analog or digital inputs.
- Operating voltage: +3.3 VDC.
- Maximum cable length: 30 m.
- Compatibility with NTC temperature sensors (accuracy: ±0.5 °C at 25 °C).
Important Note
The MAXinBOX 66 v3 supports versatile input voltages and is suitable for complex KNX automation scenarios. This makes it ideal for applications such as lighting, shading, and HVAC systems in both residential and commercial buildings.
