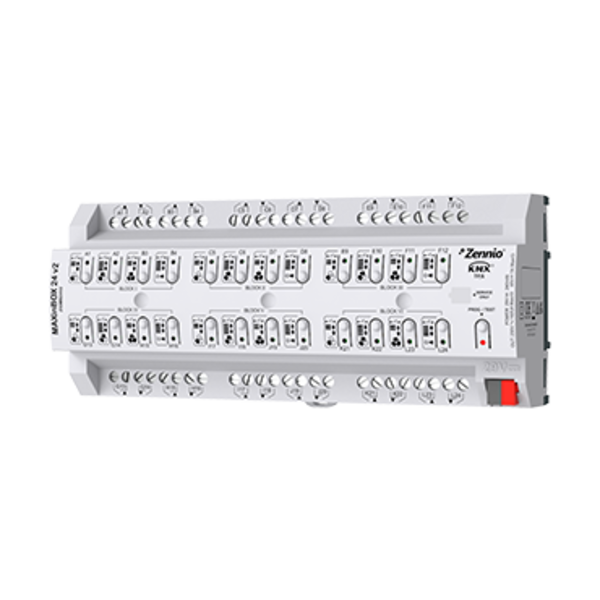

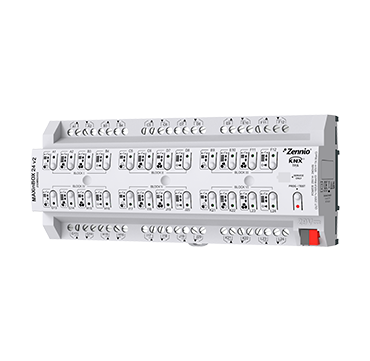

MAXinBOX 24v2 KNX Multifunction Actuator (Ref.: ZIOMB24V2)

The MAXinBOX 24v2 is a versatile and powerful KNX actuator designed for professional building automation. With 24 configurable outputs (16 A C-Load), this actuator provides flexible solutions for managing shutters, fans, lighting, and fan-coil systems. It supports advanced automation with logical functions and delivers reliable performance in demanding applications.

Main Features

• 24 configurable outputs (16 A), usable individually or grouped.
• Suitable for shutter control, fan regulation, lighting, and fan-coil systems (up to 6 blocks for 2-pipe control).
• Supports capacitive loads up to 140 µF.
• Manual control via push buttons on the housing with LED status indicators.
• 30 independent logic functions for advanced automation capabilities.
• DIN rail mounting according to IEC 60715 (12 DIN units).
• Allows connection of different phases to adjacent outputs.
• Complete data saving in case of KNX bus failure.
• Integrated KNX BCU (TP1-256).

Technical Specifications

General

• Power supply: 21-31 VDC (typical 29 VDC)
• Maximum current consumption: 4.3 mA @ 29 VDC
• Dimensions: 68 x 90 x 212 mm (12 DIN units)
• Protection class: IP20
• Operating temperature: 0 .. +55 °C
• Storage temperature: -20 .. +55 °C
• Relative humidity: 5-95% (non-condensing)
• Weight: 757 g
• Housing material: Halogen-free PC FR V0

Outputs

• Number: 24
• Type: Potential-free outputs via bistable relays with tungsten pre-contact
• Nominal current: 16 A C-Load per output
• Maximum load:
  • Resistive: 4000 W
  • Inductive: 1500 VA
  • Capacitive: Max. 140 µF
• Maximum inrush current: 800 A/200 µs
• Lifetime: At least 3,000,000 mechanical operations
• Response time: Max. 10 ms
• Outputs per common connection: 1

Logic Functions

The MAXinBOX 24v2 features 30 independent logic functions, enabling complex automation scenarios. Each logic function supports AND, OR, XOR, and comparison operators, allowing easy implementation of time-based actions, sensor-driven processes, and complex scenarios.

Applications

This actuator is ideal for managing shutters, fans, lighting, and fan-coil systems in commercial and residential buildings. With support for KNX protocols and logical functions, the MAXinBOX 24v2 provides a flexible and reliable solution for modern building automation.

Notes

⚠ To ensure the expected status of the relays, make sure the device is connected to the KNX bus before energizing the power circuit.
