MAXinBOX 12 | Multifunctional actuator, 12 outputs (16 AC-Load) Secure
€342,99 Incl. tax €461,01 Incl. tax. Out of stock, but available
Specifications
Information

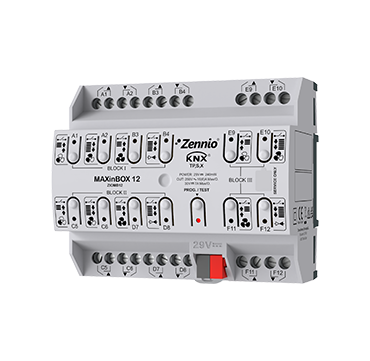

MAXinBOX 12 KNX Multifunction Actuator (Ref.: ZIOMB12)
The MAXinBOX 12 is an advanced KNX actuator designed for professional applications. With 12 configurable outputs (16 A), it offers versatile options for shutters, fans, and heating systems. The outputs can be used individually as switch actuators, providing maximum flexibility.
Main Features
- 12 configurable outputs (16 A), usable individually or grouped for shutter or fan control.
- Supports KNX Secure for safe communication.
- Includes 30 logic functions for advanced automation.
- Manual control via buttons with LED status indicators.
- DIN rail mounting according to IEC 60715.
Technical Specifications
General
- Voltage: 21-31 VDC (typical 29 VDC)
- Dimensions: 68 x 90 x 105 mm (6 DIN units)
- Protection class: IP20
- Weight: 397 g
Outputs
- Number: 12
- Nominal current: 16 A C-Load
- Maximum load: 4000 W (resistive), 1500 VA (inductive)
- Maximum inrush current: 800 A/200 µs
- Lifespan: 3,000,000 mechanical operations
- Individually configurable as switch actuator or shutter channel.
Applications
The MAXinBOX 12 is perfect for controlling shutters, fans, lighting, and heating/cooling systems. It provides safe and modern building automation with maximum flexibility through individually configurable outputs.
