IndustrialBOX Current 4 | 4-ch., 20 A | Current Measurement & KNX Secure
€263,50 Incl. tax €354,16 Incl. tax. Out of stock, but available
Specifications
Information

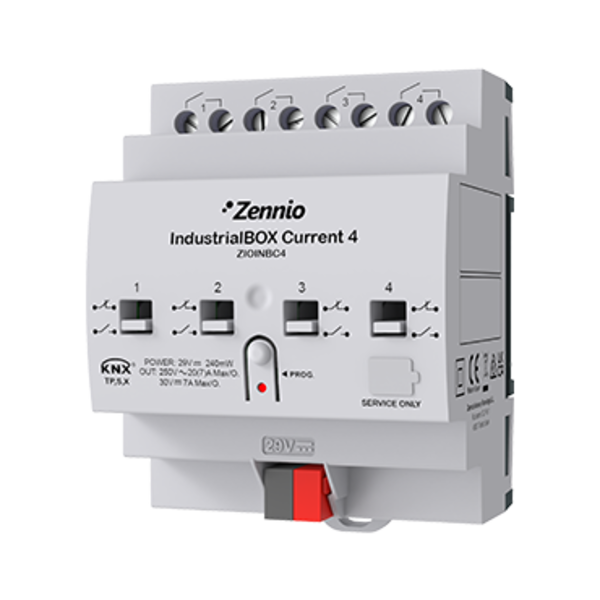

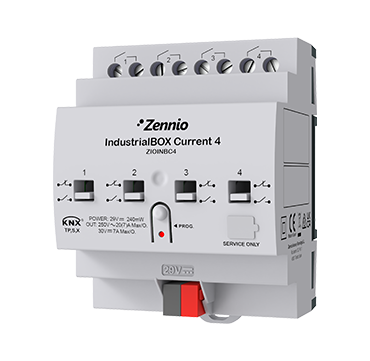

Zennio IndustrialBOX ZIOINBC4 KNX Actuator
The Zennio IndustrialBOX ZIOINBC4 is an industrial actuator designed for DIN rail mounting. The device features 4 independent outputs, each with a maximum load of 20 A. With integrated current measurement, you can monitor the energy consumption of connected devices in real-time.
Main Features
- 4 independent outputs, each up to 20 A
- Supports capacitive loads up to 200 µF
- Integrated current measurement with 2% ±20 mA accuracy
- KNX Secure support for secure communication
- Manual control via physical switches
- 20 logic functions for advanced automation
- Data saving and recovery in case of KNX bus failure
- DIN rail mounting according to IEC 60715
Technical Specifications
| Device Type | Electric operation control device |
|---|---|
| KNX Power Supply | 29 VDC (21-31 VDC) |
| Max Current per Output | 20 A |
| Dimensions | 67 x 90 x 70 mm (4 DIN units) |
| Protection Class | IP20 |
| Operating Temperature | 0 .. +55 °C |
| Storage Temperature | -20 .. +55 °C |
| Wire Cross-Section | 0.5-4 mm² (IEC) / 26-10 AWG (UL) |
| Mechanical Lifespan | 1,000,000 operations |
| Electrical Lifespan | 100,000 operations at 20 A (VAC) |
Installation and Usage
The Zennio IndustrialBOX ZIOINBC4 is easy to install on a DIN rail. Note that the device does not include built-in short-circuit or overload protection. Always use suitable external protection devices. The device supports different phases for adjacent outputs, but mixing SELV and non-SELV power supplies is not allowed.
Applications
Ideal for industrial environments requiring reliable energy management and automation solutions. Suitable for lighting, motor control, and other high-power applications.
Note: Always refer to the user manual for installation and operation instructions.
Related products

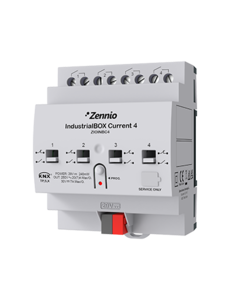

Industrial actuator with 4 outputs (20 A - 200 µF), suitable for DIN rail, KNX Secure, manual control, logic functions, and versatile applications.
