IndustrialBOX 4 | 4 outputs (20 A - 200 µF), KNX Secure.
€224,32 Incl. tax €301,50 Incl. tax. Out of stock, but available
Specifications
Information

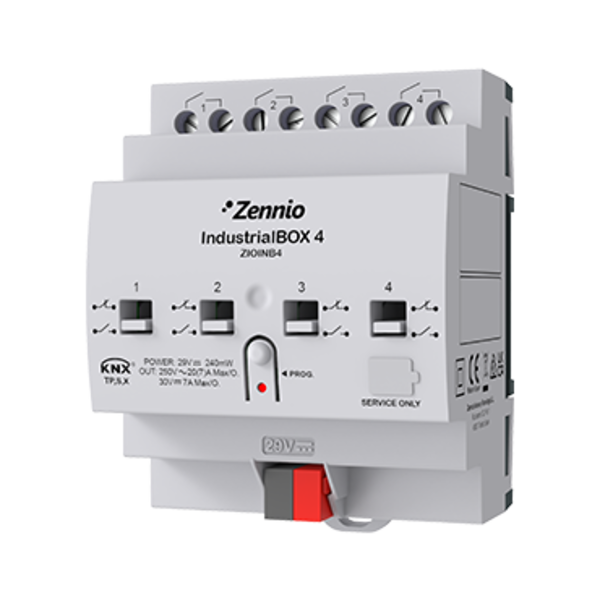

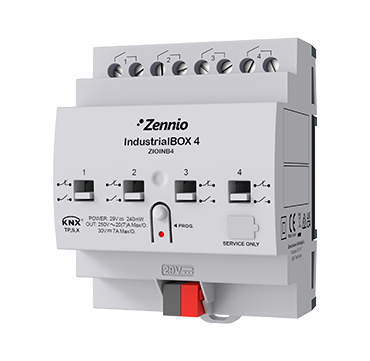

Zennio IndustrialBOX 4 KNX Actuator (Ref.: ZIOINB4)
The Zennio IndustrialBOX 4 is a versatile industrial KNX actuator designed for DIN rail installation. The device features 4 independent potential-free outputs, each suitable for loads up to 20 A and capacitive loads up to 200 µF. With support for KNX Secure and advanced logic functions, this actuator is ideal for various automation applications.
Main Features
- 4 independent potential-free outputs, each up to 20 A
- Supports capacitive loads up to 200 µF
- Maximum inrush current: 500 A (2 ms)
- 20 logic functions for advanced automation
- Manual control via physical switches
- DIN rail mounting according to IEC 60715
- Data saving and recovery in case of KNX bus failure
- Support for different phases in adjacent outputs
Technical Specifications
| Device Type | Electric operation control device |
|---|---|
| KNX Power Supply | 29 VDC (21-31 VDC) |
| Maximum Current per Output | 20 A |
| Maximum Load per Output | 5000 W (resistive), 1750 VA (inductive) |
| Capacitive Load | Up to 200 µF |
| Mechanical Lifetime | 1,000,000 operations |
| Electrical Lifetime | 250,000 operations at 20 A |
| Response Time | Up to 15 ms |
| Wire Cross-Section | 0.5-4 mm² (IEC) / 26-10 AWG (UL) |
| Installation | DIN rail (IEC 60715) |
| Dimensions | 67 x 90 x 70 mm (4 DIN units) |
| Protection Class | IP20 |
| Temperature Range | 0 .. +55 °C (operation), -20 .. +55 °C (storage) |
Output Specifications
The IndustrialBOX 4 features 4 individual outputs with the following characteristics:
- Output Type: Potential-free outputs via bistable relays
- Disconnection Type: Micro-interruption
- Maximum Block Current: 80 A
- Inrush Current: 500 A / 2 ms
- Compatibility: Supports different phases in adjacent outputs
- Restrictions: Mixing SELV and non-SELV power supplies is not allowed
Installation and Usage
The Zennio IndustrialBOX 4 is easy to install on a DIN rail. Please note that the device does not include built-in short-circuit or overload protection. It is recommended to use appropriate external protection devices. For optimal performance, refer to the user manual.
Applications
Ideal for industrial and residential environments requiring reliable automation solutions. Suitable for lighting, motor control, and other high-power applications.
Note: Always refer to the user manual for installation and operation instructions.
Related products

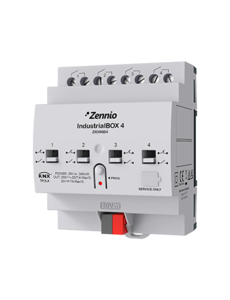

Industrial actuator with 4 relay outputs (20 A) and current measurement. Supports KNX Secure, manual control, phase connection, and logical functions. For DIN-rail mounting.
