MINiBOX 0-10V X2 | Universal actuator 2 0-10 V | 2-channel
€150,85 Incl. tax €202,76 Incl. tax. Out of stock, but available
Specifications
Information
MINiBOX 0-10V X2 Multifunction Actuator
Ref.: ZIO2X010

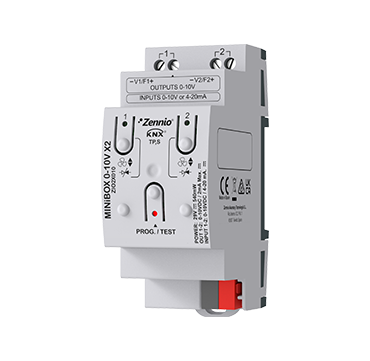

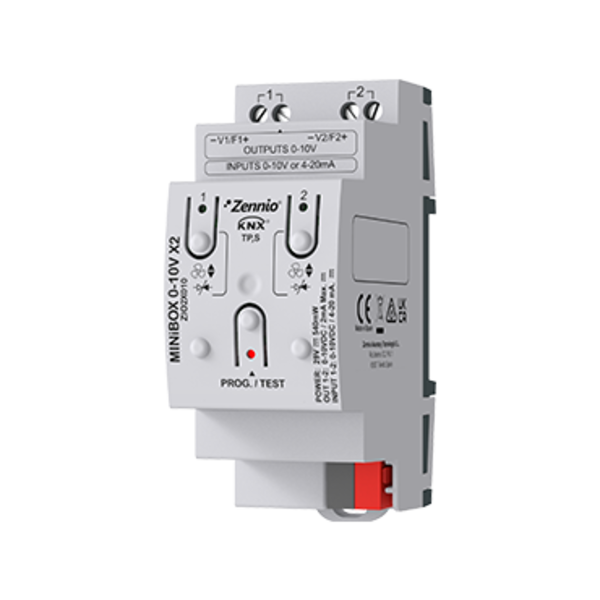

The Zennio MINiBOX 0-10V X2 is a compact and versatile actuator designed for DIN rail installation (2 DIN units wide). It features two configurable analog channels that can be individually or jointly set as 0-10 V inputs/outputs or 4-20 mA inputs. This actuator is ideal for applications such as controlling 2-pipe fan coil units or other HVAC systems.
Key Features
- 2 configurable analog channels (0-10 V output, 0-10 V input, or 4-20 mA input)
- Manual control via buttons with status indication through LEDs
- Integrated KNX BCU (TP1-256)
- 2 built-in thermostats for temperature control
- 10 programmable logic functions
- Galvanic isolation between the KNX bus and the inputs/outputs
- Data retention during power failure
- Compact design: only 67 x 90 x 36 mm
- DIN rail installation according to IEC 60715
Technical Specifications
| Property | Specification |
|---|---|
| KNX Supply Voltage | 29 VDC (typical), range 21-31 VDC |
| Maximum Power Consumption | 17.1 mA at 29 VDC, 22.5 mA at 24 VDC |
| Analog Outputs | 2 x 0-10 VDC, maximum load 2 mA per output |
| Analog Inputs | 2 x 0-10 VDC or 4-20 mA |
| Cable Cross-Section | 0.5-2.5 mm² (IEC), 26-12 AWG (UL) |
| Protection Class | IP20 |
| Operating Temperature | 0 to +55 °C |
| Storage Temperature | -20 to +55 °C |
| Humidity | 5% to 95%, non-condensing |
| Weight | 80 g |
| PCB CTI Index | 175 V |
Certifications and Compliance
The Zennio MINiBOX 0-10V X2 complies with CE, UKCA, and RCM standards, ensuring safe and reliable performance in various electrical installations.
