MINiBOX 0-10V X1 | Universal actuator 1 0-10 V | 1-channel
€134,20 Incl. tax €180,37 Incl. tax. Out of stock, but available
Specifications
Information

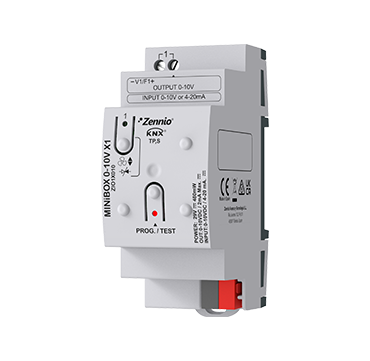

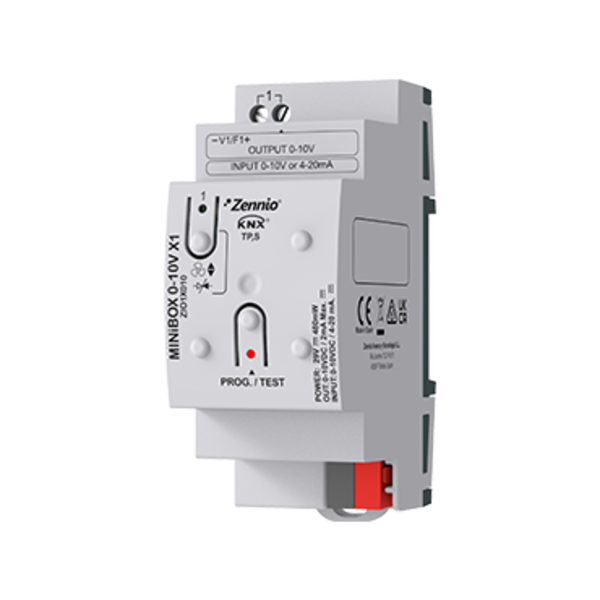

Zennio MINiBOX 0-10V X1 Multifunction Actuator
(Ref.: ZIO1X010)
The Zennio MINiBOX 0-10V X1 is a versatile actuator with 1 analog channel, configurable as a 0-10 V output, 0-10 V input, or 4-20 mA input. Ideal for precise control in KNX systems. Includes manual control and a fan-coil module.
Key Features
- 1 analog channel, configurable as a 0-10 V output, 0-10 V input, or 4-20 mA input.
- Galvanic isolation from the KNX bus for safety and reliability.
- Manual control with a push button and LED status indicators.
- Includes 1 thermostat and 10 logical functions for flexible control.
- Full data saving in case of power failure and seamless recovery.
- Compact size: 67 x 90 x 36 mm (2 DIN units).
Technical Specifications
| Device Type | Electronic control device |
|---|---|
| KNX Supply Voltage | 29 VDC SELV (21-31 VDC range) |
| Maximum KNX Consumption | 14.9 mA / 432.1 mW @ 29 VDC |
| External Power Supply | Not required |
| Operating Temperature | 0°C to +55°C |
| Protection Class | IP20 |
| Dimensions | 67 x 90 x 36 mm |
| Weight | 80 g |
0-10V Output Specifications
- Output Type: 0-10 VDC
- Maximum Load: 2 mA
- Connection Method: Screw terminal block
- Cable Cross-Section: 0.5-2.5 mm²
- Maximum Cable Length: 30 m
0-10V / 4-20mA Input Specifications
- Input Voltage: 0-10 VDC
- Input Current: 4-20 mA
- Connection Method: Screw terminal block
- Cable Cross-Section: 0.5-2.5 mm²
- Maximum Cable Length: 30 m
Installation
The MINiBOX 0-10V X1 is designed for mounting on a DIN rail (IEC 60715). Its compact design and versatile configuration make it suitable for various applications. LEDs indicate programming status and channel status for easy monitoring.
