KES Plus | KNX energy meter
€161,26 Excl. tax
€206,74 Excl. tax
€195,12 Incl. tax €250,15 Incl. tax. Out of stock, but available
€195,12 Incl. tax €250,15 Incl. tax. Out of stock, but available
Zennio energy meter for single or three-phase systems. Measures energy, cost, CO₂ emissions, and power. Configurable alerts and KNX compatible. Read more
Specifications
Brand:
Zennio
Article number:
ZIO-KESP
EAN:
8411080793263
Availability:
Out of stock, but available
Delivery time:
Will be shipped within approximately 8 working days.
Due to the holidays, orders may be delayed and pickup is not possible.
Information

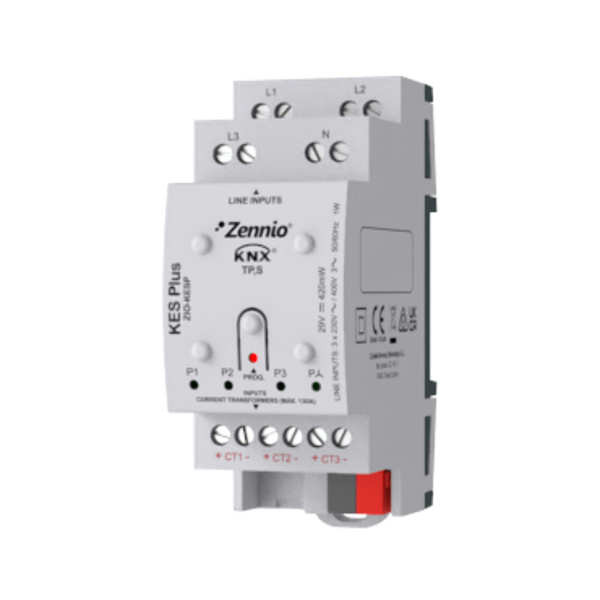

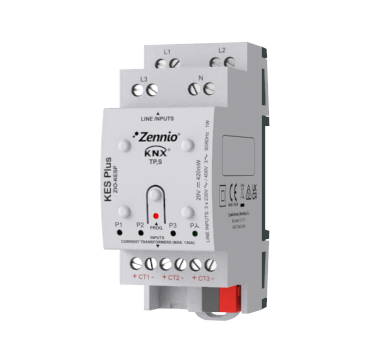

Zennio KES Plus KNX Energy Meter (Ref.: ZIO-KESP)
The Zennio KES Plus is an advanced KNX energy meter suitable for single-phase and three-phase systems. Key features include:
- Measurement of energy consumption (kWh) and costs, including CO₂ emissions.
- Support for up to 6 different tariffs.
- Instantaneous readings of active and reactive energy, voltage, and power.
- Integrated alarms to warn when limits are exceeded.
- Compatible with Zennio current transformers (ZN1AC-CST60, ZN1AC-CST120, 9900045).
- 10 logical functions for advanced automation in KNX systems.
Key Specifications:
- Dimensions: 67 x 90 x 36 mm (2 DIN units).
- DIN rail mounting (IEC 60715).
- Voltage range: 230 V~ / 400 V 3~, 0.01-260 A (depending on transformer).
- Protection rating: IP20.
- Operating temperature: 0 to +55 °C.
Note: Only compatible with original Zennio current transformers. Modification of transformer cables is not allowed.
