BIN 44 Universal interface with 4 binary inputs and 4 LED outputs
€82,82 Incl. tax €111,32 Incl. tax. Out of stock, but available
Specifications
Information

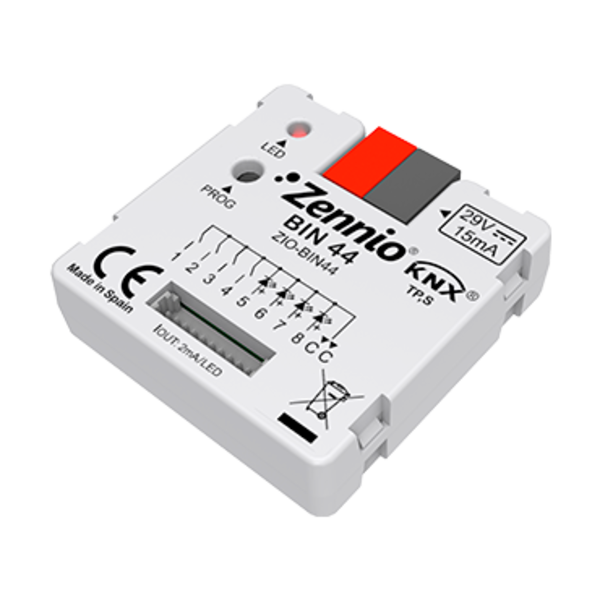

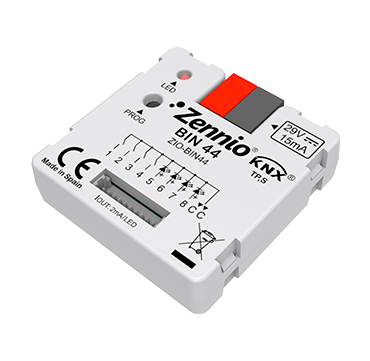

Zennio BIN 44 Universal KNX Interface with 4 Binary Inputs and 4 LED Outputs - Ref.: ZIO-BIN44
The Zennio BIN 44 is a compact and versatile KNX interface designed for installation in standard wall or distribution boxes. This device offers 4 configurable binary inputs and 4 LED outputs, making it suitable for a wide range of applications in smart homes and buildings.
Main Features:
- 4 binary inputs: Support sensors, switches, and potential-free push buttons.
- 4 LED outputs: Configurable for low-current LED control or as solid-state switches.
- Data retention: Ensures full data preservation during power outages.
- Compact design: Just 39 x 39 x 10.5 mm.
- Installation: Easy to mount in wall or distribution boxes.
Technical Specifications:
- Power supply via KNX: 29 VDC typical, range 21-31 VDC.
- Maximum current consumption: 12.4 mA at 29 VDC.
- Operating temperature: 0 to +55 °C.
- Binary inputs:
- Number: 4
- Operation: +3.3 VDC, 1 mA per input.
- Maximum cable length: 30 meters (@1 mm²).
- Connection: 10-wire connector with cable (included).
- LED outputs:
- Number: 4
- Output voltage: Up to 12 VDC per output.
- Output current: 2 mA per output.
- Connection: 10-wire connector with cable (included).
Installation Instructions:
The BIN 44 is designed for easy installation in standard wall or distribution boxes. Its compact design makes it ideal for applications with limited space. Powered directly via KNX, no external power source is required.
Applications:
With its versatile inputs and outputs, the Zennio BIN 44 is perfect for use in smart homes and buildings. It supports various types of switches, sensors, and LED control, making it an excellent choice for automation projects.
Why Choose the Zennio BIN 44?
The Zennio BIN 44 provides a reliable and flexible solution for KNX-based projects. Its advanced features and compact design meet the demands of modern automation systems.
