Lumento DX4 v2 PWM CV Dimmer 4 channels for LED loads DINrail
€228,23 Incl. tax €306,77 Incl. tax. Out of stock, but available
Specifications
Information

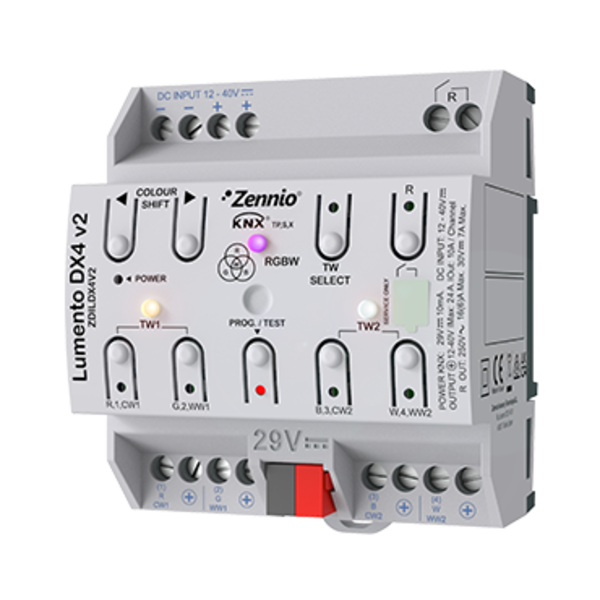

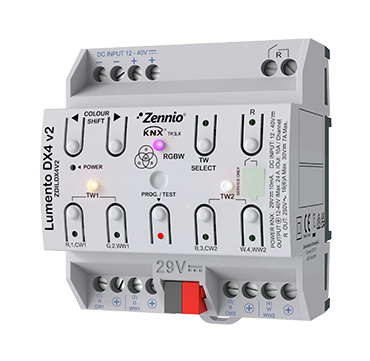

Zennio Lumento DX4 v2 LED Dimmer - Ref.: ZDILDX4V2
The Zennio Lumento DX4 v2 is an advanced 4-channel constant voltage PWM dimmer, designed for DC LED loads. It offers versatile configuration options and reliable performance, making it ideal for residential and commercial applications.
Key Features:
- 4 configurable channels: Supports RGBW, RGB+W, TW (Tunable White), and independent channels.
- Constant voltage regulation: Suitable for LED strips with a common anode (+).
- Relay output: 16 A relay for switching LED power supply or independent use.
- KNX Secure compatibility: Ensures safe integration into smart building systems.
- HCL (Human Centric Lighting): Supports advanced color temperature control for dynamic lighting.
- Manual control via push buttons and LED status indicators.
- Complete data saving in case of KNX bus failure or restart.
Technical Specifications:
- Power Supply: External 12-40 VDC (depending on connected LED strips).
- Max current per channel: 10 A.
- Total max current: 24 A.
- Number of channels: 4, suitable for monochrome, RGB, RGBW, or TW LED strips.
- Short-circuit and overheating protection included.
- Dimensions: 67 x 90 x 79 mm (4.5 DIN units).
- Mounting: DIN rail according to IEC 60715 TH35, with clamp fixation.
- Protection degree: IP20, for clean environments.
- Integrated KNX BCU (TP1-256) for seamless network connectivity.
Applications:
The Zennio Lumento DX4 v2 is ideal for smart lighting systems requiring flexibility, reliability, and advanced control capabilities. Its versatile channels and constant voltage support make it suitable for controlling monochrome, RGB, RGBW, or TW LED strips in various settings.
Why choose the Lumento DX4 v2?
With advanced features such as KNX Secure, HCL, and a robust relay output, this LED dimmer provides an efficient solution for both standard and complex lighting setups. Perfect for those seeking precision and versatility in LED lighting.
