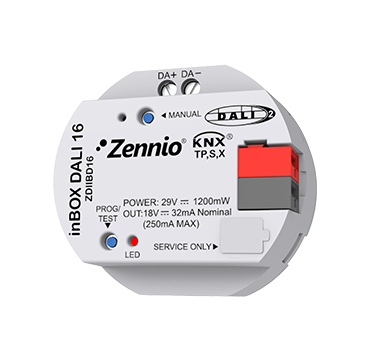

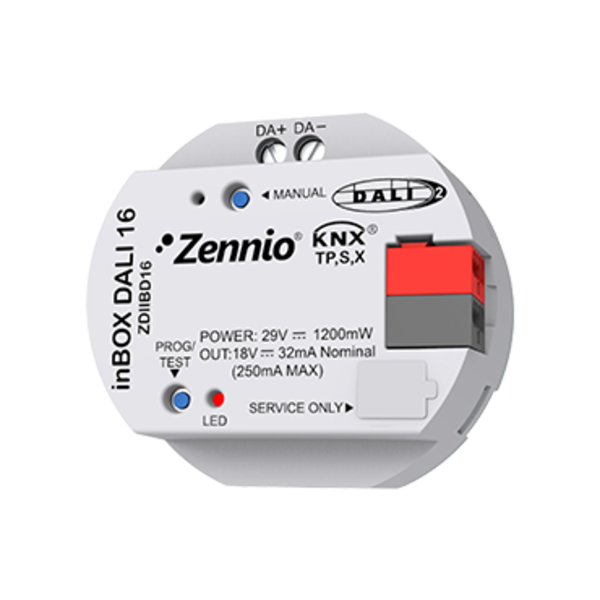

inBOX DALI 16 | 16 ballasts and 16 groups - 1 channel

Name: Zennio inBOX DALI 16 | 16 ballasts and 16 groups - 1 channel
Brand: Zennio
Price: 131.55 EUR
Availability: OutOfStock
Rating: 0 (0 reviews)

0 Review(s)

€131,55 Excl. tax €168,66 Excl. tax
€159,18 Incl. tax €204,07 Incl. tax. Out of stock, but available

Unit price: €131,55 / Piece

KNX-DALI interface for flush mounting, supports 16 ballasts and 16 groups. One channel, no external power required. Supports DALI-2, KNX Secure. Read more

Specifications

Brand:

Zennio

Article number:

ZDIIBD16

EAN:

8435740188817

Availability:

Out of stock, but available

Delivery time:

Will be shipped within approximately 8 working days.

Due to the holidays, orders may be delayed and pickup is not possible.

Information

Datasheet

Manual

KNX-DALI Interface for Flush Mounting (Ref: ZDIIBD16)

The KNX-DALI interface seamlessly integrates DALI and KNX systems in a compact design, perfect for flush mounting. It supports up to 16 ballasts and 16 lighting groups, all controlled through a single channel without the need for external power supply.

Main Features:

Supports up to 16 DALI ballasts and 16 lighting groups.
Compatible with DALI-2 standard, including DT8 (color management) and DT1 (emergency lighting).
Integrated KNX BCU (TP1-256).
Supports KNX Data Secure for safe communication.
Manual control and error detection via physical button.
ETS configuration for easy setup and maintenance.
Advanced features like burn-in, standby, and auto-off.

Technical Specifications:

Power Supply: 29 VDC via KNX, no external power required.
DALI Output: 18 VDC FELV, guaranteed current 32 mA (max 250 mA per channel).
Channel Capacity: Supports up to 16 DALI ballasts per channel.
Cable Length: Maximum length 300 m (@ 1.5 mm² cable cross-section).
Protection: Short-circuit, overload, and over-voltage protection included.
Connections: Screw terminal block, cable cross-section 0.5-2.5 mm² (IEC) or 26-12 AWG (UL).

Physical Specifications:

Dimensions: Ø 51.7 x 26.6 mm.
Installation: Suitable for installation in distribution or wall back boxes.
Protection Class: IP20, suitable for clean environments.
Temperature Range: Operating temperature 0 to +55 °C, storage temperature -20 to +55 °C.
