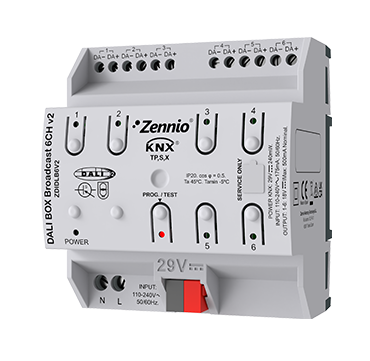

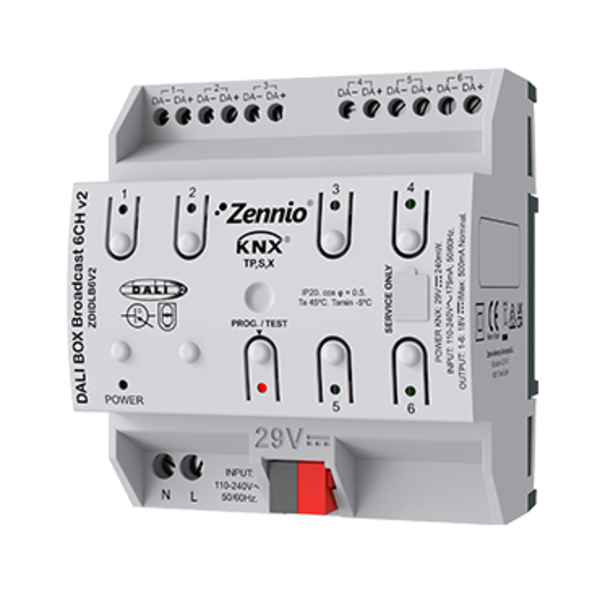

DALI BOX Broadcast 6CH v2 | 6 channels with up to 64 ballasts each
€309,11 Incl. tax €396,30 Incl. tax. Out of stock, but available
Specifications
Information
KNX-DALI Broadcast Interface 6CH v2 Art.-No.: ZDIDLB6V2
The KNX-DALI Broadcast Interface 6CH v2 is a versatile module that offers seamless control of up to 6 DALI channels. Each channel can control up to 64 ballasts, including color ballasts (DT8). With the ability to configure 20 scenes or sequences per channel, this device is ideal for complex lighting solutions.
Main Features:
- 6 channels, each with up to 64 ballasts
- Compatible with color ballasts (DT8)
- Support for KNX Data Secure
- Error detection and monitoring
- Manual dimming control
- 20 scenes or sequences per channel
- External power supply of 110-240 VAC
Technical Specifications:
| Feature | Specification |
|---|---|
| KNX Power Supply | 29 VDC SELV (21-31 VDC) |
| External Power Supply | 110-240 VAC 50/60 Hz |
| Maximum Power Consumption | 175 mA @ 110 VAC / 100 mA @ 230 VAC |
| Operating Temperature | -5 .. +45 °C |
| Protection Class | IP20 |
| Mounting | DIN rail (IEC 60715) |
| Dimensions | 67 x 90 x 79 mm (4.5 DIN units) |
Additional Features:
- Automatic ballast replacement
- Burn-in, standby, and auto-off functionality
- Memory for data retention in case of KNX bus failures
- LED status indicators per channel
With certifications such as the DALI Standard (IEC 62386) and compliance with CE, UKCA, and RCM directives, the KNX-DALI Broadcast Interface 6CH v2 is a reliable choice for professional lighting systems.
