Lumento C4 dimmer for DC LED loads, 4-channel constant current
€172,53 Incl. tax €221,19 Incl. tax. In stock (2)
Specifications
Information

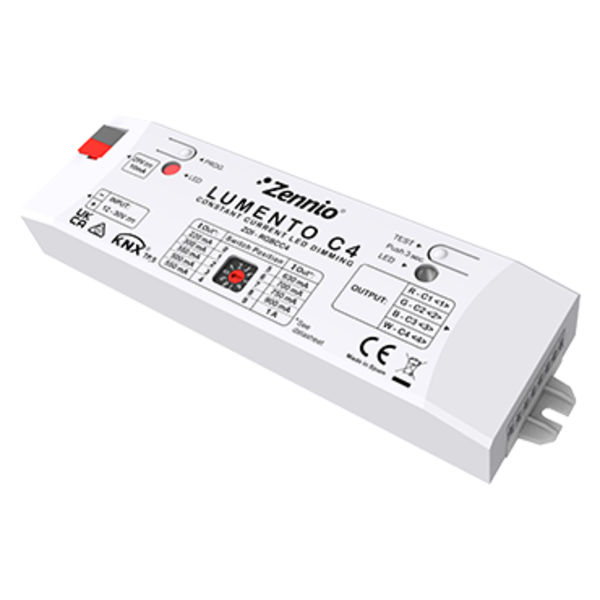

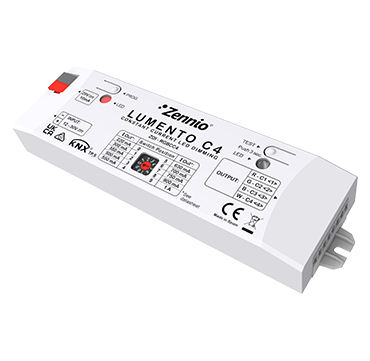

Zennio Lumento C4 - 4-Channel Constant Current LED Dimmer (Ref: ZDI-RGBCC4)
The Zennio Lumento C4 is a high-quality 4-channel LED dimmer designed for DC LED loads with constant current (CC) regulation. This dimmer supports RGBW configurations, 4 independent channels, or a combination of RGB and one individual channel, making it a versatile choice for advanced lighting solutions.
Key Features
- Supports constant current: 220, 300, 350, 500, 550, 630, 700, 750, 900, and 1000 mA
- Control of RGBW loads or 4 independent channels
- Integrated KNX BCU (TP1-256) for seamless automation
- Manual test button for channel functionality verification
- Easy surface mounting on panels or enclosures
Technical Specifications
- Number of channels: 4
- Maximum load per channel: 1000 mA
- Supply voltage: 12-30 VDC
- Dimensions: 165 x 44 x 23 mm
- Operating temperature: 0°C to +55°C
- Protection class: IP20 (for clean environments)
- Safety features: Short-circuit protection and overheating protection
Installation Instructions
The Lumento C4 can be easily mounted on a flat surface such as a panel or enclosure. Ensure the device is installed close to both the load and the external power supply. Follow the correct polarity to avoid errors.
Notes
- The programming LED indicates programming mode (red).
- The device is designed for use in clean environments.
- Suitable for a wide range of applications thanks to its flexible configuration options.
