Lumento C3 dimmer for DC LED loads, 3-channel constant current
€162,26 Incl. tax €208,02 Incl. tax. Out of stock, but available
Specifications
Information

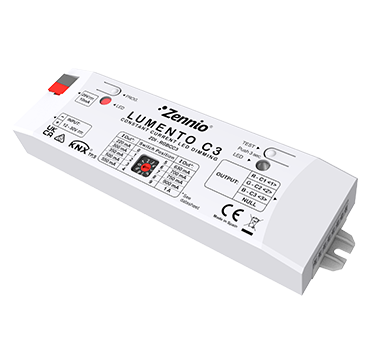

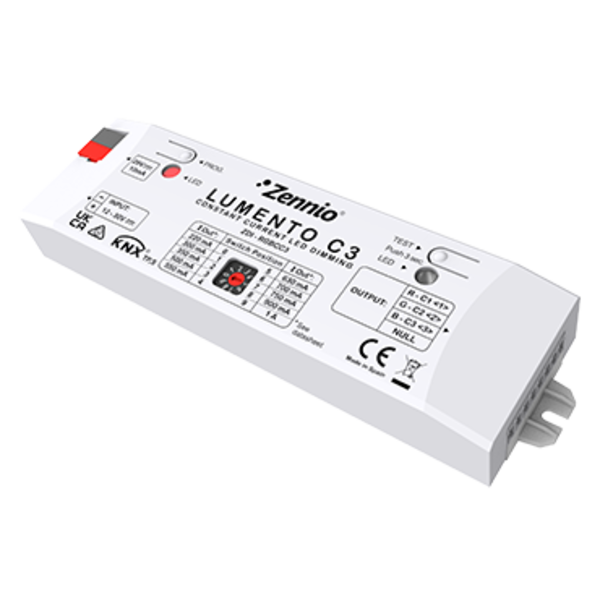

Zennio Lumento C3 - 3-Channel Constant Current LED Dimmer (Ref: ZDI-RGBCC3)
The Zennio Lumento C3 is a high-quality 3-channel LED dimmer specifically designed for DC LED loads with constant current (CC) regulation. This versatile device supports RGB configurations or independent channel control and is ideal for advanced lighting solutions.
Key Features
- Supports constant current: 220, 300, 350, 500, 550, 630, 700, 750, 900, and 1000 mA
- Control of RGB loads or 3 independent channels
- Integrated KNX BCU (TP1-256) for seamless automation
- Manual test button for channel functionality verification
- Easy surface mounting in panels or enclosures
Technical Specifications
- Number of channels: 3
- Maximum load per channel: 1000 mA
- Supply voltage: 12-30 VDC
- Dimensions: 165 x 44 x 23 mm
- Operating temperature: 0°C to +55°C
- Protection class: IP20 (for clean environments)
- Safety features: Short-circuit protection and overheating protection
Installation Instructions
The Lumento C3 can be easily mounted on a flat surface such as a panel or enclosure. Ensure the device is installed close to both the load and the external power supply. Follow correct polarity to avoid errors.
Notes
- The programming LED indicates programming mode (red).
- The device is designed for use in clean environments.
- Suitable for a wide range of applications thanks to its flexible configuration options.
