DIMinBOX DX2 | 2-channel, universal RLC, LED, CFL 310-600W
€212,58 Incl. tax €272,54 Incl. tax. Out of stock, but available
Specifications
Information

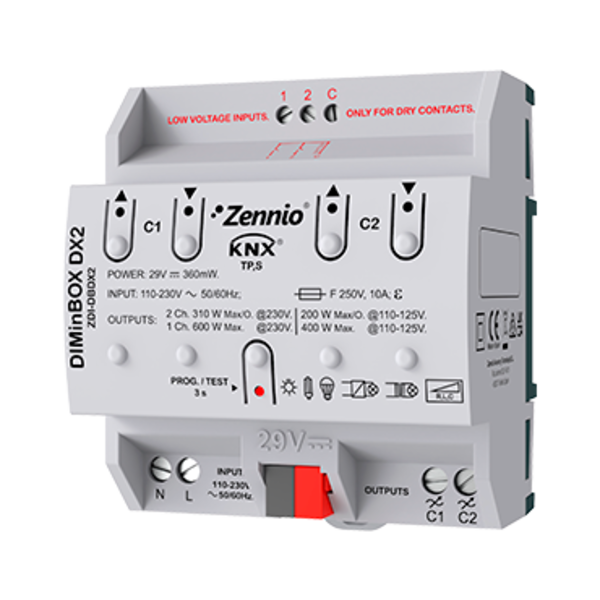

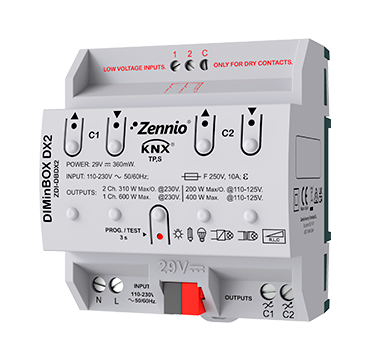

Zennio DIMinBOX DX2 Universal Dimmer (RLC, LED, CFL) Ref.: ZDI-DBDX2
The Zennio DIMinBOX DX2 is a versatile universal dimmer designed for DIN-rail installation. With 2 channels, this dimmer supports up to 310 W per channel (maximum 600 W total at 230 VAC) and is compatible with various loads, including RLC, dimmable LED, and CFL lamps. This device features advanced functionalities such as automatic load detection, configurable dimming curves, and manual control via buttons on the front panel.
Key Features
- 2 channels for RLC, LED, and dimmable CFL lamps.
- Maximum power:
- 310 W per channel at 230 VAC (600 W total).
- 200 W per channel at 110 VAC (400 W total).
- Automatic detection of load type (RLC).
- Manual control via buttons on the device's front panel.
- 10 independent logical functions for flexible applications.
- Protection against short circuits, overvoltage, overheating, and parameterization errors.
- 2 analog/digital inputs for sensors, push buttons, or temperature probes.
- Compatible with motion sensors.
Technical Specifications
| General | Specification |
|---|---|
| Dimensions | 67 x 90 x 79 mm (4.5 DIN units) |
| Mounting | DIN rail (IEC 60715 TH35) |
| Weight | 210 g |
| Protection Class | IP20 (for clean environments) |
| Operating Temperature | 0 .. +55 °C |
| Storage Temperature | -20 .. +55 °C |
| Operating Humidity | 5 .. 95% |
| Storage Humidity | 5 .. 95% |
| Electrical | Specification |
|---|---|
| KNX Bus Supply | 29 VDC (typical), range: 21-31 VDC |
| External Power Supply | 110-230 VAC, 50/60 Hz |
| Maximum Current Consumption | 11 mA @ 29 VDC |
| Fuse Protection | 250 V, 10 A, fast acting (F) |
| Cable Connection | Screw terminals, 1.5-4 mm² |
Compatible Loads
- RLC Loads:
- 310 W per channel (600 W total) at 230 VAC.
- 200 W per channel (400 W total) at 110 VAC.
- Dimmable LED Lamps:
- 310 W per channel (600 W total) at 230 VAC.
- 200 W per channel (400 W total) at 110 VAC.
- Dimmable CFL Lamps:
- 310 W per channel (600 W total) at 230 VAC.
- 200 W per channel (400 W total) at 110 VAC.
Additional Features
- Manual control via buttons on the front panel.
- Status indication via LEDs:
- Red: programming mode.
- Green: test mode.
- Blinking: error detected.
- Memory function during power failure: retains settings as per parameterization.
Note: Compatible only with dimmable loads. Please refer to the technical documentation for compatibility details and specific configuration instructions.
