ZCL6H230V2 KNX heating actuator | 6-fold, 6 inputs
€199,85 Incl. tax €268,62 Incl. tax. Out of stock, but available Manual
Specifications
Information

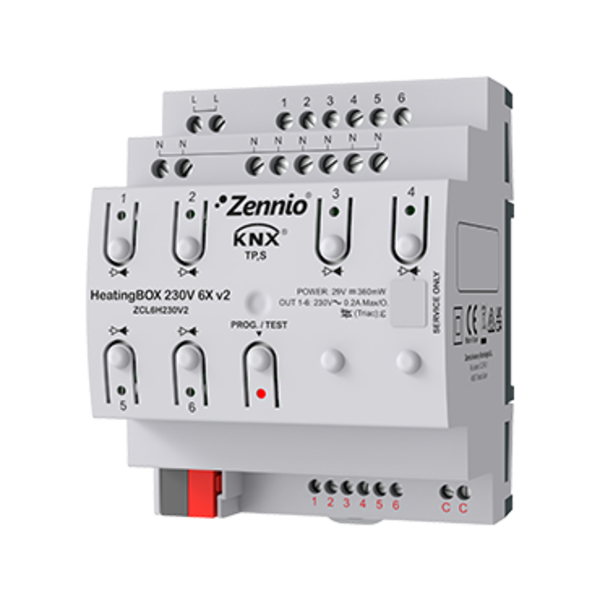

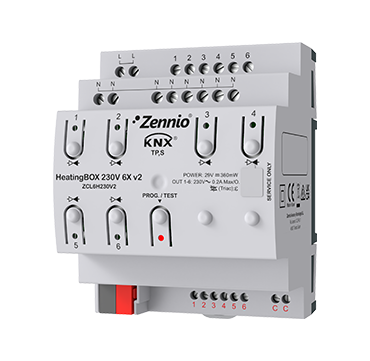

Heating Actuator 230V 6X v2 art.nr.: ZCL6H230V2
The heating actuator is designed for water-based climate systems, providing control over up to 6 outputs for on/off valves operating at 230 VAC. It features an integrated KNX BCU, independent thermostats, and manual control with LED status indicators.
Main Features:
- 6 configurable outputs for 230 VAC valves
- 6 independent thermostats
- 6 analog/digital inputs
- 10 logic functions
- Manual control with LED status indicators
- Common 230 VAC power input for all outputs
- Data saving in case of KNX bus failure
- Dimensions: 67 x 90 x 70 mm (4 DIN units)
Technical Specifications:
| Power Supply | 230 VAC 50/60 Hz |
|---|---|
| KNX Voltage | 29 VDC (21-31 VDC range) |
| Outputs | 6 (max. 5 valves per output) |
| Inputs | 6 analog/digital |
| Protection Class | IP20 |
Note: The heating actuator includes short-circuit and overload protection and is easy to install with a common neutral connection.
