ZoningBOX 6-zone actuator for ducted air conditioning (max 6 zones)
€239,01 Incl. tax €321,25 Incl. tax. Out of stock, but available
Specifications
Information

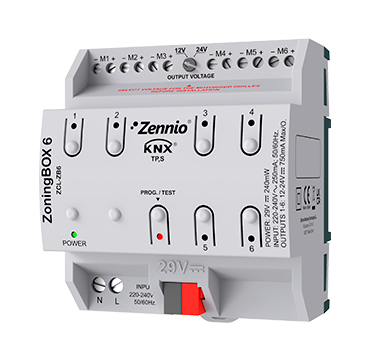

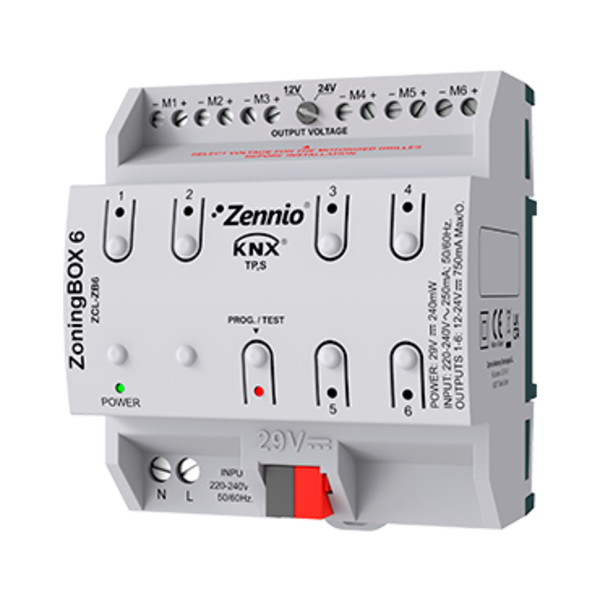

Zennio ZoningBOX 6 - Zoning actuator for air conditioning art.nr. ZCL-ZB6
Description:
The Zennio ZoningBOX 6 (art.nr. ZCL-ZB6) is an advanced actuator for ducted air conditioning, designed to control up to 6 zones with the ability to control up to 2 motorized grilles per zone. The device provides full control over the air conditioning system and can manage up to 12 zones by adding additional modules. The ZoningBOX 6 supports 12-24 VDC grilles and features manual control via buttons and LED status indicators for clear feedback.
Features:
- 6 outputs for motorized grilles, 12V or 24V (selectable via switch)
- Up to 12 zones can be managed with the addition of ZoningBOX 4/6 modules
- Temperature management per zone is possible
- Manual control via buttons and LED status indicators
- 230V power supply for 4 of the outputs
- Integrated KNX BCU (TP1-256) for KNX bus connection
- Dimensions: 67 x 90 x 79 mm (4.5 DIN units)
- DIN rail mounting (IEC 60715)
- CE and UKCA compliance
- Stored data remains intact during power failure
Important note:
Ensure that the switch position matches the voltage of the grille before connecting the ZoningBOX. This prevents damage to connected equipment.
Technical Specifications:
| Feature | Description |
|---|---|
| Number of outputs | 6 |
| Output type | Solid state switch, 12V or 24V (selectable) |
| Maximum load per output | 2 grilles, 750mA |
| Power supply | 230V AC, 50/60Hz |
| Temperature range | -5°C to +45°C |
| Protection class | IP20 |
| Mounting | DIN rail (IEC 60715) |
Installation & Use:
The ZoningBOX 6 is easy to install on a standard DIN rail inside an electrical panel. The device is designed for continuous operation and has a long lifespan thanks to its robust construction and built-in overload and short-circuit protection.
Note: The ZoningBOX 6 requires an external 230V AC power supply for the operation of 4 out of the 6 outputs. Ensure that all wiring is properly connected and the correct voltage is used to avoid damage.
