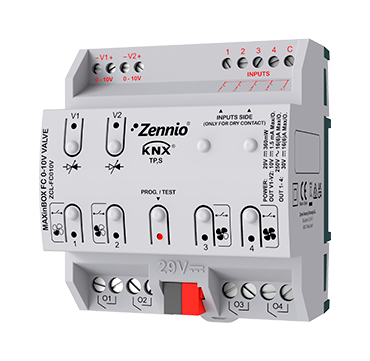

MAXinBOX FC 0-10V VALVE - Fan-Coil Actuator | 4-fold, 4 inputs
€225,05 Excl. tax
€302,49 Excl. tax
€272,31 Incl. tax €366,01 Incl. tax. Out of stock, but available
€272,31 Incl. tax €366,01 Incl. tax. Out of stock, but available
Fan-coil controller for 2- or 4-pipe systems with 0-10 V valves, up to 4 fan speeds, 4 multifunctional inputs, and logic functions. Read more
Specifications
Brand:
Zennio
Article number:
ZCL-FC010V
EAN:
8411080789785
Availability:
Out of stock, but available
Delivery time:
Will be shipped within approximately 8 working days.
Information
MAXinBOX FC 0-10V VALVE - art.nr.: ZCL-FC010V
Comprehensive solution for 2- or 4-pipe systems
Description
The Zennio fan-coil controller is designed for 2- or 4-pipe systems with 0-10 VDC valves and up to 4 fan speeds. It features manual operation with LED status indicators, 4 multifunction inputs, 2 thermostats, and 10 logic functions. Compatible with KNX systems and suitable for DIN-rail mounting, this device ensures reliable and flexible HVAC management capabilities.
Technical Specifications
- Outputs: 4 potential-free outputs (16 A C-load), suitable for controlling up to 4 fan speeds.
- Valve control: 2 x 0-10 VDC individual outputs, maximum load per output 1.5 mA.
- Inputs: 4 analog/digital multifunction inputs for binary sensors, push buttons, temperature probes, or motion sensors.
- Dimensions: 67 x 90 x 79 mm (4.5 DIN units).
- Power supply: KNX voltage 21-31 VDC (typical 29 VDC), maximum current consumption: 11 mA @ 29 VDC.
- Maximum cable section: 1.5-4 mm² (IEC) or 26-10 AWG (UL).
- Inputs: Dry contacts (3.3 VDC), compatible with NTC temperature probes (±0.5 °C accuracy).
- Environmental requirements: Operating temperature 0 to +55 °C, storage -20 to +55 °C, humidity 5-95%.
- Mechanical relay lifespan: At least 3,000,000 cycles.
- Electrical relay lifespan: At least 100,000 cycles at 8 A load.
Certifications and Standards
- CE, UKCA, and RCM compliance.
- Class B complementary characteristics.
- IP20 protection class for clean environments.
- DIN-rail mounting according to IEC 60715 (35 mm).
- Compatibility with KNX TP1-256.
