HeatingBOX 24V 8X 8 outputs 24 VAC/DC | ZCL-8HT24
€216,06 Incl. tax €290,40 Incl. tax. Out of stock, but available Manual
Specifications
Information

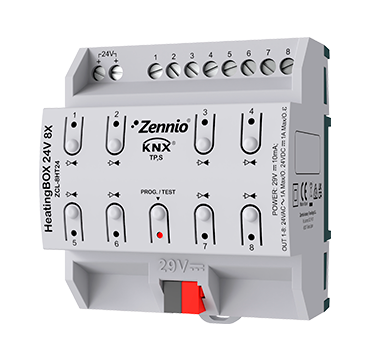

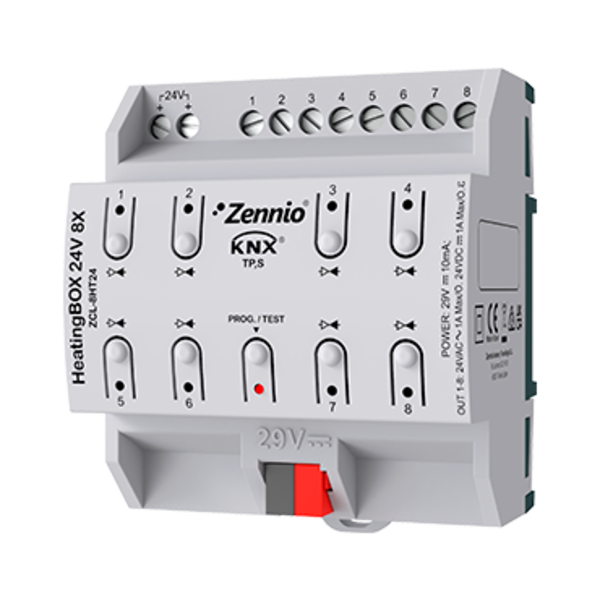

Heating Actuator 24V 8X | Art.nr.: ZCL-8HT24
The Heating Actuator 24V 8X is a KNX-compatible heating actuator designed for water-based climate systems. This device supports up to 8 on/off valves operating at 24 VAC/DC and offers advanced features such as short-circuit protection, independent thermostats, and logic functions.
Main Features
- 8 configurable outputs for 24 VAC/DC valve control
- 8 independent thermostats
- 10 configurable logic functions
- Manual control via buttons with LED status indicators
- Common power input for easier installation
- Data backup in case of KNX bus failure
- Short-circuit and overload protection
Technical Specifications
| Number of Outputs | 8 |
|---|---|
| Output Type | Solid state switching device |
| Maximum Load per Output | 1 A (stationary), 6 A (inrush current) |
| Operating Voltage | 24 VAC 50/60 Hz or 24 VDC |
| KNX Power Supply | 29 VDC (typical), range 21-31 VDC |
| Dimensions | 67 x 90 x 79 mm (4.5 DIN units) |
| Protection Class | IP20 |
Note
The Heating Actuator 24V 8X delivers reliable performance and is ideal for heating and climate systems. Its integrated short-circuit protection and compact DIN rail installation make it an excellent choice for residential and commercial applications.
