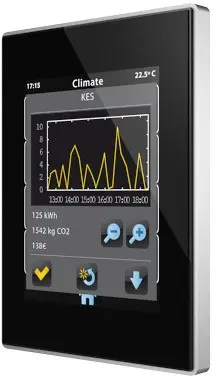

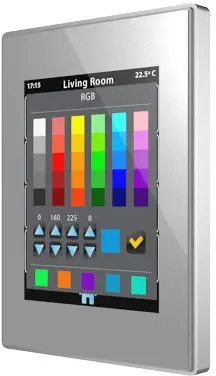

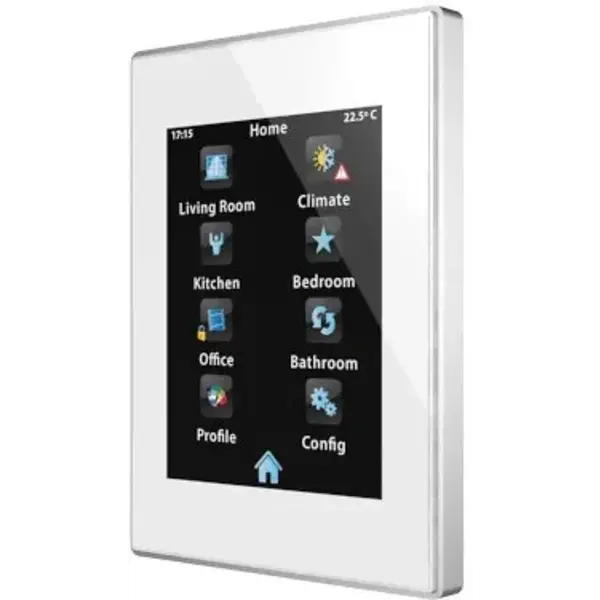

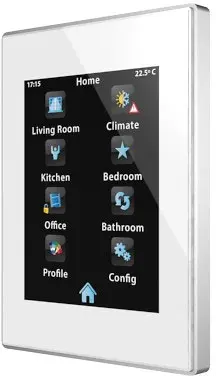

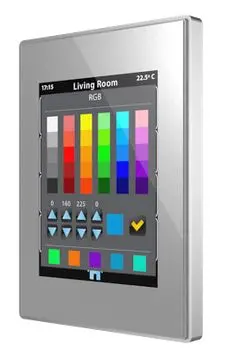

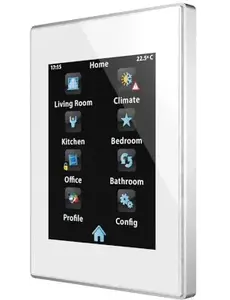

Z41 Pro (PVC-Alu Frame) KNX Touch Display with Temperature Sensor
€587,41 Incl. tax €753,10 Incl. tax. Out of stock, but available
Specifications
Information
Z41 Pro (PVC-Alu Frame) KNX Touch Display with Temperature Sensor
The Zennio Z41 Pro is an innovative and elegant KNX touch display that integrates seamlessly into residential and professional environments. Offering up to 96 configurable functions and a built-in temperature sensor, it delivers versatile and efficient control options.
Main Features
- 4.1" capacitive color touch panel with 16 million colors
- Available in various frames: PVC, aluminum
- Up to 12 pages and 96 configurable functions
- Built-in temperature sensor and 2 independent thermostats
- Supports schedules, macros, and notifications
- Remote control via the free Z41 Remote app on a smartphone
- Magnetic mounting in portrait or landscape orientation
- USB and Ethernet connections
Technical Specifications
| Display | 4.1” LCD, 320x240 pixels, 16 million colors |
|---|---|
| Power Supply | 12-29 VDC |
| KNX Bus Consumption | 29 VDC, 6 mA |
| Temperature Range | -10°C to +50°C (sensor), 5°C to +45°C (operation) |
| Connections | KNX, Ethernet (RJ45), Mini-USB, 2 inputs |
| Protection Class | IP20 |
| Weight | 226 g (PVC), 237 g (Aluminum) |
Important Note
Ensure that the flush-mounted box is airtight for accurate temperature readings. Use suitable sealing materials such as polyurethane foam or silicone.
Included Accessories
- RJ45 cable
- Mounting materials
- Installation manual
Mounting and Installation
- Mount the metal plate into a standard flush-mounted box with screws.
- Connect the KNX bus, power supply, and Ethernet port.
- Place the display on the metal plate and secure it using magnetic mounting.
- For landscape orientation, rotate the device 90° counterclockwise.
More technical details and manuals are available on the official Zennio website.
