Z35 v2 Touch panel 3.5” with humidity probe
€315,27 Incl. tax €404,20 Incl. tax. Out of stock, but available
Specifications
Information

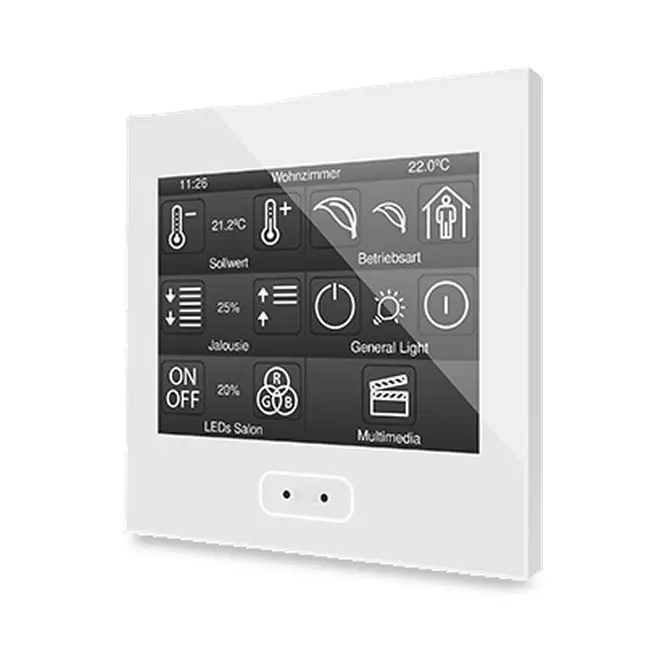

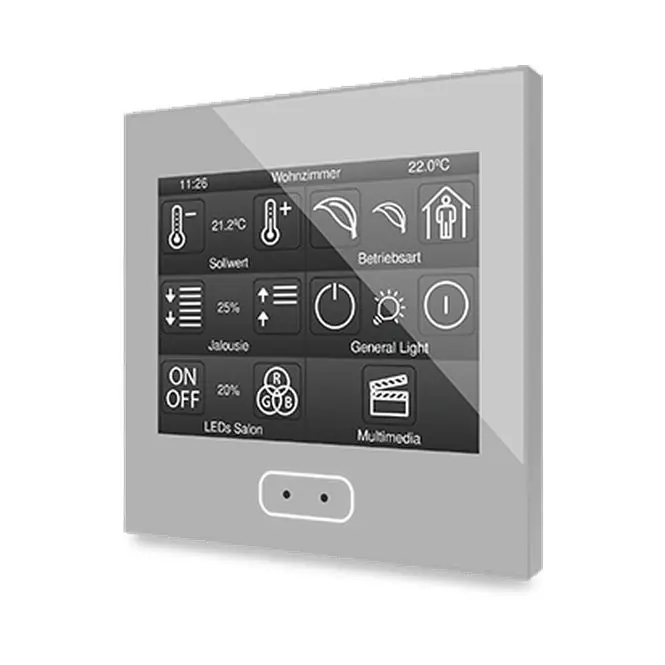

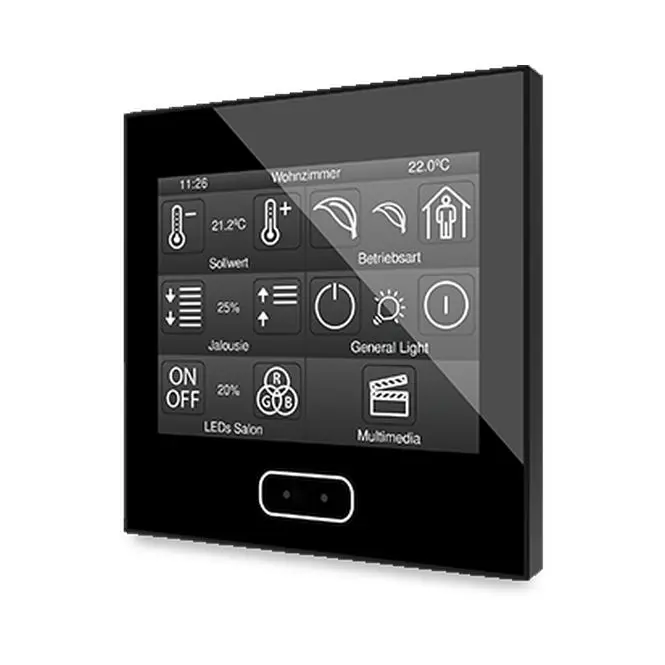

Zennio Z35 v2 Capacitive Touch Panel
The Zennio Z35 v2 is a high-quality capacitive touch panel with a 3.5” display (320x240 pixels) and an elegant design, available in white, silver, and anthracite. It offers advanced features, making it ideal for home and building automation.
Main Features
- 3.5” capacitive touch display with backlight
- Integrated sensors for temperature, humidity, ambient light, and motion detection
- Up to 56 controls/indicators across 7 configurable pages
- 2 independent thermostats
- Screensaver with date, time, and temperature display
- Automatic brightness adjustment via ambient light sensor
- 4 analog/digital inputs for switches, sensors, or motion detectors
- Full data retention in case of KNX bus failure
Technical Specifications
| Property | Description |
|---|---|
| Dimensions | 86 x 86 x 34.4 mm |
| Available Colors | White (RAL 9016), Silver (RAL 9006), Anthracite (RAL 9004) |
| Power Supply | 29 VDC (typical), range 21-31 VDC |
| Temperature Range | Operating: 0 .. +55 °C, Storage: -20 .. +55 °C |
| Humidity | 5% .. 95% (non-condensing) |
| Protection Class | IP20, suitable for clean environments only |
| Installation | Flush mount on back box |
Accessories
- Temperature sensor
- Motion detector
Applications
The Zennio Z35 v2 touch panel is perfect for residential and commercial applications, such as climate control, lighting, and energy management in smart homes or buildings.
Certifications
This product complies with CE, UKCA, and RCM directives.
Ordering Options
Choose from three stylish colors: White, Silver, and Anthracite.
