Zennio Z28 KNX Touch Display 2.8"
€249,55 Incl. tax €319,93 Incl. tax. Out of stock, but available
Specifications
Information

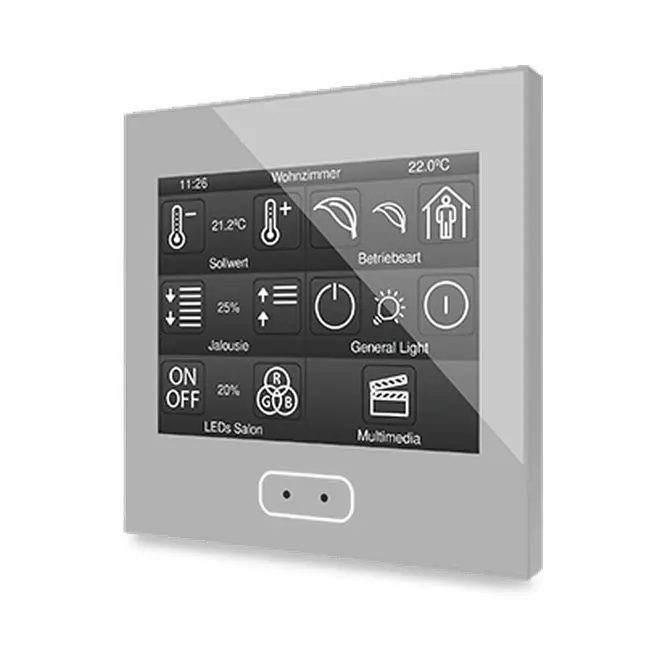

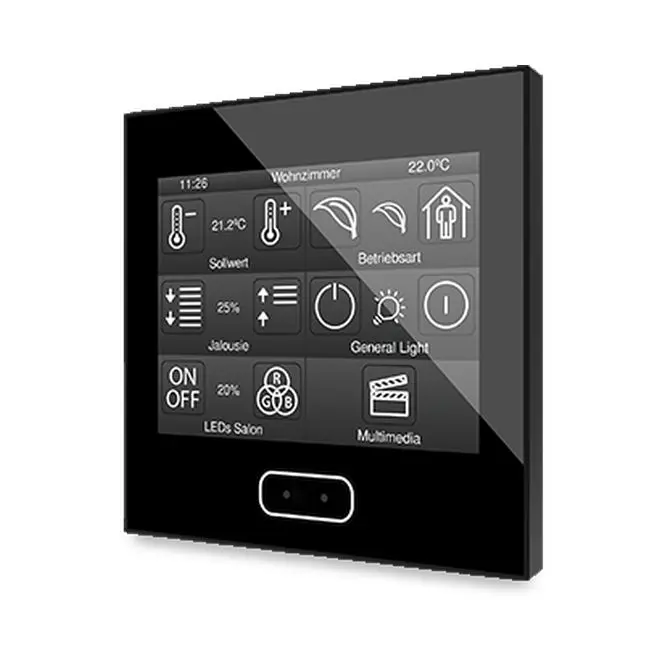

Zennio Z28 KNX Touch Display 2.8"
The Zennio Z28 2.8" capacitive touch display combines modern design with advanced functionality. Designed for 70x70 mm frames (ZS70 series and Jung LS series), this panel offers intuitive control and high performance in a compact housing.
Key Features
- 2.8" capacitive display with a resolution of 240x320 pixels.
- Available in white (RAL 9016), silver (RAL 9006), and anthracite (RAL 9004).
- Up to 35 control points across 5 pages plus a settings page.
- Built-in brightness and proximity sensors for automatic adjustments.
- 2 independent thermostats for heating and cooling.
- 2 analog/digital inputs for sensors, switches, or motion detectors.
- Password protection and control hiding options available.
Technical Specifications
| Power Supply: | KNX bus 21-31 VDC, typically 29 VDC |
| Dimensions: | 71 x 71 x 36.6 mm |
| Operating Temperature: | 0 .. +55 °C |
| Protection Class: | IP20 (for clean environments) |
| Input Types: | 2 analog/digital inputs, max. cable length 30 m |
This versatile panel supports lighting, HVAC, shading, RGB(W) control, and more. It features an integrated KNX BCU (TP1-256), ensuring seamless operation within any KNX system.
