Tecla 70 X4 Touch sensor push button 4-fold
€130,10 Incl. tax €166,80 Incl. tax. Out of stock, but available
Specifications
Information

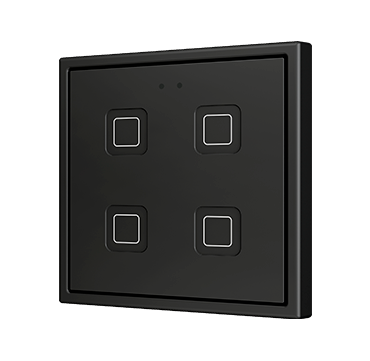

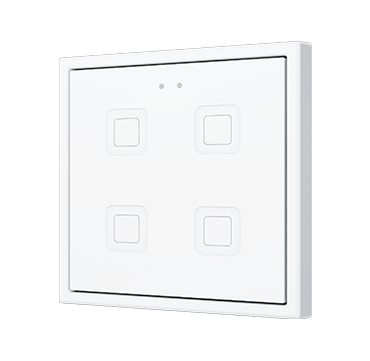

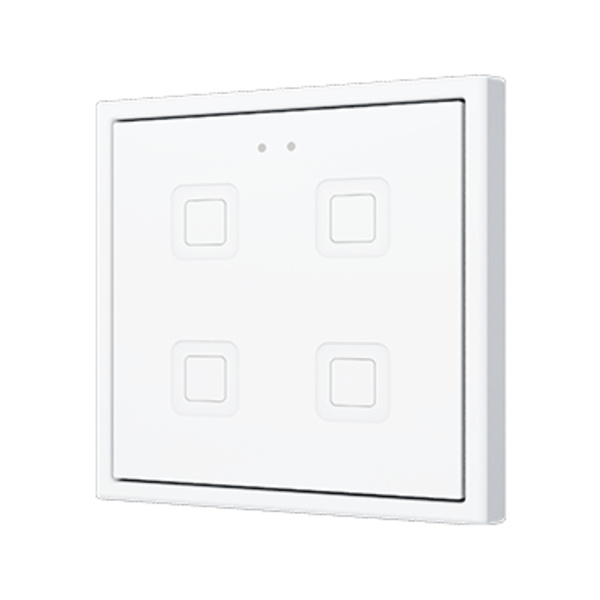

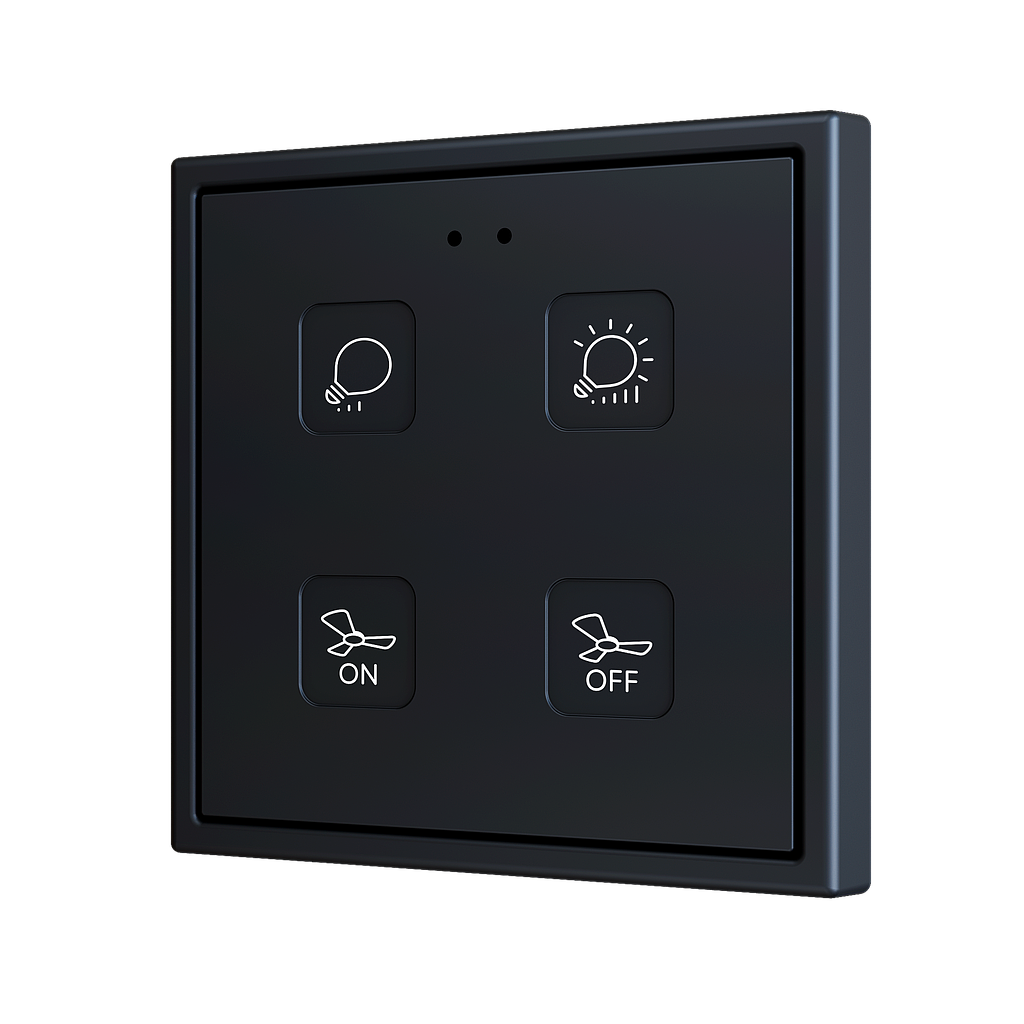

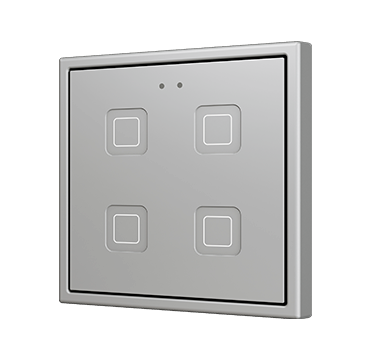

Zennio Tecla 70 X4 - Fourfold Capacitive Touch Sensor
The Zennio Tecla 70 X4 is a capacitive touch sensor with 4 touch zones, designed for advanced control in smart buildings. This versatile sensor features customizable icons, backlighting, and integrated sensors for temperature, brightness, and proximity. The Tecla 70 X4 is available in matte white, silver, anthracite, or custom designs and is compatible with 70x70 mm frames.
Main Features
- Capacitive touch sensor with 4 touch zones
- Backlighting with adjustable brightness
- Integrated sensors: temperature, brightness, and proximity
- Built-in thermostat with PI controller for heating and cooling
- Supports KNX Data Secure for secure communication
- Acoustic feedback upon touch
- 2 analog/digital inputs for additional functionalities
- Complete data recovery after power failure
Technical Specifications
| Type | Tecla 70 X4 (touch sensor with 4 zones) |
|---|---|
| Power Supply | 21-31 VDC via KNX bus |
| Maximum Power Consumption | 8.3 mA at 29 VDC (typical) |
| Dimensions | 70.5 x 70.5 x 22.6 mm |
| Protection Rating | IP20 (for clean indoor environments) |
| Operating Temperature | 0 to +55 °C |
| Storage Temperature | -20 to +55 °C |
| Relative Humidity | 5% to 95% (non-condensing) |
| Connections |
|
| Sensor Range |
|
| Material | PC/ABS (flame-retardant, halogen-free) |
Installation
The Zennio Tecla 70 X4 is installed in a standard flush-mount box and is compatible with 70x70 mm frames. No external power supply is required thanks to the integrated KNX-BCU.
Important Notes
- The frame is sold separately and is not included with the product.
- Support for KNX Data Secure ensures secure communication.
Why Choose the Zennio Tecla 70 X4?
The Zennio Tecla 70 X4 offers the perfect combination of style and functionality. With 4 touch zones, customizable icons, and integrated sensors, it is the ideal solution for modern building automation systems.
