Tecla XL X4 Touch Sensor 4-fold with thermostat
€154,83 Incl. tax €198,50 Incl. tax. Out of stock, but available
Specifications
Information

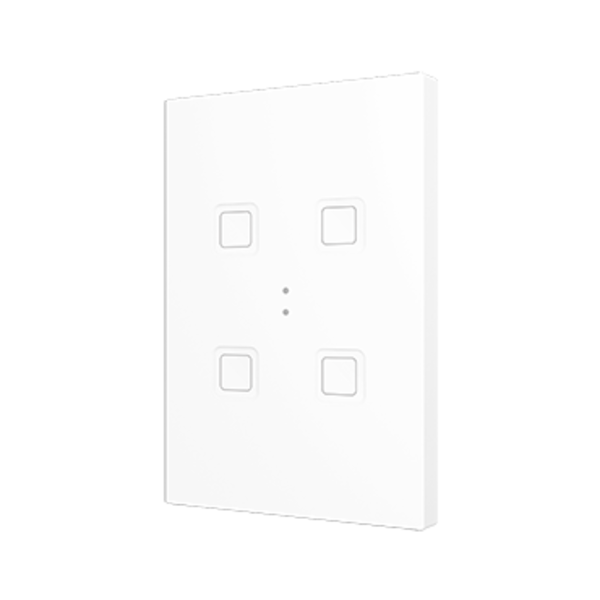

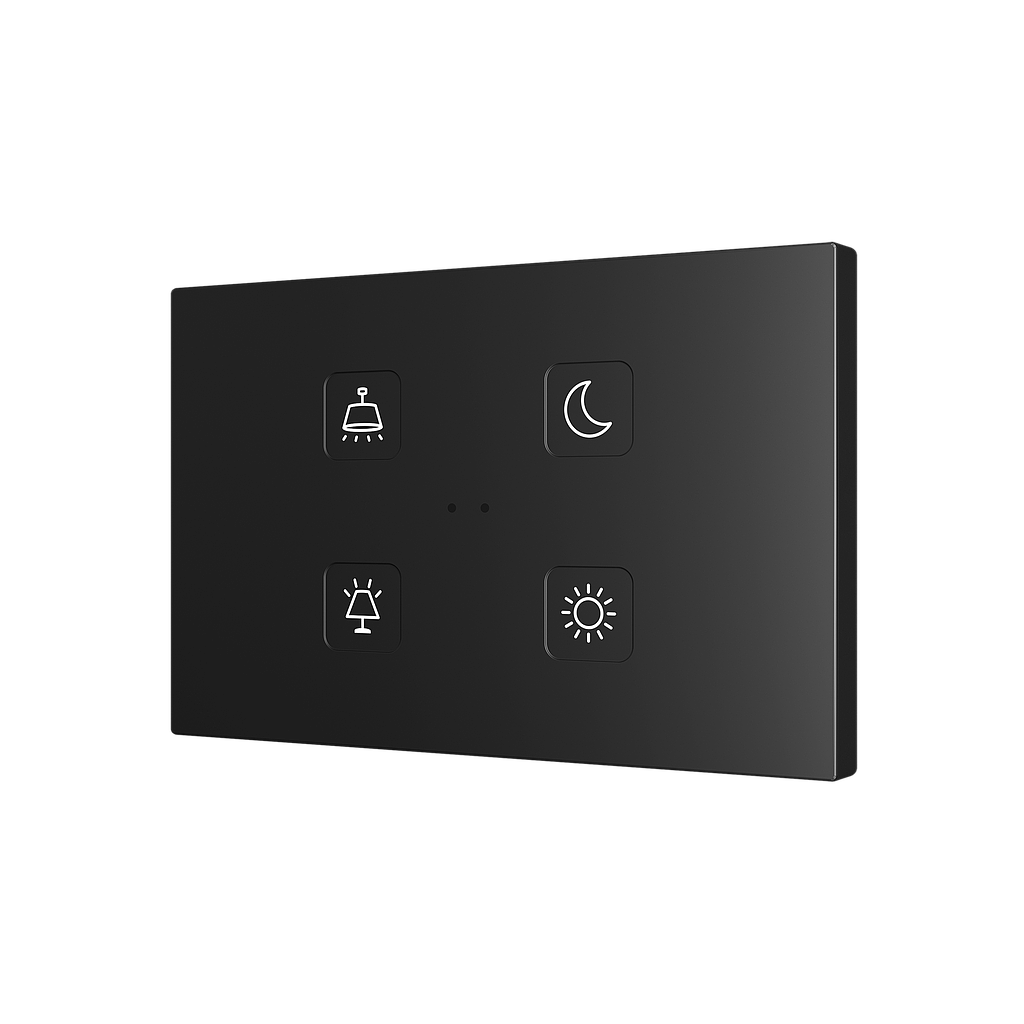

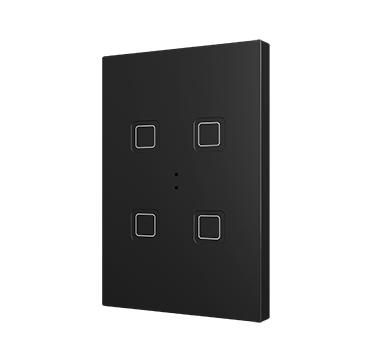

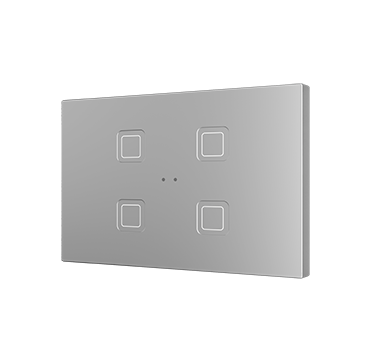

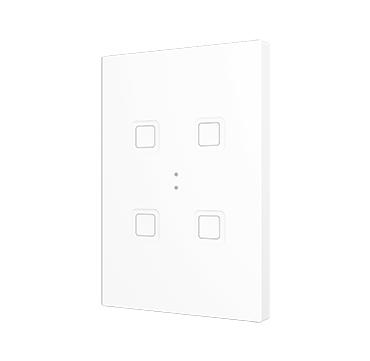

Zennio KNX Touch Sensor Tecla XL - 4-fold
The Zennio Tecla XL is a premium capacitive KNX touch sensor with 4 zones, designed for advanced automation in modern buildings. This sensor combines style and functionality, offering customizable icons, backlighting, and integrated sensors for temperature, brightness, and proximity. The Tecla XL is available in matte white, silver, anthracite, or custom designs and is compatible with European, British, Italian, Australian, and American back boxes.
Main Features
- Capacitive touch sensor with 4 touch zones
- Backlighting with adjustable brightness
- Integrated sensors for temperature, brightness, and proximity
- Built-in thermostat with high precision
- Acoustic feedback upon touch
- Complete data recovery after power failure
- Suitable for portrait or landscape mounting
Technical Specifications
| Type | Tecla XL | 4-fold |
|---|---|
| Power Supply | 21-31 VDC via KNX bus |
| Maximum Power Consumption | 12.8 mA at 29 VDC (typical) |
| Dimensions | 119.4 x 79.8 x 23.2 mm |
| Protection Rating | IP20 (for indoor use) |
| Operating Temperature | 0 to +55 °C |
| Humidity | 5% to 95% (non-condensing) |
| Connections | KNX-TP1 bus connector (Ø 0.8 mm) |
| Sensor Range |
|
| Materials | PC/ABS (flame-retardant and halogen-free) |
Installation
The Zennio Tecla XL can be installed in either portrait or landscape orientation in standard back boxes. No external power supply is required thanks to the integrated KNX-BCU.
Important Notes
- The frame is not included and must be purchased separately.
- Supports KNX Data Secure for secure communication.
Why Choose the Zennio Tecla XL?
The Zennio Tecla XL offers a unique blend of style, functionality, and reliability. With 4 touch zones, customizable icons, and integrated sensors, it is the perfect choice for smart building systems.
