Tecla 1 touch sensor 1-fold with thermostat
€136,55 Incl. tax €175,07 Incl. tax. Out of stock, but available
Specifications
Information

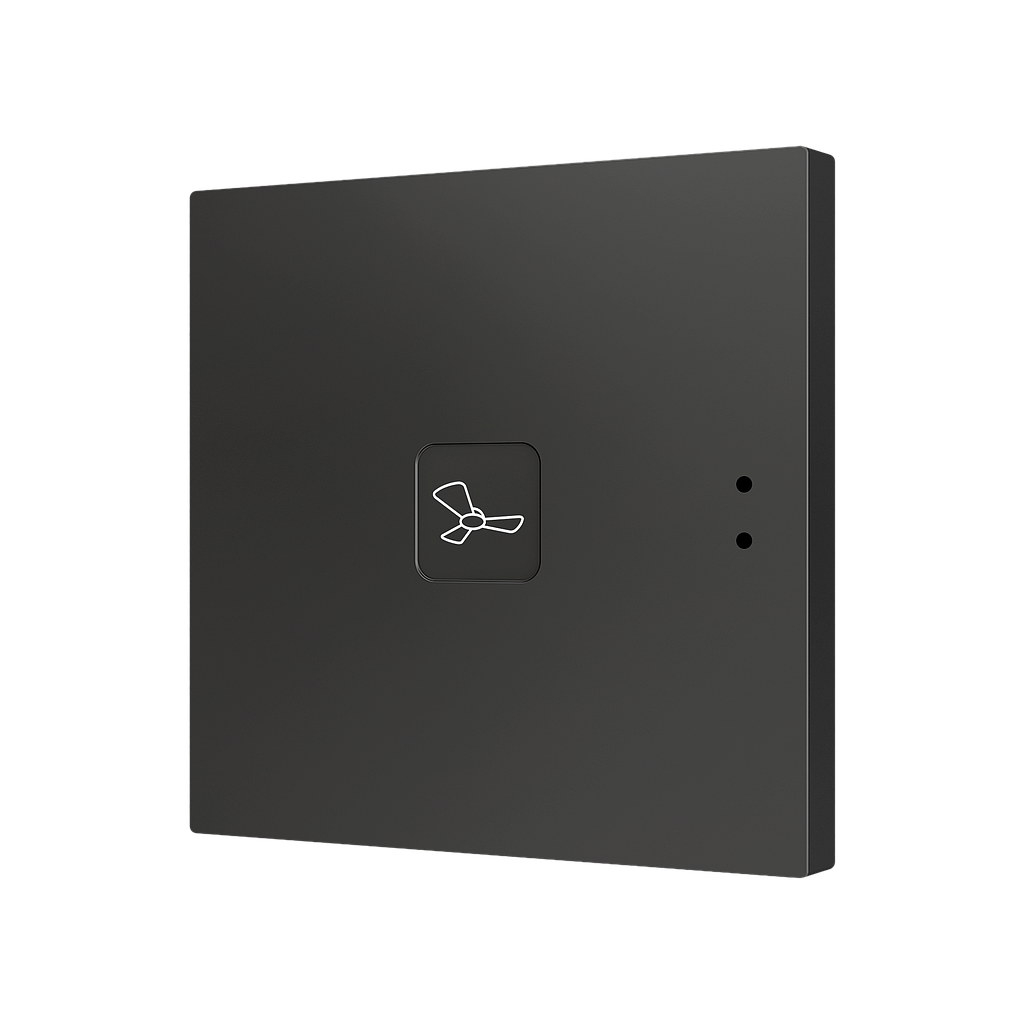

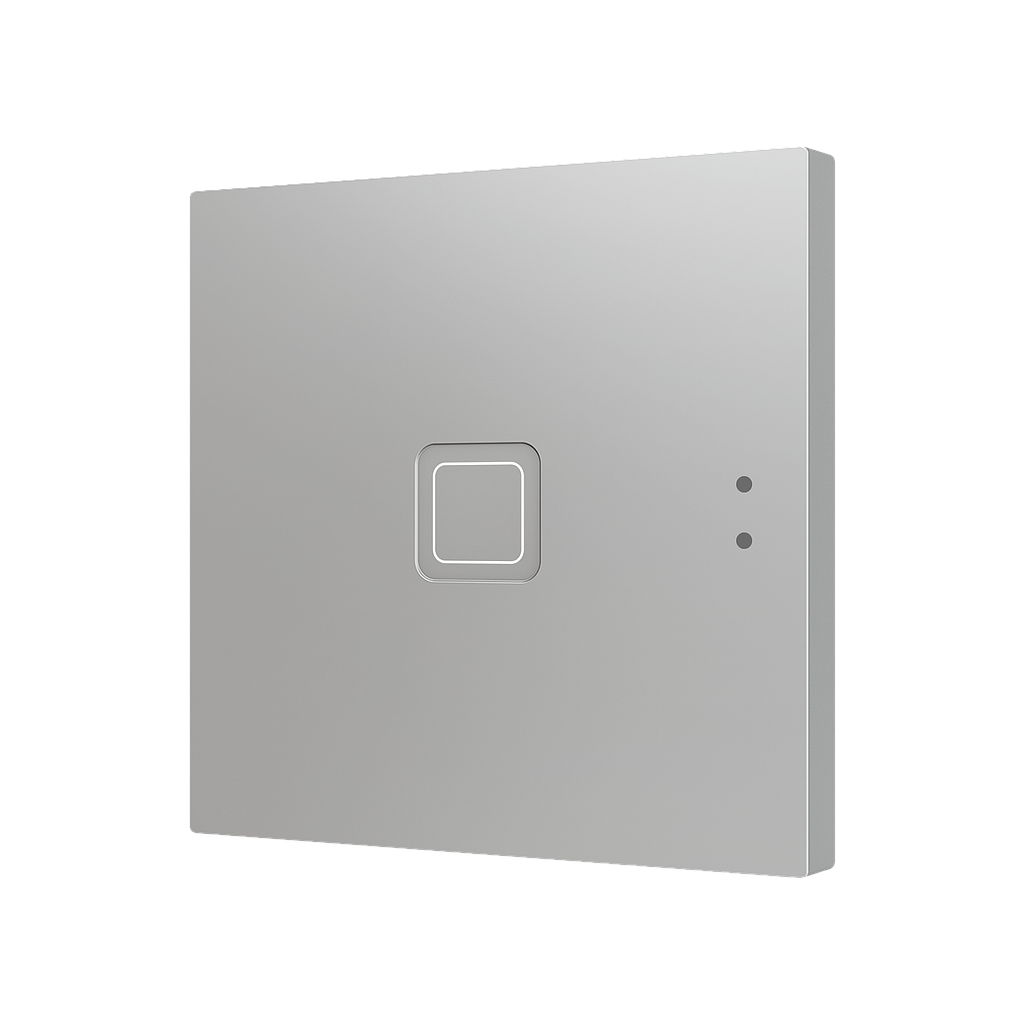

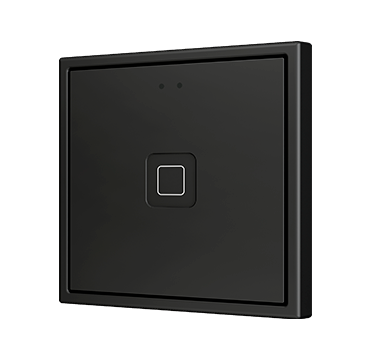

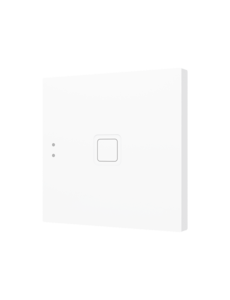

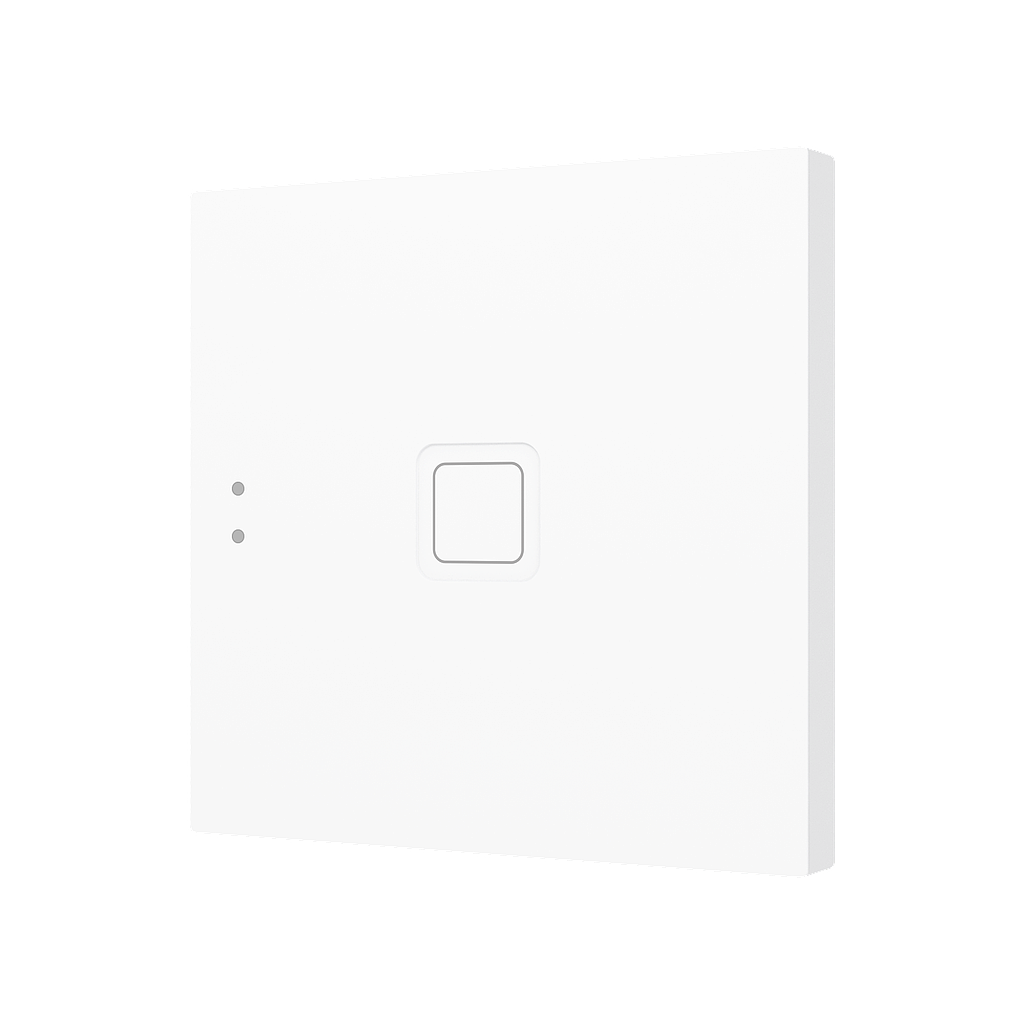

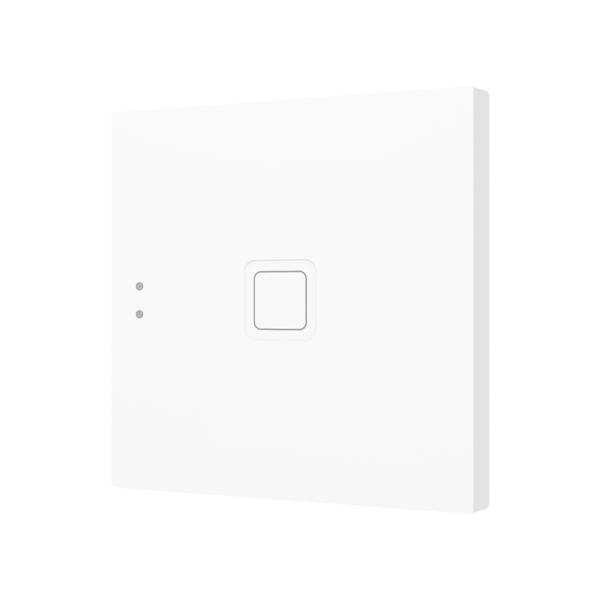

Zennio Tecla 1 Touch Sensor Push Button - 1-fold with Thermostat
The Zennio Tecla 1 is a high-quality capacitive touch sensor designed for modern and intelligent home and building automation systems. This model features a single touch area and is equipped with an integrated thermostat, customizable icons, and backlighting. The article number for this model is ZVIT1.
Main Features:
- 1 capacitive touch button with backlighting.
- Customizable icons with adjustable brightness, adapting to ambient light conditions.
- Integrated thermostat and internal temperature sensor with a measurement range of -30 °C to +90 °C.
- 2 configurable analog/digital inputs suitable for sensors, buttons, temperature probes, or motion detectors.
- Advanced features such as proximity and light sensors.
- Data storage in case of power failure and automatic recovery upon KNX bus restart.
Technical Specifications:
- Dimensions: 82.5 x 82.5 x 33.1 mm (protruding part: 9.5 mm).
- Power Supply: KNX 29 VDC (no external power required).
- Max Power Consumption: 6.6 mA at 29 VDC (191.4 mW).
- Protection Class: IP20, suitable for clean environments.
- Operating Temperature: 0 °C to +55 °C.
- Storage Temperature: -20 °C to +55 °C.
- Compatibility: Integrated KNX BCU (TP1-256).
- Material: Front: Polycarbonate (PC), Back: PC+ABS, halogen-free.
Installation and Use:
The Zennio Tecla 1 can be easily installed via flush mounting in a standard electrical back box. No minimum clearances are required, simplifying installation. The device provides visual and audible feedback for touch actions, ensuring intuitive operation.
Important Note:
The accuracy of the internal temperature sensor may slightly decrease if the LED backlighting is permanently activated.
Color Options:
- White (RAL 9016)
- Silver (RAL 9006)
- Anthracite (RAL 9004)
Choose the Zennio Tecla 1 for a stylish, efficient, and intelligent solution for your home or building automation needs.
