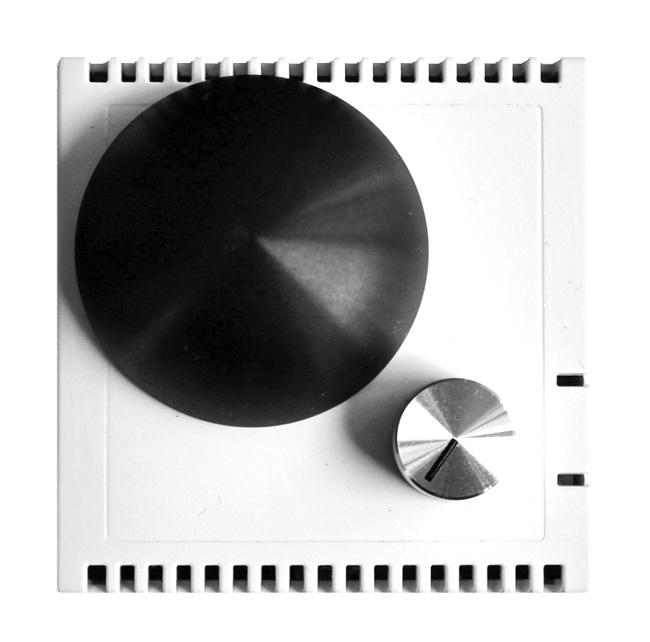

SK30-TC-RSTF-R Temperature sensor with rotary knob and radiation probe IP20
€225,59 Incl. tax €301,80 Incl. tax. Out of stock, but available
Specifications
Information
SK30-TC-RSTF-R
Temperature Sensor with Rotary Knob and Radiation Sensor
White (30516351) & Anthracite (30516352)
The SK30-TC-RSTF-R KNX temperature sensor from Arcus-EDS is a smart and reliable solution for measuring and controlling room temperature. This sensor is available in two color variants:
- White – Art. no. 30516351 – EAN 0642125991292
- Anthracite – Art. no. 30516352 – EAN 642125990547
Both versions feature a rotary knob for local setpoint adjustment and an integrated radiation sensor for accurate detection of thermal radiation within the room. With internal temperature measurement, logical functions, and support for multiple operating modes, this sensor is ideal for heating, cooling, and ventilation applications in KNX systems.
Important note: The integrated radiation sensor detects thermal radiation from objects such as people or walls. This makes the sensor highly suitable for indoor environments with high comfort requirements. Not intended for outdoor or humid environments (IP20).
Technical Specifications
- Measured value: Temperature
- Measurement range: -5 °C to +60 °C
- Resolution: 0.02 °C
- Accuracy: ± 0.3 °C
- Control: Integrated PI controller for heating and cooling
- Setpoint adjustment: via rotary knob (±5 °C) or via KNX objects
- Operating voltage: KNX bus 21…32 VDC
- Power consumption: approx. 240 mW at 24 VDC
- Binary I/Os: 2 floating inputs/outputs
- Controller output: 0…100% or PWM signal for thermal actuators
- Functions: Min/max memory, heat/frost alarm, fan control, valve rinsing
- Logic functions: 4 logic blocks for linking internal/external signals
- LED indicators: Status of temperature control
- Bus coupler: Integrated
- Protection class: IP20 (indoor use only)
- Ambient temperature: -5 °C to +60 °C (operation), -25 °C to +80 °C (storage)
- Relative humidity: 0…100% r.h. (non-condensing)
- Dimensions: 55 mm (fits standard switch frames)
- Mounting: Flush mounting in standard wall box
- Color variants: White (30516351), Anthracite (30516352)
