Current Transformer – 600 A

Name: Zennio Current Transformer – 600 A
Brand: Zennio
Price: 28.86 EUR
Availability: OutOfStock
Rating: 0 (0 reviews)

0 Review(s)

€28,86 Excl. tax €37,00 Excl. tax
€34,92 Incl. tax €44,76 Incl. tax. Out of stock, but available

Unit price: €28,86 / Piece

Accessory for KES Plus to measure currents up to 600 A. Provides accurate energy data with CE conformity. Compact design (92x66x48.5mm), Ø36mm cable. Read more

Specifications

Brand:

Zennio

Article number:

9900045

EAN:

8411080797407

Availability:

Out of stock, but available

Delivery time:

Will be shipped within approximately 8 working days.

Due to the holidays, orders may be delayed and pickup is not possible.

Information

Datasheet

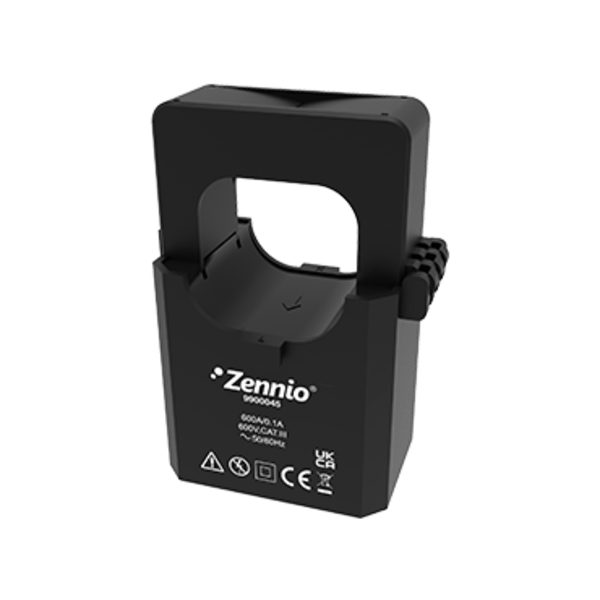

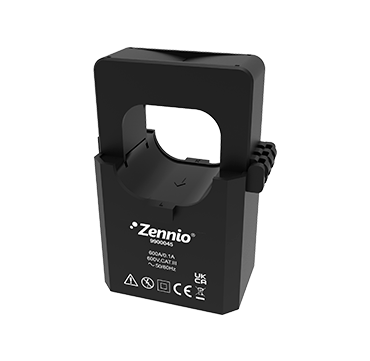

Zennio Current Transformer – 600 A (Ref.: 9900045)

The Zennio current transformer is an essential accessory for the KES Plus energy meter, designed to accurately measure currents up to 600 A. This device calculates instantaneous power and energy consumption, offering detailed insights into energy management.

Features:

Compatible with KES Plus from version 1.3 onwards.
Current measurement range: 0.1 to 600 A.
Current ratio: 600A/100mA.
Dimensions: 92 x 66 x 48.5 mm.
Maximum cable diameter: Ø36 mm.
Operating temperature: -25°C to +60°C.
Storage temperature: -30°C to +90°C.
Accuracy: 1% (at RL ≤ 10Ω).
Linearity: ≤0.2% (at RL ≤ 10Ω).
Phase error at rated current: 1°.
Dielectric strength: 3.5KV.
Maximum secondary side cable section: 2.5mm² (IEC) / 12AWG (UL).
Maximum secondary side cable length: 1.8 m.
Weight: 310 g.
Transformer ratio: Np:Ns=1:600.

Installation Instructions:

Open the transformer clamp and place the live cable inside, paying attention to the orientation.
Close the clamp around the cable and lock it using the side clip.
The transformer terminals must be correctly connected to the KES Plus, observing polarity, before closing the clamp.

Safety:

Installation must be performed by qualified professionals according to applicable laws and regulations.
Do not connect mains voltage or any external voltage to the signal cables.
Keep the device away from water and do not cover it during operation.

Compliance: This device complies with CE directives.
