KNX Cable | Cable for KNX Installations 2x2x0.8mm² 300 meters
€287,72 Excl. tax
€368,87 Excl. tax
€348,14 Incl. tax €446,33 Incl. tax. Out of stock, but available
€348,14 Incl. tax €446,33 Incl. tax. Out of stock, but available

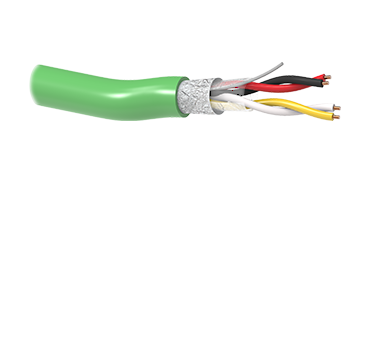

Halogen-free KNX cable with 4 wires (red, black, yellow, white). Suitable for fixed installations up to 300 V. Green cover, flame retardant, CE compliant. Read more
Specifications
Brand:
Zennio
Article number:
9900014
EAN:
8411080797230
Availability:
Out of stock, but available
Delivery time:
Will be shipped within approximately 8 working days.
Information
KNX Cable | Cable for KNX Installations
2x2x0.8mm² – 300 meters
The KNX cable is specifically designed for KNX installations and meets the highest safety and quality standards. This halogen-free cable with a green cover is flame retardant and suitable for fixed installations up to 300 V.
Main Features
- 4 wires: red, black, yellow, white
- Halogen-free cover (Polyolefin Z1)
- Operating voltage: 300 V
- Flame retardant and no fire propagation
- Suitable for fixed indoor installations
- Dimensions: 2x2x0.8mm²
- Temperature range: -15°C to 70°C
Technical Specifications
| Conductor | Solid copper core, diameter 0.8 mm |
|---|---|
| Insulation | HDPE, diameter 1.6 mm |
| Shielding | Polyester band + aluminum foil |
| Length | 300 meters |
| Weight | 77 kg/km |
Installation Instructions
This cable is suitable for fixed indoor installations. It is not suitable for underground or exposed outdoor installations. A minimum bending radius of 10x the outer diameter is recommended.
