WEINZIERL 5354 RGB, RGBW and Tunable White dimmer KNX IO 536 CC (4D)
€123,00 Excl. tax
€162,30 Excl. tax
€148,83 Incl. tax €196,38 Incl. tax. Out of stock, but available
€148,83 Incl. tax €196,38 Incl. tax. Out of stock, but available
Compact dimmer for RGB, RGBW, and Tunable White LEDs with 4 outputs (500 mA per channel). Supports scenes, sequences, and time logic. Easy KNX operation. Read more
Specifications
Brand:
Weinzierl
Article number:
5354
EAN:
4260262773548
Availability:
Out of stock, but available
Delivery time:
Will be shipped within approximately 8 working days.
Information

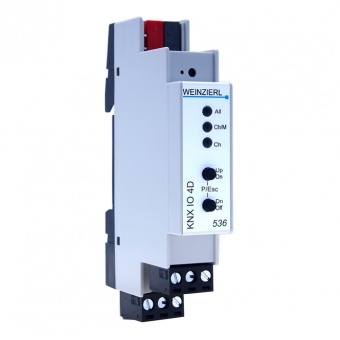

Weinzierl KNX IO 536 CC (4D) - RGB, RGBW and Tunable White Dimmer (art.no. 5354)
The KNX IO 536 CC (4D) is a compact and versatile dimmer designed for RGB, RGBW, and Tunable White LEDs. This device offers 4 constant current outputs, each with a maximum of 500 mA, supporting both simple and complex lighting configurations. Perfect for LED panels, strips, and other lighting applications.
Key Features:
- 4 dimmer outputs with constant current, up to 500 mA per channel
- Supports RGB, RGBW, and Tunable White configurations
- Can be used as 4 independent dimming channels
- Advanced functions such as scenes, sequencers, stairway lighting, and sleep mode
- Local control via 2 buttons and status indication via 3 multicolored LEDs
- 16 integrated logic and time control functions
Technical Specifications:
- Housing: Plastic, DIN-rail mounting, width 1TE (18 mm)
- Power Supply: 12-48V DC (maximum output voltage < supply voltage)
- Output Current: 500 mA per channel (channels can be bundled)
- Power: Maximum 96 W total
- KNX Consumption: 3 mA via KNX bus
- Operating Temperature: -5°C to +45°C
- Storage Temperature: -25°C to +70°C
- Humidity: 5% to 93% (non-condensing)
- Protection Class: IP20
Control and Connection Details:
- Control: 2 buttons for local operation
- Status Indication: 3 multicolored LEDs, KNX programming LED (red)
- KNX Connection: Screw terminals (red/black)
- Outputs:
- Dimmer Channel 1: Plug-in 3-pole screw terminal
- Dimmer Channels 2/3/4: Plug-in 3-pole screw terminals
- Supports cables with a cross-section of 1.5 to 2.5 mm²
Electrical Safety:
- Short-circuit protection (electronic and irreversible)
- Over-temperature protection (electronic)
- CE compliance according to EMC directives
- Standards: EN 63044, EN 61000, EN 55015, EN 61547
Applications:
- RGB, RGBW, and Tunable White LED configurations
- Independent dimming channels for flexible light management
- Ideal for residential, commercial, and industrial applications
Note: This product is designed for use in dry indoor environments and requires installation on a DIN rail. Optimal performance when paired with KNX programming software (ETS 5 or higher).
