WEINZIERL 5225 KNX IO 520 (1Shutter2Inputs)
€80,56 Excl. tax
€106,30 Excl. tax
€97,48 Incl. tax €128,62 Incl. tax. Out of stock, but available
€97,48 Incl. tax €128,62 Incl. tax. Out of stock, but available
This compact shutter actuator with two binary inputs controls blinds, shutters, and drives. Easy operation via KNX and conventional switches from 12 to 230 V. Read more
Specifications
Brand:
Weinzierl
Article number:
5225
EAN:
4260262772251
Availability:
Out of stock, but available
Delivery time:
Will be shipped within approximately 8 working days.
Information
Weinzierl KNX IO 520 (1J2I) - Article No. 5225
Product Description

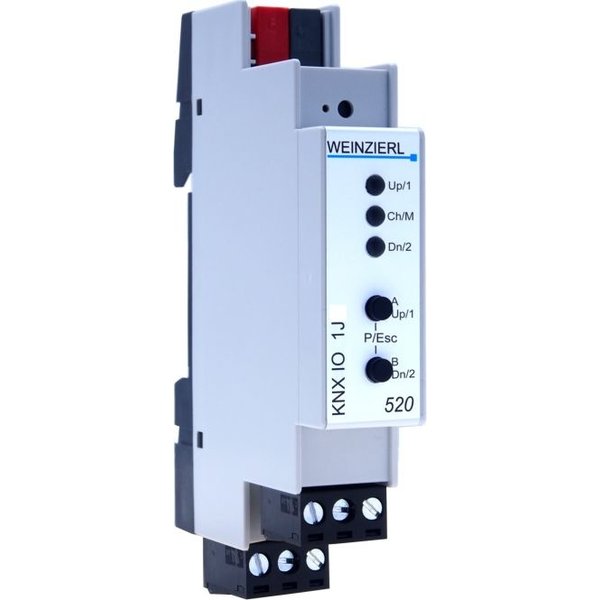

The KNX IO 520 (1J2I) is a compact shutter actuator with two additional binary inputs, ideal for controlling blinds, shutters, or drives for windows and awnings. The relay contacts are electrically locked, and the binary inputs can be controlled with conventional switches with a voltage range from 12 to 230 V. In standard configuration, the binary inputs control the actuator channel, but they can be used independently by configuring with ETS® software.
Main Features
- 2 binary inputs for connection to switches with 12-230 V voltage
- Electrically locked relay contacts for safe operation
- 2 local control buttons and 3 multi-color LEDs for status indication
- ETS® configuration support for flexible usage
- 16 independent logic or timer functions for extended functionality
Technical Specifications
Mechanical Specifications
| Housing Material: | Plastic |
|---|---|
| Mounting: | DIN rail, width 1 TE |
| Weight: | approx. 65 g |
Control and Display Elements
| Control Buttons: | 2 buttons for local control with menu |
|---|---|
| LED Indicators: | 3 multi-color LEDs for status display |
| Programming Button: | Recessed KNX programming button |
KNX Specifications
| KNX Device Model: | System B |
|---|---|
| Compatibility: | ETS 4.2 or higher |
Connections
| KNX Bus: | Red/black terminal for KNX bus connection |
|---|---|
| Shutter Output: | Pluggable screw terminal (3-pole) for shutter |
| Binary Inputs: | Pluggable screw terminal (3-pole) for binary input channels 1 and 2 |
Output (Shutter Actuator)
| Relay Type: | 230V~, 8A |
|---|---|
| Inductive Load (cosΦ = 0.4): | 230V~, 3.5A |
| Electrical Locking: | Yes |
Inputs (Binary Inputs)
| Voltage Range: | 12 to 230 V AC/DC |
|---|---|
| Current Consumption per Input: | < 1 mA |
| Control Type: | Control via conventional switches |
Note: This device includes 16 independent logic or timer functions, making it versatile for a wide range of automation applications. By using the ETS® software, the binary inputs can be configured as needed, allowing them to function independently of the shutter actuator.
