WEINZIERL 5322 Multi IO Extension Shutter 592
€45,29 Incl. tax €59,77 Incl. tax. Out of stock, but available
Specifications
Information

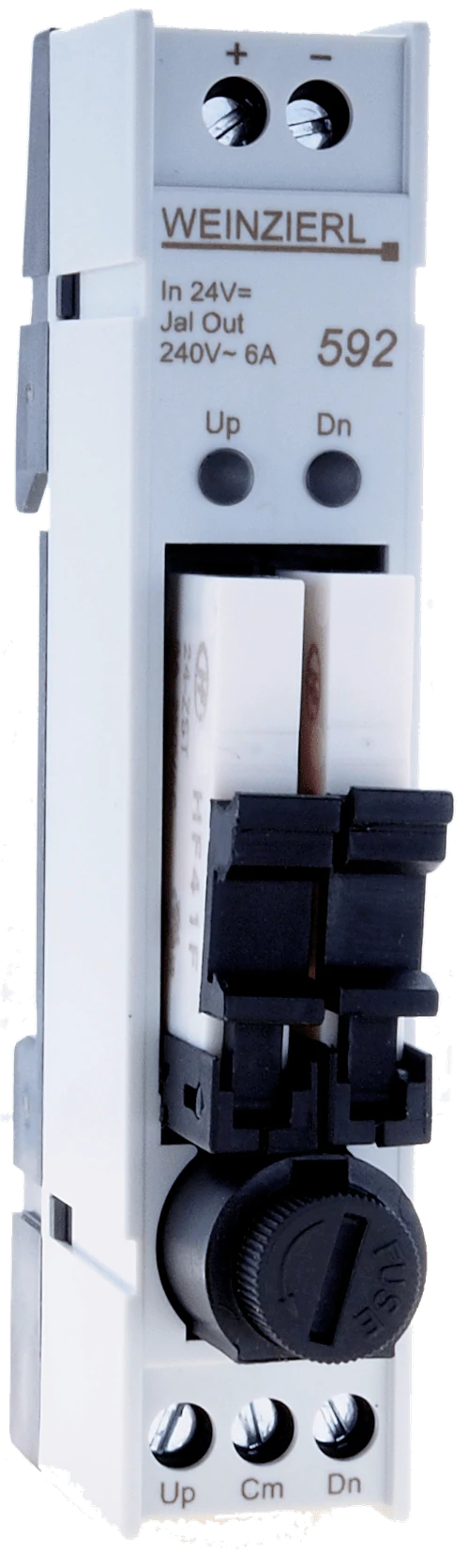

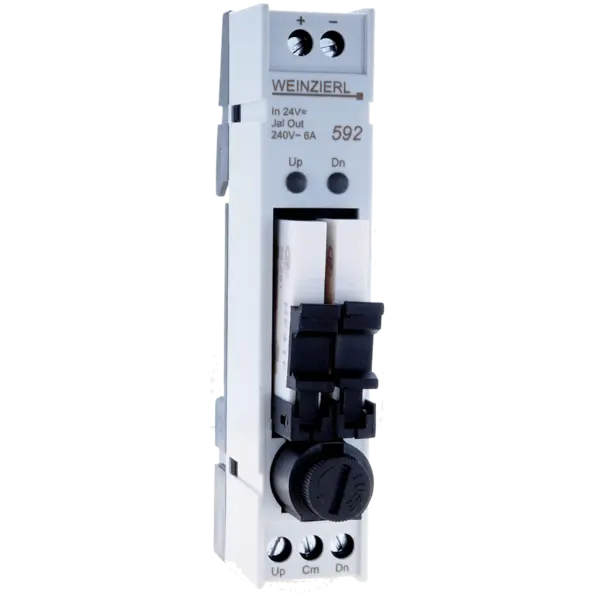

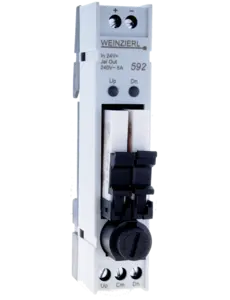

WEINZIERL Multi IO Extension Shutter 592, Article No: 5322
The WEINZIERL Multi IO Extension Shutter 592 is specifically designed for precise and secure control of blinds and shutters in KNX installations. This extension unit features dual relay outputs and connects to a single output of a KNX TP Multi IO 570 or KNX IP Multi IO 580. The relay direction control is managed automatically by the KNX Multi IO system via an interruption of the holding current, ensuring safe and efficient operation.
Technical Specifications
- Housing Material: Durable plastic
- Mounting: DIN rail, 1 module width (1 TE)
- Dimensions: 18 mm (width) x 90 mm (height) x 60 mm (depth)
- Weight: Approx. 50 grams
- Protection Class: IP20 (suitable for indoor use only)
- Operating Temperature: 0 °C to +45 °C
Display and Safety Features
- LED Indicator: Green LED for directional indication, enhancing user-friendliness
- Fuse: Fine fuse 5×20 mm, 10 A, replaceable, protects against overcurrent and extends device lifespan
- Interlocking: Electromechanical interlocking of relay outputs prevents simultaneous switching, protecting connected motors
Connections and Wiring
- Signal Input: 24 V⎓ screw terminal (2-pin) for easy integration into KNX systems
- Output: 230 V∿ screw terminal (3-pin), suitable for loads up to 6 A
Electrical Specifications
- Input Voltage (Signal): 24 V⎓
- Output Voltage: 230 V∿
- Relay Switching Capacity: up to 6 A, maximum 250 V∿
- Relay Type: 250 V∿ / 6 A, ideal for controlling blinds and shutter motors
- Compatibility: Designed for use with KNX TP Multi IO 570 or KNX IP Multi IO 580 for seamless integration and control
Important Notes
Note: The switching load of the relay may vary depending on the load type (e.g., capacitive or inductive) and can reduce switching performance. An integrated fuse is provided to ensure optimal protection of connected devices.
Application Areas
The Multi IO Extension Shutter 592 is ideal for use in building automation systems, particularly for controlling blinds and shutters with KNX integration, ensuring both functionality and safety in commercial and residential settings.
