WEINZIERL 5321 Multi IO Extension Switch 590

29,85 Excl. tax €39,40 Excl. tax
€36,12 Incl. tax 47,67 Incl. tax.
Out of stock, but available
Unit price: €29,85 / Piece
The Multi IO Extension Switch 590 is an energy-efficient relay solution with integrated protection, using a bistable relay that saves up to 95% power. Read more

Specifications

Brand:
Weinzierl
Article number:
5321
EAN:
4260262773210
Availability:
Out of stock, but available
Delivery time:
Will be shipped within approximately 8 working days.

Information

Datasheet

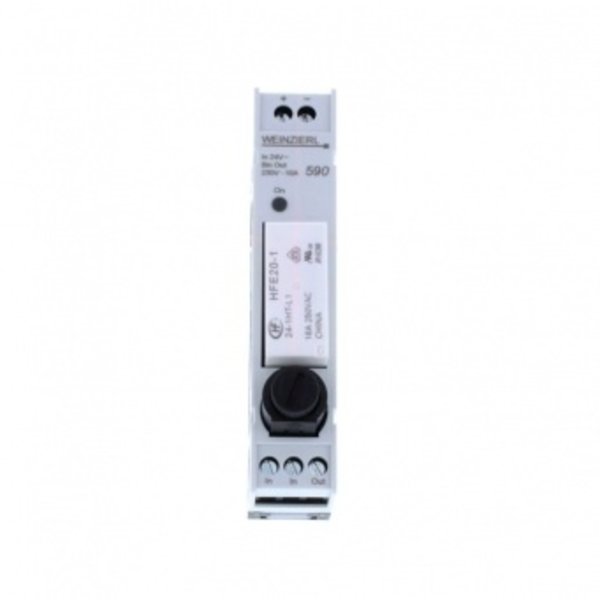

WEINZIERL Multi IO Extension Switch 590 – Article No. 5321

The Multi IO Extension Switch 590 is an advanced, energy-efficient solution for relay control in building automation. Utilizing a bistable relay, this switch reduces power consumption by up to 95%, while an integrated fuse protects valuable equipment.

Applications and Benefits

The Multi IO Extension Switch 590 is ideal as a replacement for standard coupling relays, providing additional energy savings. By using a bistable relay, it enhances both performance and durability, particularly useful for applications with high inrush currents, such as LED lighting.

Technical Specifications

  • Housing: Plastic, DIN-rail mounted (1 module width)
  • Indicator and Fuse: Green LED for relay status, 5×20 mm fuse, 10 A
  • Connections: 2-pole screw terminal for 24 V⎓ input, 3-pole screw terminal for 230 V∿ output
  • Input: 24 V⎓ signal voltage, current draw < 2 mA
  • Output: Bistable relay, 250 V∿ / 16 A, fuse 10 A

Extended Technical Specifications

  • Housing:
    • Material: Plastic
    • Mounting: DIN-rail mounted, 1 module width
    • Weight: approx. 50 grams
  • Indicator and Protection:
    • LED Indicator: Green LED for relay status
    • Internal Protection: 5×20 mm fuse, rated at 10 A to protect connected devices
  • Connections:
    • Input:
      • 2-pole screw terminal for 24 V⎓ input
      • Signal Voltage: 24 V⎓
      • Current Draw on Activation: < 2 mA
    • Output:
      • 3-pole screw terminal for 230 V∿ output
      • Bistable relay for energy efficiency
  • Input:
    • Signal Voltage: 24 V⎓ (DC)
    • Function: Control signal to switch the relay
    • Current Draw: < 2 mA for low standby power consumption
  • Output:
    • Relay Type: Bistable relay, significantly reduces power consumption
    • Switching Capacity: Max 230 V∿ / 16 A (AC) with resistive load
    • Suitable Load Types: Capacitive and inductive loads (note: switching capacity may be reduced depending on load type)
    • Protection Diode: Integrated for increased reliability with high inrush currents
  • Energy Efficiency:
    • Power Savings: Up to 95% less power consumption compared to standard monostable relays due to bistable design
  • Compatible Replacement Relays:
    • Standard Relay:
      • Article Number: 5347
      • Contact Material: AgSnO2
      • Suitable for general applications
    • Special Relay for High Inrush Currents:
      • Article Number: 5348
      • Contact Material: Tungsten/AgSnO2
      • Suitable for high inrush currents, such as LED lighting
    • Manual Operation Relay:
      • Article Number: 5349
      • Contact Material: AgSnO2
      • Suitable for manual operation or switching
  • Important Note:

    The Multi IO Extension Switch 590 includes an integrated fuse to protect connected equipment. Depending on the load type (capacitive or inductive), switching capacity may be reduced.
