WEINZIERL 5313 LED dimmer | 1-ch., 1 switch outp. | KNX IO 532 (1D1O)
€104,28 Excl. tax
€137,60 Excl. tax
€126,18 Incl. tax €166,50 Incl. tax. Out of stock, but available
€126,18 Incl. tax €166,50 Incl. tax. Out of stock, but available
Compact KNX dimmer and switch module with 1 PWM output for LED lighting and a bistable relay. Ideal for dimmable LED panels or strips, with features like scenes, timers, and heating control. Read more
Specifications
Brand:
Weinzierl
Article number:
5313
EAN:
4260262773135
Availability:
Out of stock, but available
Delivery time:
Will be shipped within approximately 8 working days.
Information

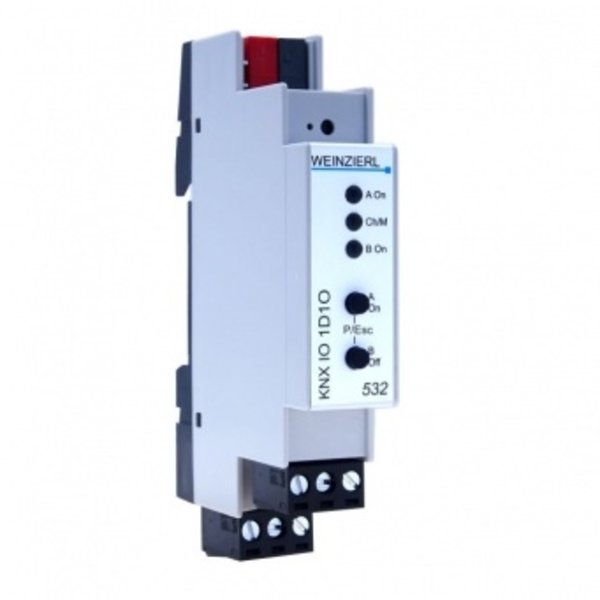

KNX IO 532 (1D1O) art.nr. 5313: Dimmer and Switch Module
The KNX IO 532 (1D1O) is a compact module with a PWM output for dimming LED lighting and a bistable relay output for switching. This versatile device is suitable for LED strips, panels, and heating valves, offering advanced features like scenes, timers, and staircase lighting.
Key Features:
- 1 PWM output (frequency: 480 Hz / 600 Hz) for dimmable LED lighting
- 1 bistable relay output: 230 V∿, max. 10 A
- Supports automatic control, sleep mode, scenes, and logic functions
- Local control via 2 buttons and status indication with 3 multicolor LEDs
- 16 independent logic and timer functions
- Configurable staircase lighting and on/off delay
Technical Specifications:
Mechanical Specifications:
- Housing material: plastic
- DIN rail mount (1 TE, 18 mm wide)
- Weight: approx. 60 g
- Protection class: IP20
Electrical Specifications:
- Supply voltage for PWM output: 12-24 V⎓
- Maximum PWM output load: 6 A
- Maximum PWM output power: 144 W
- Relay output: 230 V∿ / 10 A, bistable
- KNX current consumption: approx. 3 mA
- Compatible with ETS 4.2 or higher
Environmental Specifications:
- Operating temperature: -5 °C to +45 °C
- Storage temperature: -25 °C to +70 °C
- Relative humidity: 5% to 93% (non-condensing)
Connections:
- KNX bus connection: red/black terminal
- 3-pin plug-in screw terminals for PWM output
- 3-pin plug-in screw terminals for relay output
- Cable cross-section: 1.5 - 2.5 mm²
Note: The switching capacity of the relay may decrease depending on the type of load (inductive or capacitive).
